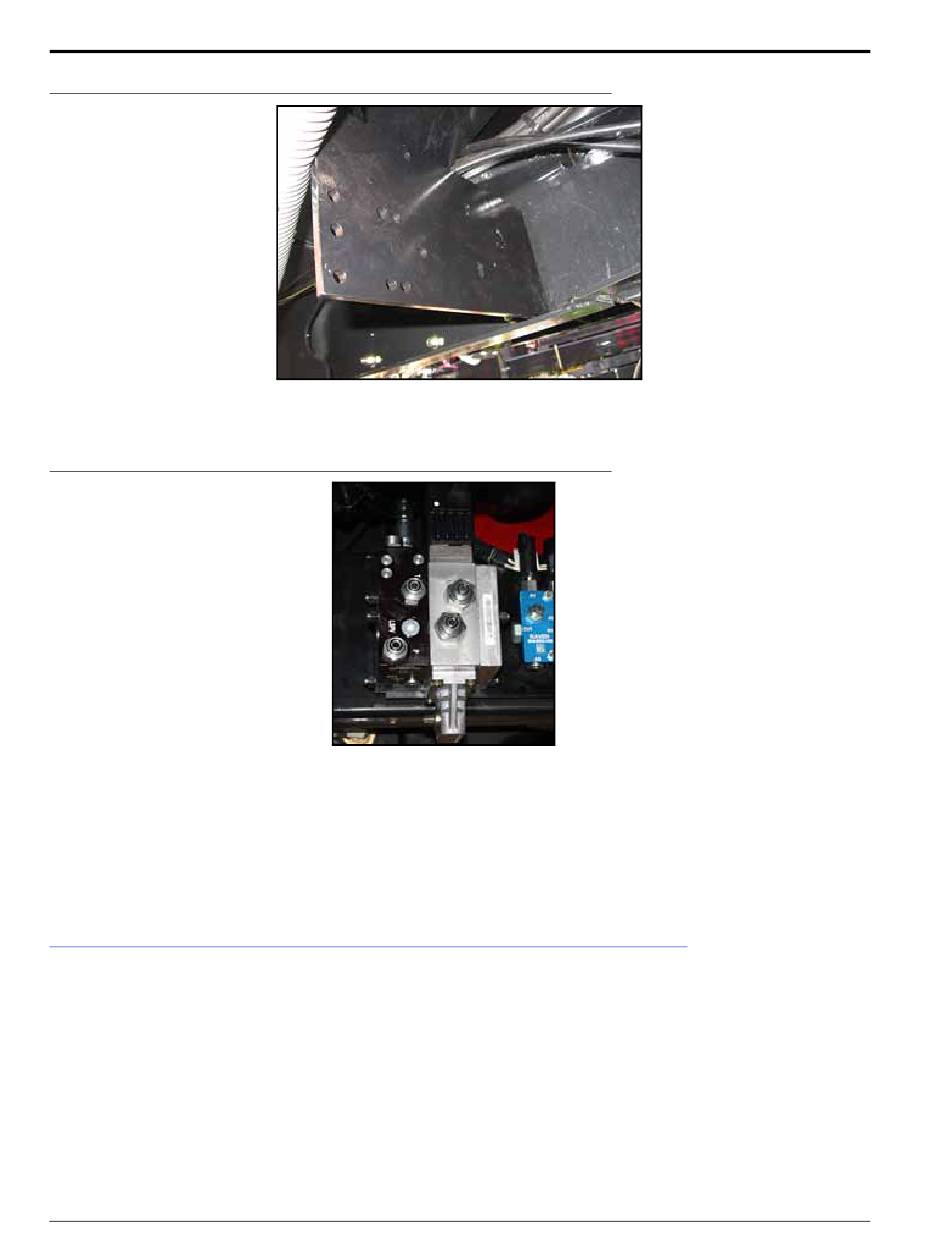

FIGURE 4. Mounting Bracket Installed on Left Frame Rail (Beside Radar)
5. Using the machine's bolts, secure the valve mounting bracket (P/N 107-0171-705) to the radar bracket.
FIGURE 5. SmarTrax Valve and Flow Switch Installed
6. Install the SmarTrax valve (P/N 334-0008-088) on the valve mounting bracket using four 5/16"-18 x 7/8" hex
bolts (P/N 311-0052-104) and four 5/16" split lock washers (P/N 313-1000-019).
7. Install the flow switch (P/N 334-0003-085) on the valve mounting bracket using two 1/4"-20 screws (P/N 311-
0050-109), two 1/4" flat washers (P/N 313-2300-009), two 1/4" split lock washers (P/N 313-1000-016), and two 1/
4"-20 hex nuts (P/N 312-1001-074).
INSTALL THE LEFT AND RIGHT STEERING HOSES
1. Locate and disconnect the machine's left steering hose from the steering cylinder on the right side of the
sprayer chassis.
NOTE:
The left steering hose is connected to the fitting located closest to the center of the machine.
16
SmarTrax, Case IH Patriot 2250, Non-Steer Ready, MY17 and Newer Installation Manual
