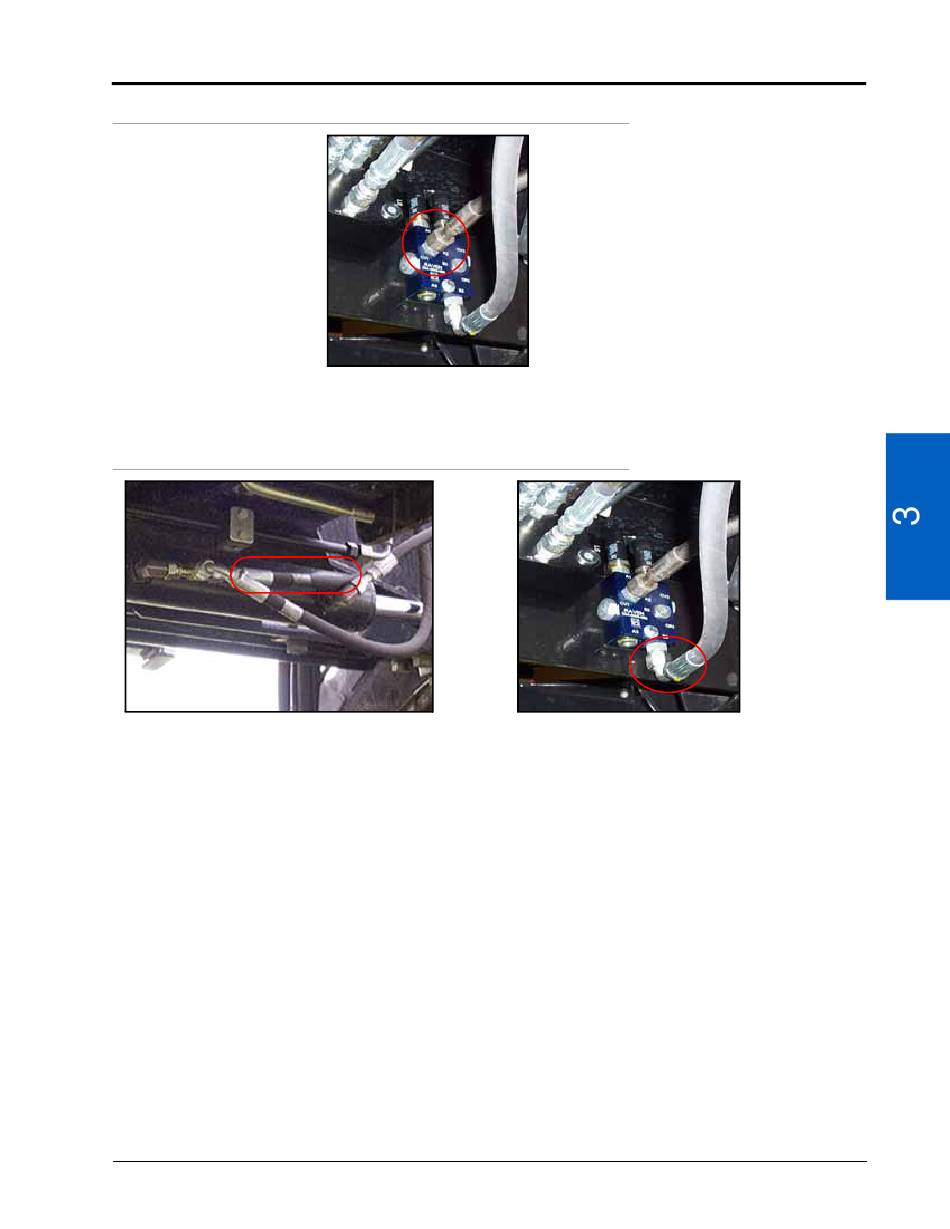

FIGURE 6. Machine's Left Steering Hose Installed on Flow Switch
2. Route and connect the left steering hose to the fitting installed in Port A2 of the installed flow switch (P/N 334-
0003-085).
FIGURE 7. Left Steering Hose Installed
3. Install a -6 ORFS M/M/F swivel run tee adapter fitting (P/N 333-0012-069) on the open left steering cylinder
port.
4. Install the straight end of the supplied hydraulic hose (P/N 214-1000-884) on the opposite end of the installed
tee fitting.
5. Connect the 90° end of the installed hydraulic hose to the fitting in Port B3 of the installed flow switch.
Manual No. 016-5032-037 Rev. A
HYDRAULIC SYSTEM INSTALLATION
17
