Brace Sides

Place all the parts for bracing the sides on a level surface.
Make sure the pieces are in the correct positions before assembling.
!
Please carefully follow the order of assembly to ensure an easy installation.
Wear proper safety gear including shoes, gloves and goggles.

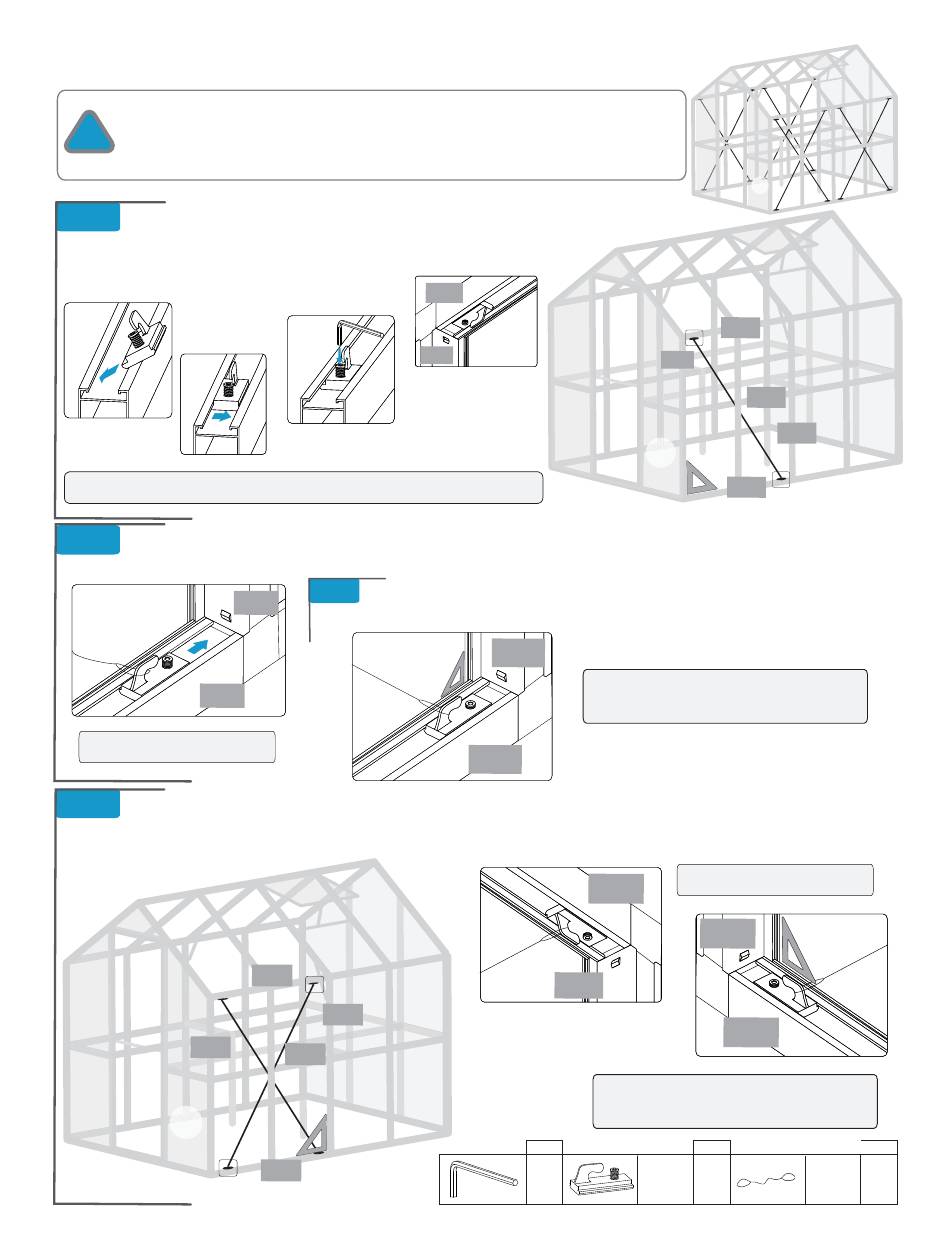

10.1A
From the inside of the greenhouse, insert long side of cable connector
S06 into profile channel G07B with hook facing the front. Slide
connector to other side of channel. Use hex key to
securely tighten and hold in place.
IMPORTANT: Make sure all corners are squared at 90 degrees.
10.1B
Attach one side of long cable S07 to hook and lace behind profile G14B. Attach other side of cable to
a second S06 cable connector. With hook facing the back, insert connector into profile channel G01C.
G01C
VIEWS FROM INSIDE.
10.2
Repeat step 10.1 inserting cable connectors S06 into profile G07B with hook facing the back and into
profile G01C with hook facing the front. Cable rests behind profile G14B. Slide connector until profile
corners are square and cable is tight. Securely tighten second connector to hold in place.
G02B
www.stcny.com
10.1C
Push towards center until profile corners are square and cable is tight.
G03A
Use hex key to securely tighten and hold in place.
G07B
G03A
G14B
G01C
G07B
G02B
G03A
IMPORTANT: Make sure all corners
are squared at 90 degrees.
G01C
G07B
G03A
Hex Key Cable Connector
QTY
1
42 of 50
G07B
G02B
G14B
G03A
G01C
VIEWS FROM INSIDE.
G02B
G01C
IMPORTANT: Make sure all corners
are squared at 90 degrees.
Cable
QTY
#S06
4
QTY
#S07 2
