Panel Features

Front Panel and Enclosure Features

2
n
This section describes the TLP Pro touchpanels:
Front Panel and Enclosure Features
•
Base Features
•

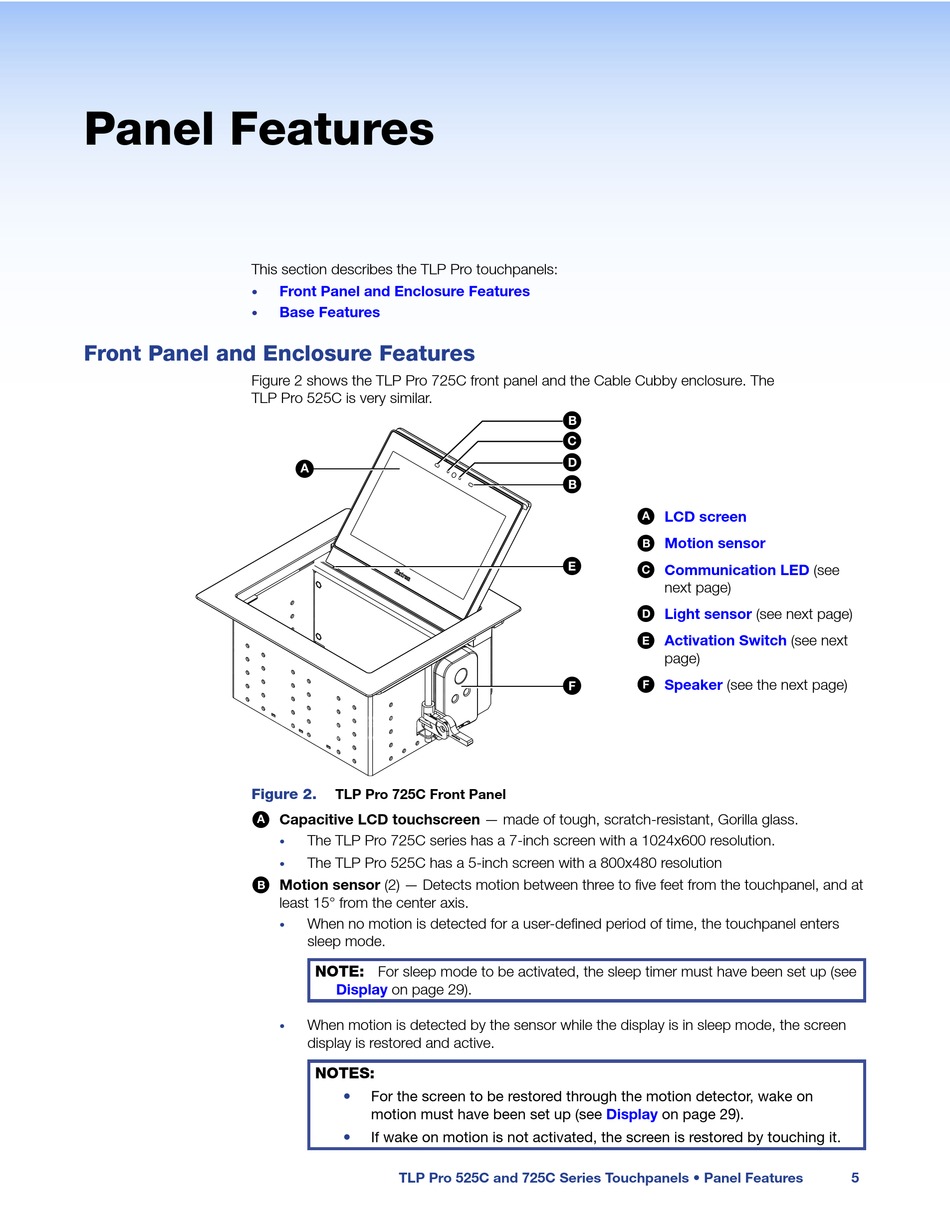

Figure 2 shows the TLP Pro 725C front panel and the Cable Cubby enclosure. The
TLP Pro 525C is very similar.
A A A
Figure 2.
TLP Pro 725C Front Panel
Capacitive LCD touchscreen — made of tough, scratch-resistant, Gorilla glass.
A
The TLP Pro 725C series has a 7-inch screen with a 1024x600 resolution.
•
The TLP Pro 525C has a 5-inch screen with a 800x480 resolution
•
B Motion sensor (2) — Detects motion between three to five feet from the touchpanel, and at
least 15° from the center axis.
When no motion is detected for a user-defined period of time, the touchpanel enters
•
sleep mode.
NOTE: For sleep mode to be activated, the sleep timer must have been set up (see
Display on page 29).
When motion is detected by the sensor while the display is in sleep mode, the screen
•
display is restored and active.
NOTES:
•
For the screen to be restored through the motion detector, wake on
motion must have been set up (see
•
If wake on motion is not activated, the screen is restored by touching it.
TLP Pro 525C and 725C Series Touchpanels • Panel Features
B B B
C C C
D D D
B B B
LCD screen
A
B Motion sensor
E E E
Communication LED
C
next page)
D Light sensor
Activation Switch
E
page)
Speaker
F (see the next page)
F F F
Display on page 29).
(see
(see next page)
(see next
5
