Application Diagram

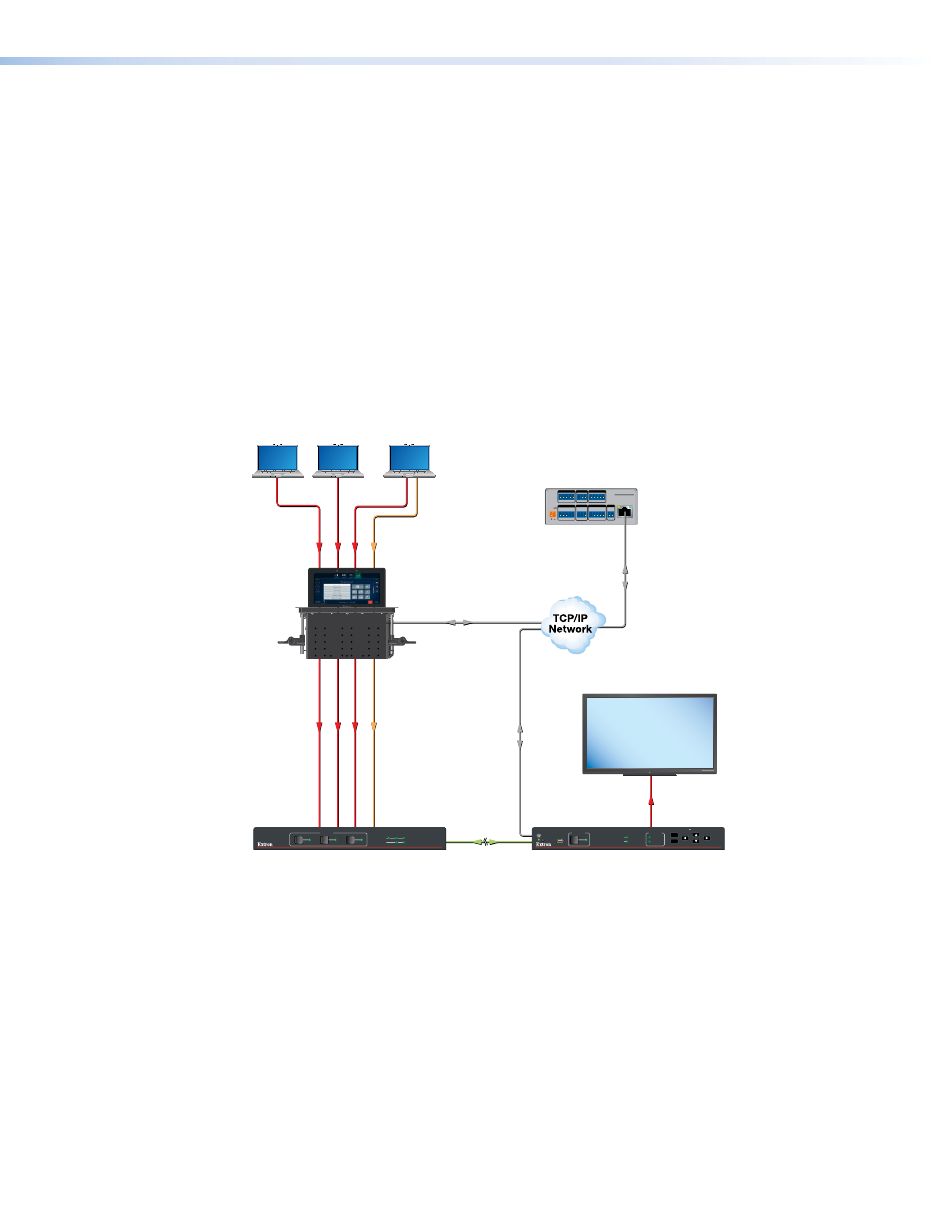

Figure 1 shows one application for the TLP Pro 725C. The TLP Pro 525C can be used in similar
systems.
Extron
HC 404
Transmitter
Figure 1.
Motion detector wakes the touchpanel.
•
Integrated lid switch automatically wakes the touchpanel when opened and can trigger
•
any other system function.
Manage, monitor, and control this device remotely — using GlobalViewer Enterprise
(GVE) Resource Management software.
Fully customizable using Extron control system software — GUI Designer combined
with Global Configurator Plus, Global Configurator Professional, or Global Scripter.
Supports the Extron Control App and Extron Control for Web.
High speed USB 2.0 port — for future expansion. This feature is not available on the NC
models.
JITC Certified — Successfully completed interoperability and information assurance testing
for use in government applications and other mission-critical environments.
Laptops
HDMI
HDMI VGA
Audio
Extron
TLP Pro 725C
7" Cable Cubby TouchLink
Pro Touchpanel
Ethernet/PoE
INPUTS
2 3 4
2 3 4 SIGNAL
HDCP
HCT 103
CATx Cable
up to 230'
Application Diagram
TLP Pro 525C and 725C Series Touchpanels • Introduction
Extron
COM 1 COM 2 DIGITAL I/O
IPCP PRO 250
IPCP Pro 250
Tx Rx G RTS CTS Tx Rx G 1 2 3 4 G
POWER VOL RELAYS eBUS IR/S
12V
--A MAX V C G 1 2 C
+V + S - S G
IP Link Pro
PWR OUT = 6W S G LAN
Control Processor
Ethernet
Display
MODEL 80
Ethernet
FLAT PANEL
INPUT
1
R SIGNAL
CONFIG 1
HDCP
Extron
HC 404
(70 m)
Receiver
HDMI/CEC
HOLD FOR 720p/1080p
MENU
AUDIO
LPCM-2CH
MULTI-CH
ENTER HCR 102
3
