Ensuring Adequate Under-table Clearance for Retractors

Retractors are optional accessories for managing cables with these touchpanels. If you are using
retractors, ensure that there is sufficient room beneath the table to accommodate them.
•
•
•

Retractor Clearance for the TLP Pro 525C Series

1.64"
(42 mm)
23.64"
(600 mm)
1.64"
(42 mm)
29.64"
(753 mm)
Figure 8.
Horizontal mounting provides maximum legroom and protects the retractors from accidental
damage.
Vertical mounting is used if space or access makes horizontal mounting difficult.
To satisfy ADA compliance requirements for XL models, there is also an option to mount the
retractors at a 30° angle (see the Retractors User Guide, which is available at
com).

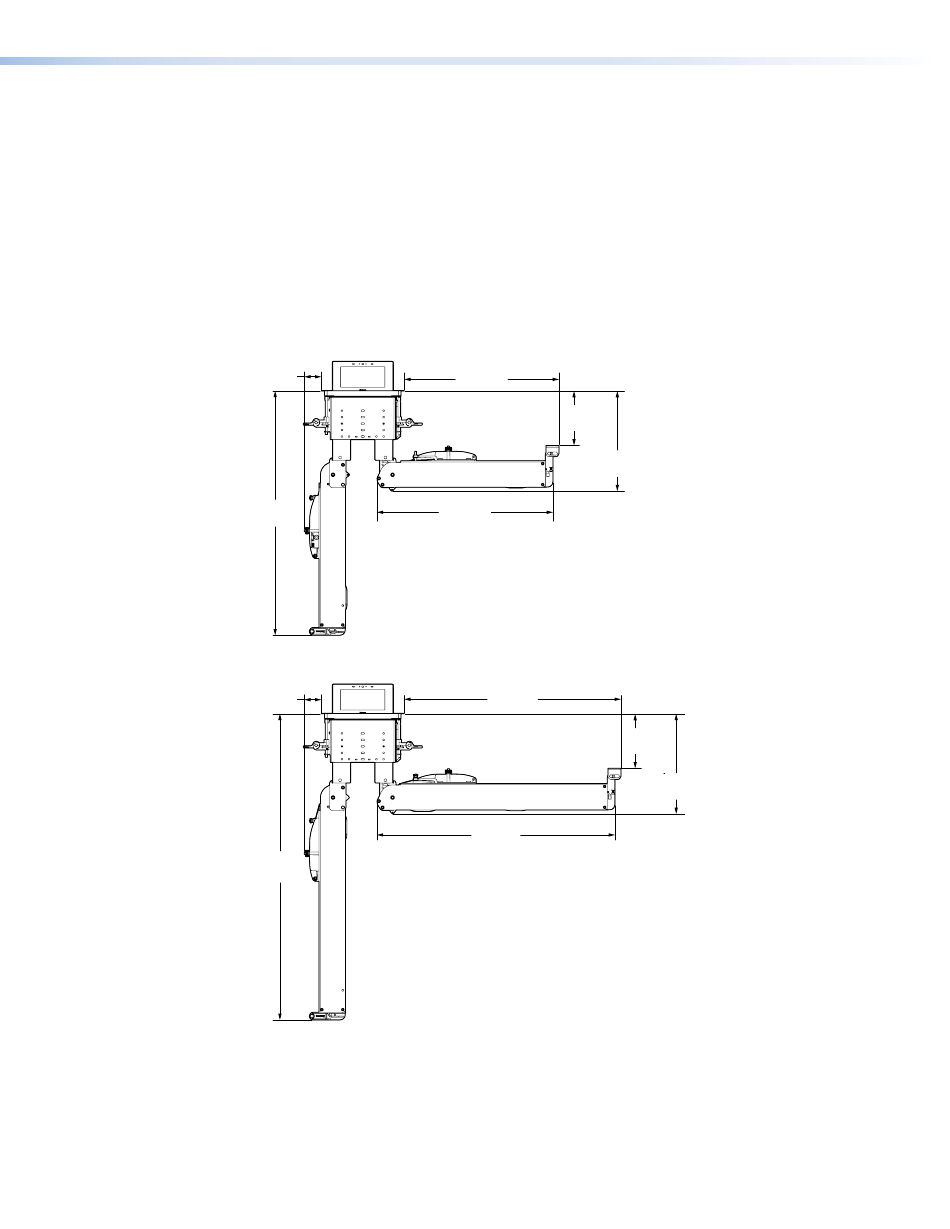

Retractor Mounting Clearance
Under-table Retractor Clearance Requirements for the TLP Pro 525C Series
TLP Pro 525C and 725C Series Touchpanels • Mounting
14.97"
(380 mm)
5.27"
(134 mm)
9.69"
(246 mm)
17.04"
(433 mm)
Standard Models
20.97"
(533 mm)
(134 mm)
23.04"
(585 mm)
XL Models
www.extron.
5.27"
9.69"
(246 mm)
13
