Base Features

D
C
Communication LED (see
connection status of the touchpanel:
Unlit during normal operation (the touchpanel is configured and connected to an IP Link
•
Pro control processor).
Blinks red if the touchpanel has been configured but is not connected to an IP Link Pro
•
control processor.
Lit solidly if the touchpanel is not configured.
•
The indicator can be toggled between enabled and disabled, using the Setup Menu
Advanced
screen (see page 31).
D Light sensor — This sensor monitors ambient light level and adjusts screen brightness,
based on the settings configured using the Setup Menu
E
Activation Switch – the left side of the lid hinge mechanism contains a switch. When the lid
is closed, the switch sends the screen into sleep mode. When the lid is opened, the screen
display is restored and active.
When the lid is shut, the screen is not activated by motion near the touchpanel.
F
Speaker — A single speaker, located on the side of the enclosure, provides audible
feedback for the user.

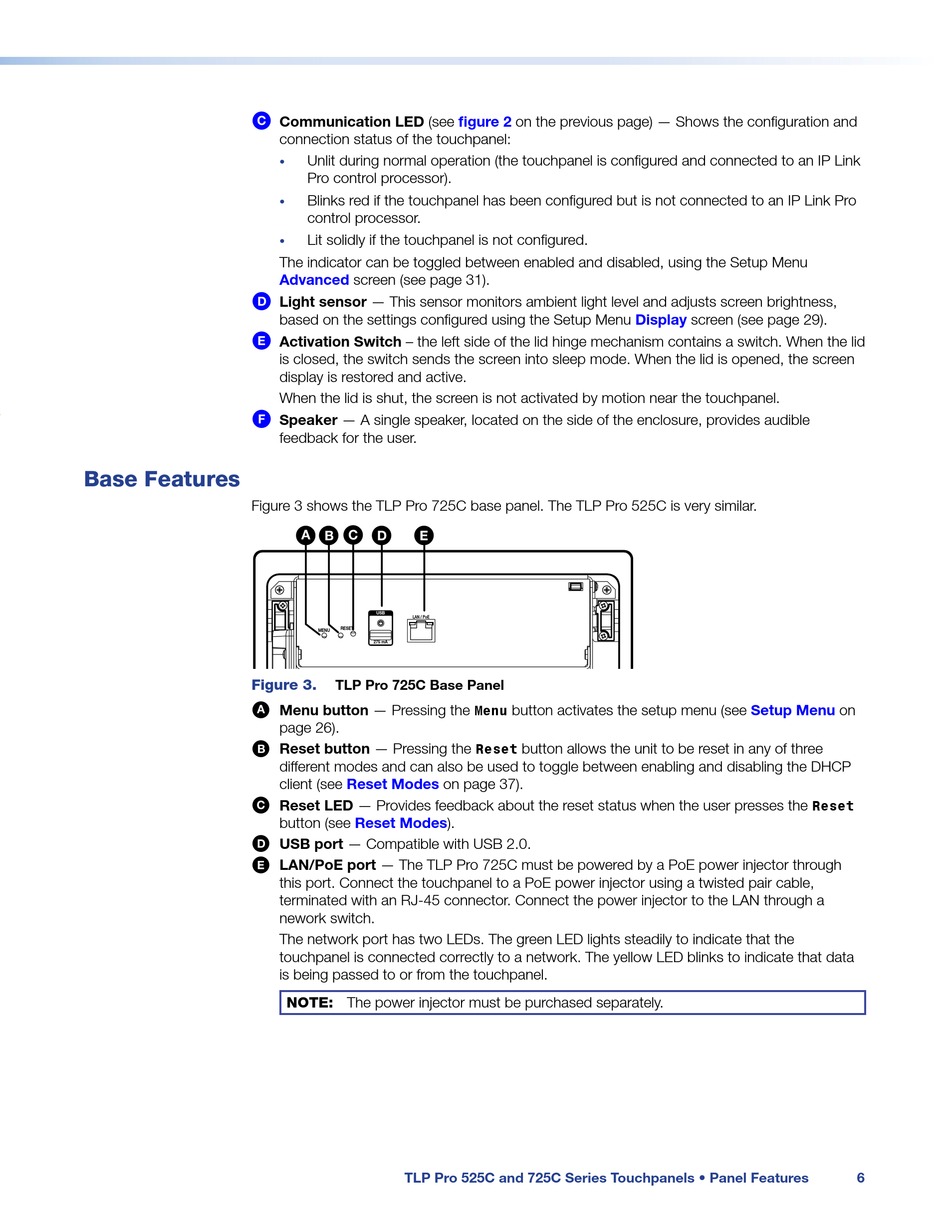

Figure 3 shows the TLP Pro 725C base panel. The TLP Pro 525C is very similar.
A A A B B B C C C D D D E E E
USB
LAN / PoE
RESET
MENU
275 mA
Figure 3. TLP Pro 725C Base Panel
A Menu button — Pressing the
page 26).
B Reset button — Pressing the
different modes and can also be used to toggle between enabling and disabling the DHCP
client (see Reset Modes
Reset LED — Provides feedback about the reset status when the user presses the
C
button (see Reset Modes).
D USB port — Compatible with USB 2.0.
E LAN/PoE port — The TLP Pro 725C must be powered by a PoE power injector through
this port. Connect the touchpanel to a PoE power injector using a twisted pair cable,
terminated with an RJ-45 connector. Connect the power injector to the LAN through a
nework switch.
The network port has two LEDs. The green LED lights steadily to indicate that the
touchpanel is connected correctly to a network. The yellow LED blinks to indicate that data
is being passed to or from the touchpanel.
NOTE: The power injector must be purchased separately.
TLP Pro 525C and 725C Series Touchpanels • Panel Features
figure 2 on the previous page) — Shows the configuration and
button activates the setup menu (see
Menu
Reset button allows the unit to be reset in any of three
on page 37).
Display screen (see page 29).
Setup Menu
Reset
on
6
