Hand router and guide
Recommended method — use the correct metal router guide for your touchpanel. It is
reusable and should not be discarded when the installation is complete.
TLP Pro 525C: part number 70-694-01 (see www.extron.com).
TLP Pro 725C: part number 70-980-01 (see www.extron.com).
Follow the instructions provided in the Routing Template User Guide (see www.extron.com).

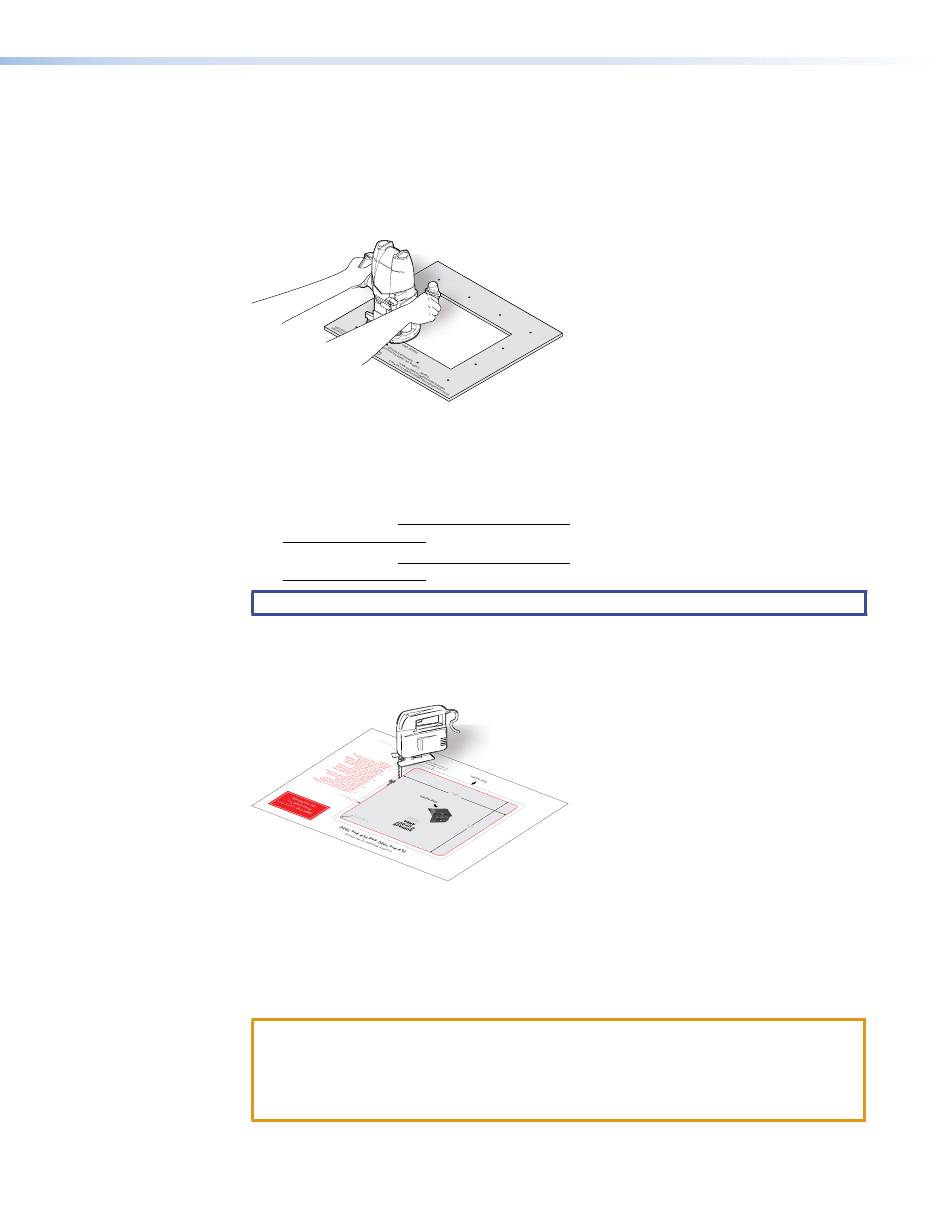

Figure 10.
CNC wood router
Recommended method — if using a CNC router, enter the correct dimensions for the
touchpanel:
•
•
NOTE: The underlined dimension is the connector or AAP access side for the unit.
Reciprocating saw or jigsaw
Acceptable method — if using a reciprocating saw or jigsaw, make sure to use the appropriate
paper cutout template for your touchpanel. The template is available at www.extron.com.
Figure 11.

Running Cables

Run a LAN/PoE cable, all cables necessary to support the AC connector, the cables stored in the
enclosure, and all planned AAP connectors. They should be run below the table and through the
hole that was cut in the previous step.
ATTENTION:
•
•
Leave enough slack to connect the cables before the enclosure is installed in the table.
Using a Hand Router
TLP Pro 525C — 7.50 +0.00/-0.02 inches W x 6.00 +0.00/-0.02 inches D
(191 +0.00/-0.5 mm W x 152 +0.00/-0.5 mm D)
TLP Pro 725C — 8.90 +0.00/-0.02 inches W x 7.10 +0.00/-0.02 inches D
(226 +0.00/-0.5 mm W x 180 +0.00/-0.5 mm D)
Using a Reciprocating Saw or Jigsaw
Do not power on the touchpanels or control processors until you have read the
Attention about Power over Ethernet (PoE) power supplies (see page 7).
Ne branchez pas les écrans tactiles ou les processeurs de contrôle avant d'avoir lu la
mise en garde sur les sources d'alimentation via Ethernet (PoE) (voir page 7).
