Panel Features

TLP Pro 725C Front Panel and Enclosure Features

2
n
D
This section describes the TLP Pro touchpanels:
TLP Pro 725C Front Panel and Enclosure Features
•
TLP Pro 725C Base Features
•

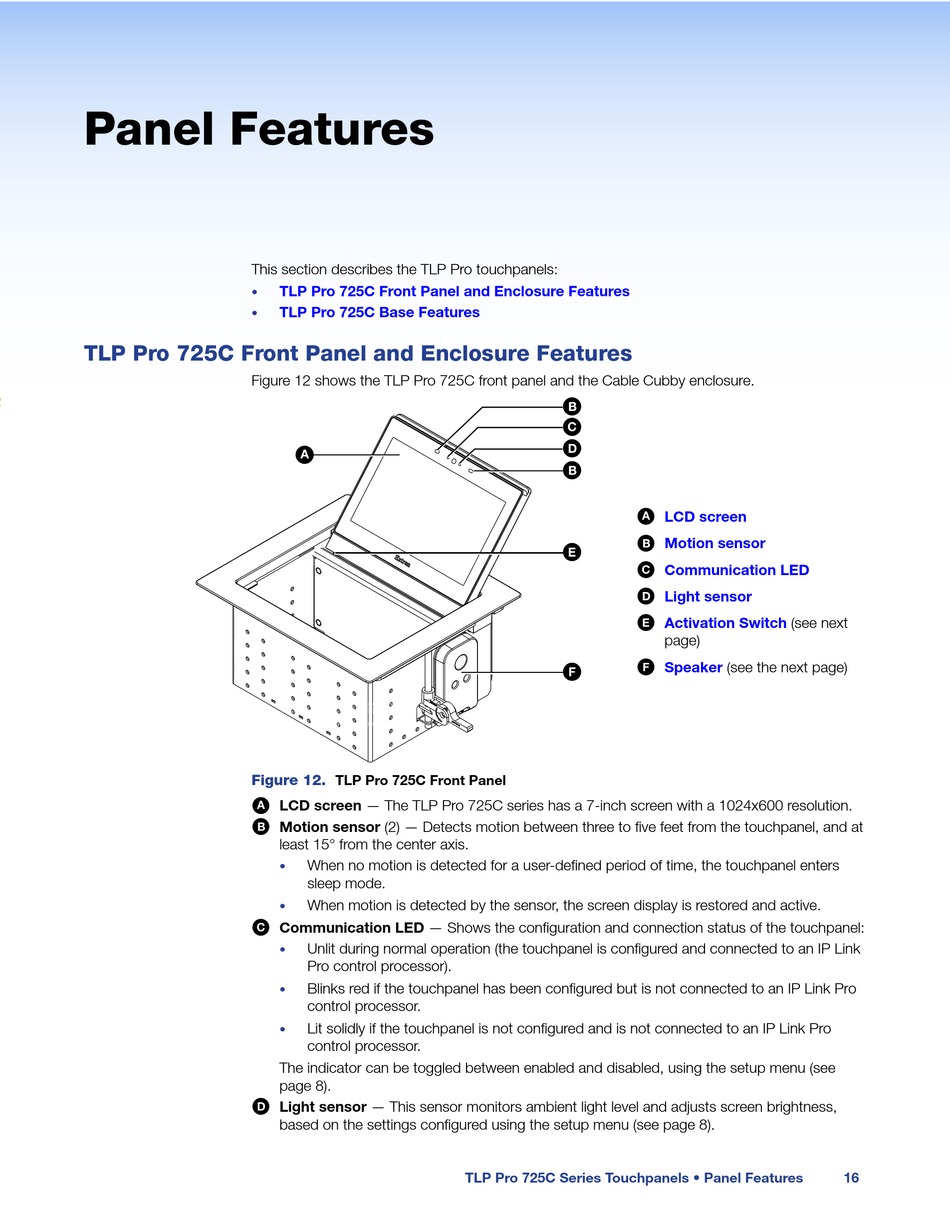

Figure 12 shows the TLP Pro 725C front panel and the Cable Cubby enclosure.
A A
Figure 12.
TLP Pro 725C Front Panel
LCD screen — The TLP Pro 725C series has a 7-inch screen with a 1024x600 resolution.
A
Motion sensor (2) — Detects motion between three to five feet from the touchpanel, and at
B
least 15° from the center axis.
When no motion is detected for a user-defined period of time, the touchpanel enters
•
sleep mode.
When motion is detected by the sensor, the screen display is restored and active.
•
Communication LED — Shows the configuration and connection status of the touchpanel:
C
Unlit during normal operation (the touchpanel is configured and connected to an IP Link
•
Pro control processor).
Blinks red if the touchpanel has been configured but is not connected to an IP Link Pro
•
control processor.
Lit solidly if the touchpanel is not configured and is not connected to an IP Link Pro
•
control processor.
The indicator can be toggled between enabled and disabled, using the setup menu (see
page 8).
D Light sensor — This sensor monitors ambient light level and adjusts screen brightness,
based on the settings configured using the setup menu (see page 8).
B B
C C
D D
B B
A
B
E E
C
D
E
F
F F
TLP Pro 725C Series Touchpanels • Panel Features
LCD screen
Motion sensor
Communication LED
Light sensor
Activation Switch (see next
page)
Speaker (see the next page)
