Test and Troubleshoot

•
Test the system (see the
during system troubleshooting).
•
Make adjustments to wiring or configuration as needed.

Network Communication Setup

Network setup is essential prior to
configuration. Use the flowchart as a general
guide to setting up the IPL EXP Power expansion
interface for network use.
NOTE: If using 802.1X
security, see the
Extron 802.1X
Technology Reference
Guide (available at
www.extron.com) and
the Toolbelt Help file for
additional details on
system setup.

Features

This section shows panel features and their locations. Most of the features and LED indications are described and
Cabling, Addressing, Features, and Connections
shown in the
descriptions of the corresponding ports.

Front Panel Features

Power and Reset Button
Reset LED
(recessed)

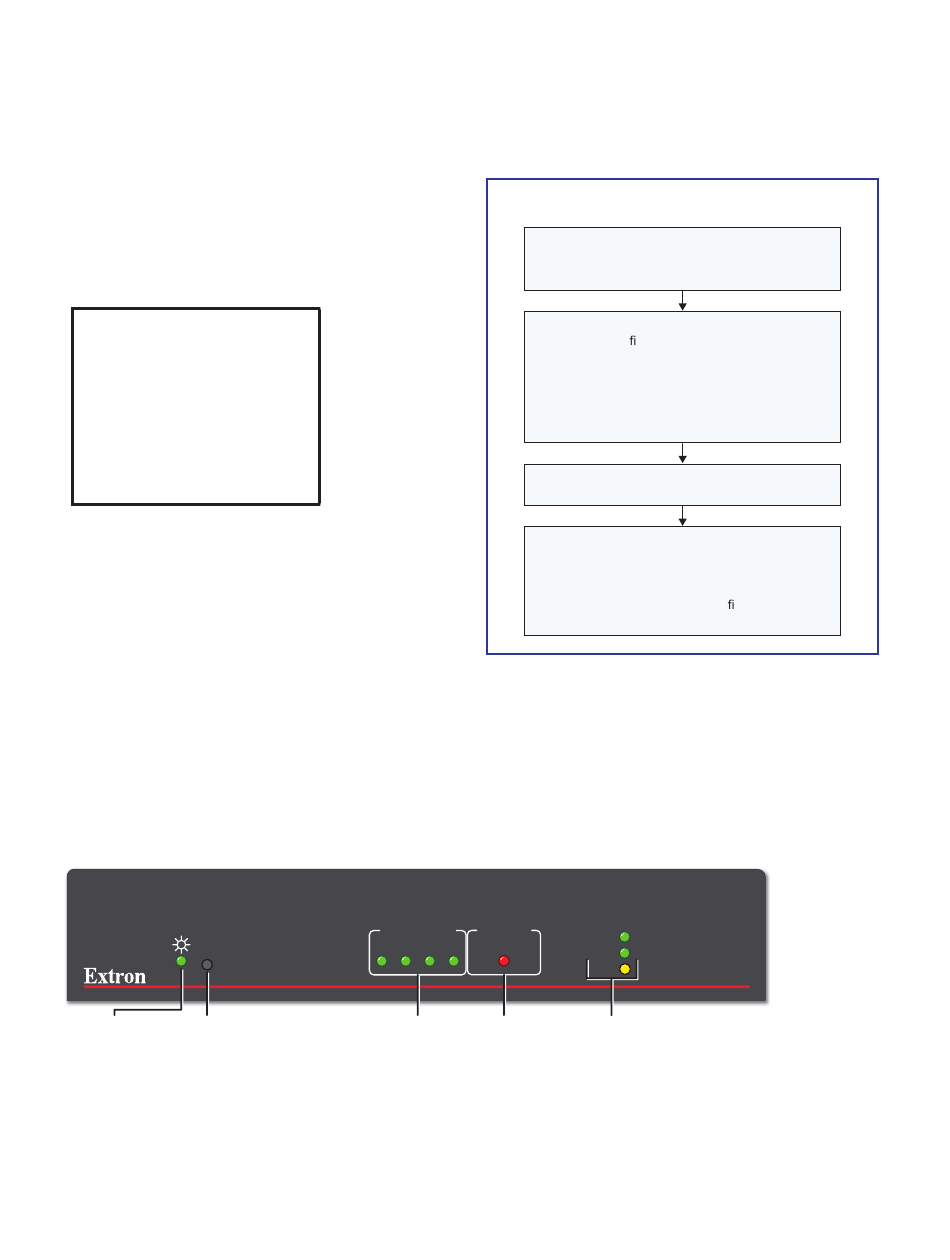

Figure 6. IPL EXP PDU4H Front Panel
Troubleshooting
1
R
section starting on page 47 for an outline of items to check
Network Communication Setup
Connect the PC and the LAN port of the
expansion interface to the same network.
Open the Toolbelt software from within
Global Con gurator (GC Professional or
Toolbelt displays a list of all Extron control
Using the MAC address, locate the desired
expansion interface in the list and select it.
use the Set IP feature in Toolbelt or use the
feature in the Toolbelt Manage > Network
Settings tab to enter the IP address and
Figure 5.
SWITCHED AC BREAKER
4
2 3
Switched Circuit
AC Power Breaker
LEDs LED
IPL EXP Power Series • Hardware Features and Installation
Apply power to all devices.
GC Plus mode) or as the stand-alone
application.
Start Device Discovery.
devices connected to the network.
For each network interface (LAN),
subnet address. Then con gure other
network settings as needed.
Network Setup
section starting on page 15 paired with the
100
LINK
ACT
IPL EXP PDU4H
CONTROL SYSTEM EXPANSION INTERFACE
LAN/
Network
LEDs
11
