Chapter 2: Jumpers and Connectors

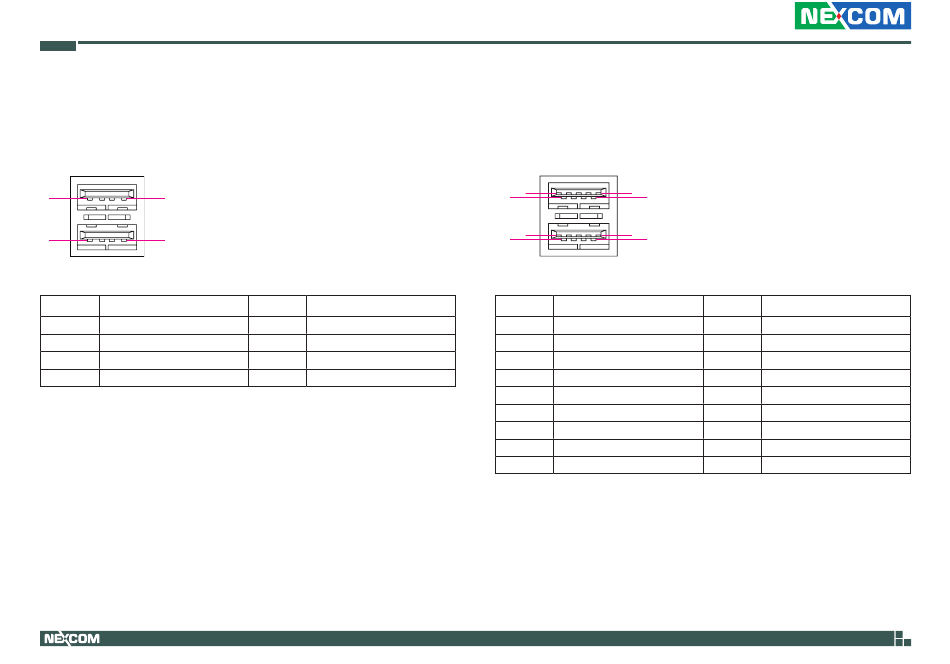

USB 2.0 Ports

Connector type: Dual USB 2.0 port
Connector location: USB2
5 9
1 4
Pin definition
1 +5V
3 USB_2P_C
5 +5V
7 USB_3P_C
Copyright © 2020 NEXCOM International Co., Ltd. All Rights Reserved.
Pin definition
2 USB_2N_C
4 GND
6 USB_3N_C
8 GND

USB 3.0 Ports

Connector type: Dual USB 3.0 port
Connector location: USB1
18 14
10
9 5
1
Pin definition
1 +5V
3 USB_0P_C
5 USB3_RX0_N_C
7 GND
9 USB3_TX0_P_C
11 USB_1N_C
13 GND
15 USB3_RX1_P_C
17 USB3_TX1_N_C
14
13
4
Pin definition
2 USB_0N_C
4 GND
6 USB3_RX0_P_C
8 USB3_TX0_N_C
10 +5V
12 USB_1P_C
14 USB3_RX1_N_C
16 GND
18 USB3_TX1_P_C
