Adding stations

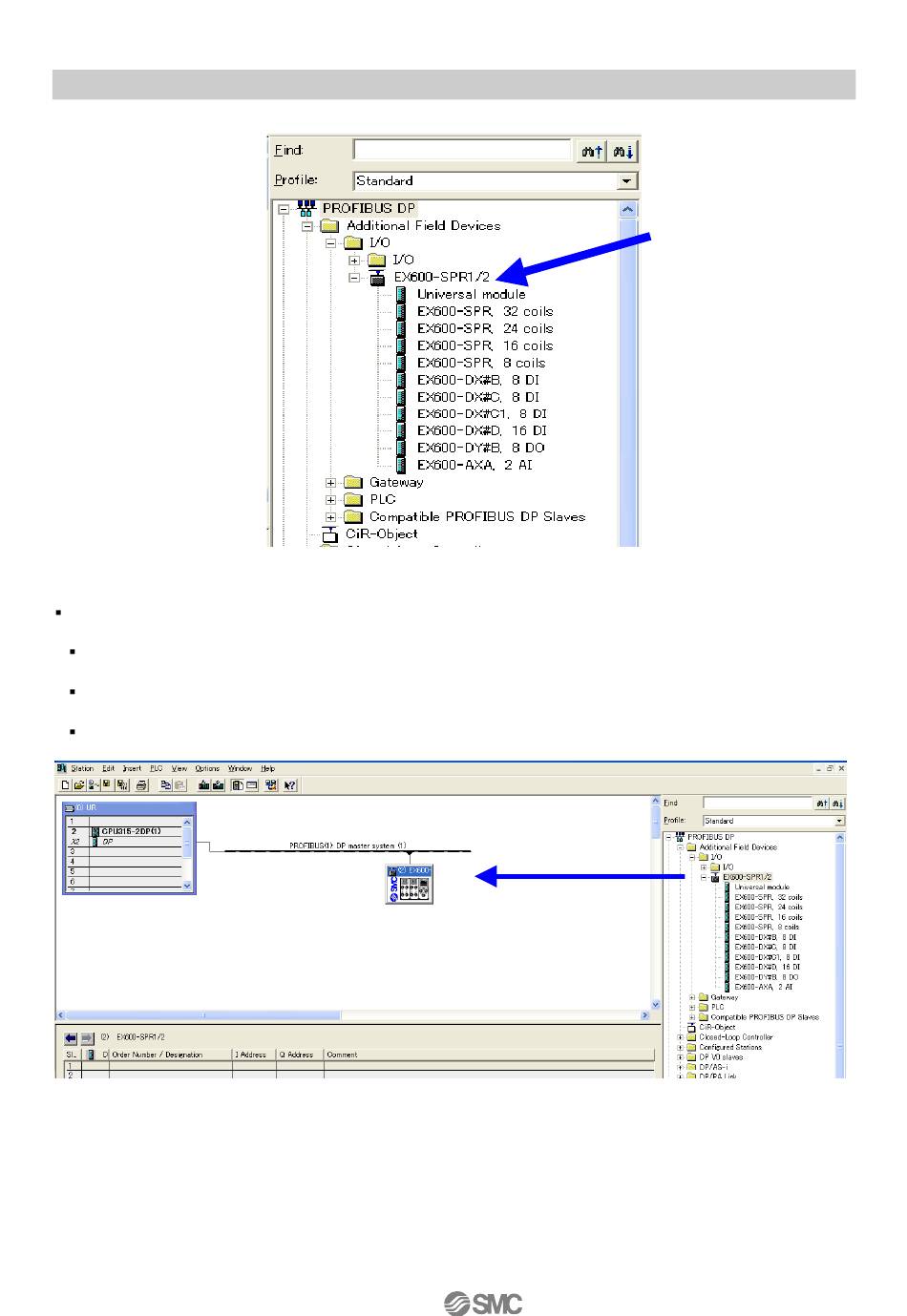

Drag and drop EX600-SPR1/2 from the hardware catalogue to the station window. "Property-PROFIBUS
interface EX600-SPR1/2" dialogue box will be displayed.
Enter the unit address on the dialogue box. Please make sure that the address entered is the same as the
address set, using the SI unit switches.
Press the OK button to confirm the address setting. EX600-SPR1/2 will be shown on the station window.
- 60 -
After GSD file has
been installed
