Analog Input Unit - SMC Networks EX600-SPR Series Operation Manual

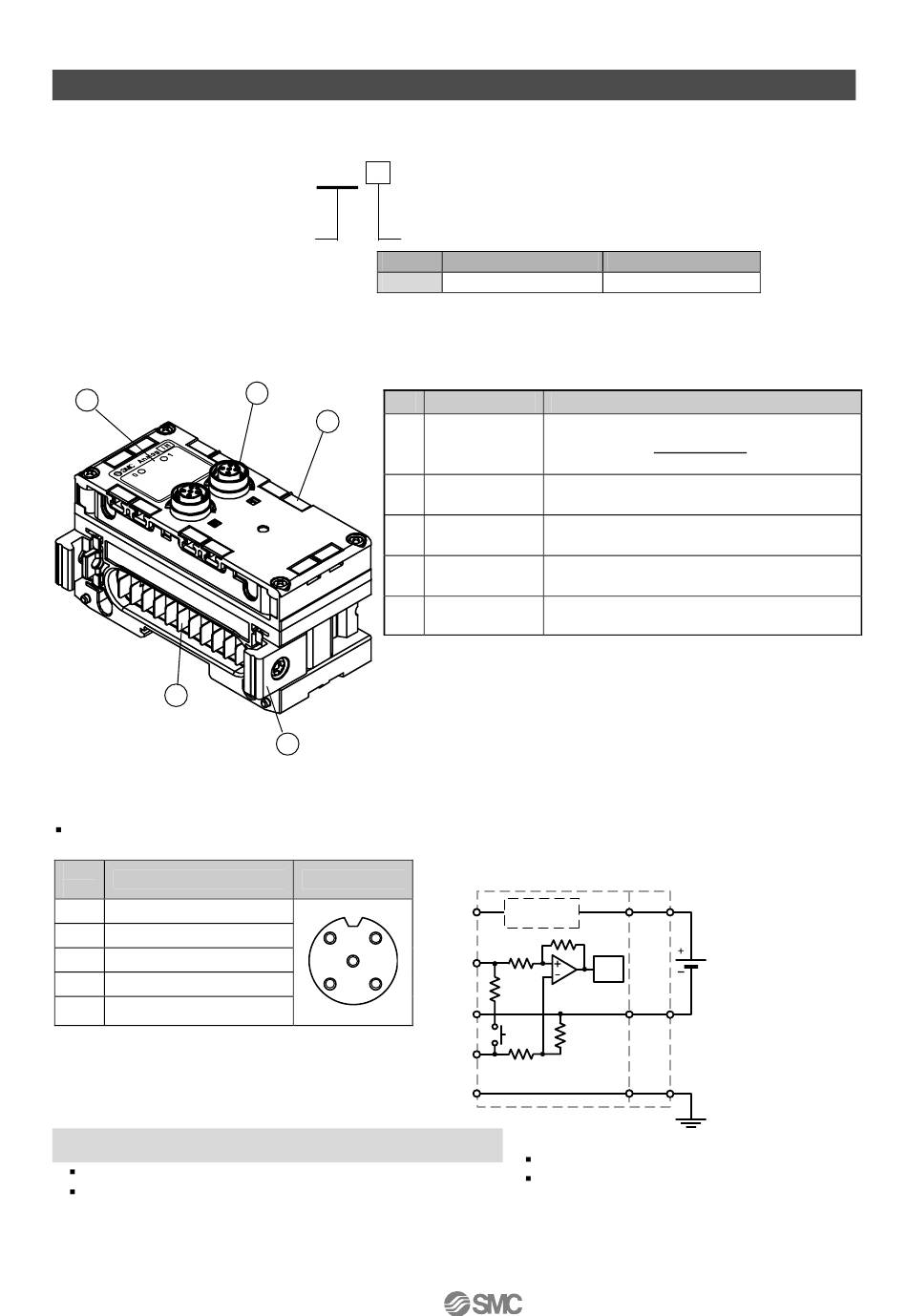

Analog Input Unit

How to order
EX600 – AX
Analog input
Name and function of the parts
1
5
Mounting and installation
Pin assignments
Pin
Signal name
No
1 24 V (For control/input)
2 Input +
3 0 V (For control/input)
4 Input -
5 FE
Be sure to place a seal cap on any unused connectors.
Placing the seal cap appropriately enables the unit to
achieve IP67 protection.
Connector and Input channel
Symbol
A
2
No.
3
1
2
3
4
5
4
Configuration
1 2
5
4 3
Note
Connector
2 x M12 (5 pin)
Name
Indicates the unit status.
Status LED (Refer to the "Error display" section for
further details.)
Connector Connector for analogue inputs.
(input) (M12, 5 pin, socket: SPEEDCON)
Marker
Groove to mount a marker.
groove
Joint bracket to join the adjacent unit,
Joint bracket
fixed with attached screws
Connector for Conveys the signals and power supplies
unit (plug) to the adjacent unit.
▪ Wiring Diagram
Analog input unit
Short circuit
1pin
detection
24V
2pin
A/D
Input+
3pin
0V
4pin
Input-
5pin
FE
Input impedance
Voltage input type: 100 kΩ
Current input type: 50 Ω
- 33 -
Input channels
2 channel
Description
End
plate
Power supply
for control
and input
24VDC
FE
No.EX##-OML0005
