SMC Networks EX600-SPR Series Operation Manual page 23

Digital Input Unit
How to order
EX600 – DX
Digital input
Symbol
P
N

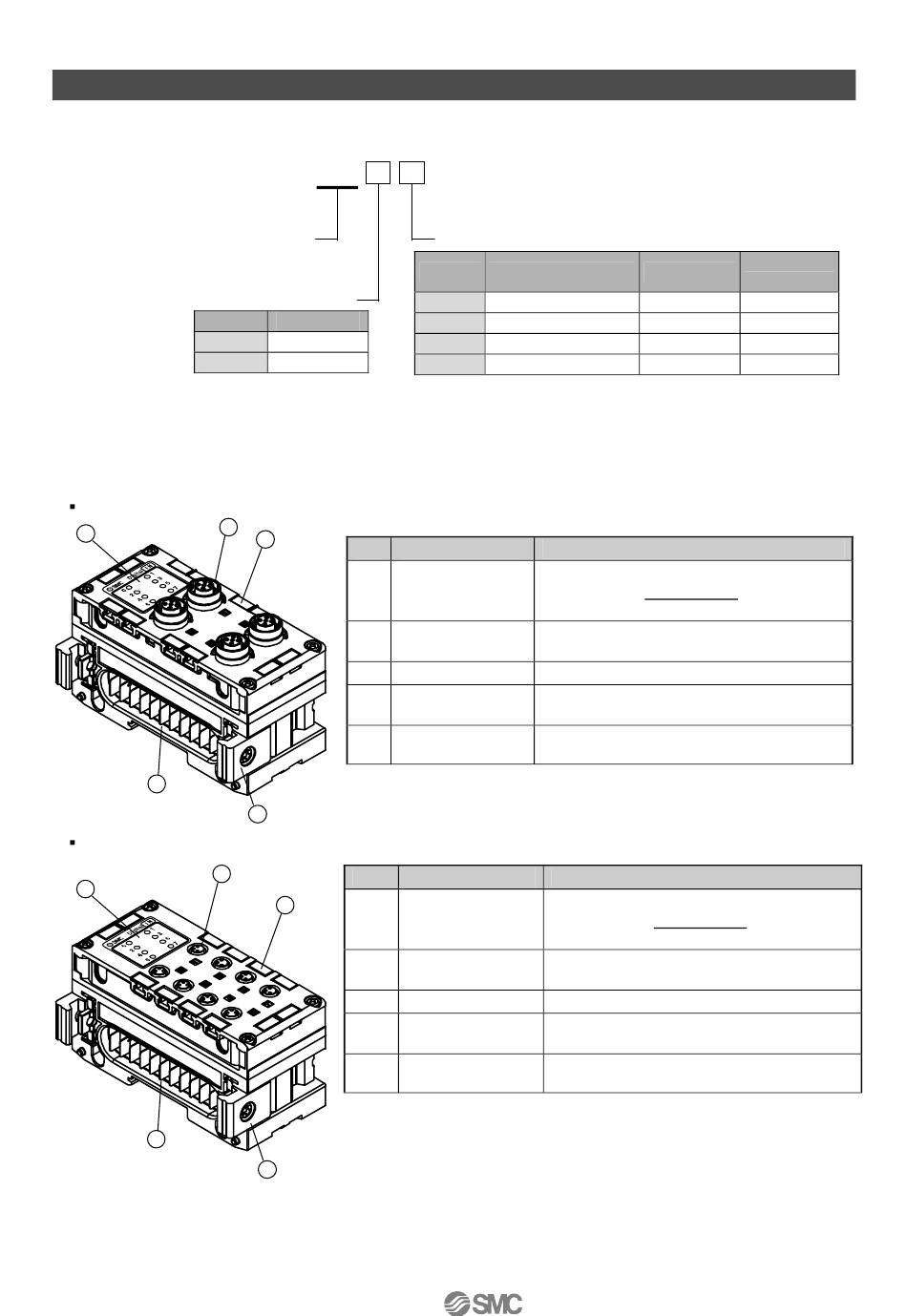

Name and function of the parts
*
EX600-DX B
2
1
5
* *
EX600-DX C
2
1
5
Input polarity
Description
PNP
NPN
3
No.
1 Status LED
Connector
2
(input)
3 Marker groove
4 Joint bracket
Connector for
5
unit (plug)
4
No.
3
1 Status LED
2 Connector (input)
3
Marker groove
4 Joint bracket
Connector for
5
unit (plug)
4
Connector and input points and open circuit detection
Symbol Connector
B 4 x M12 (5 pin)
C 8 x M8 (3 pin)
C1 8 x M8 (3 pin)
D 8 x M12 (5 pin)
Note: Input equipment with 4 pin M12 connector can also be
connected to M12 (5 pin) connector.
Name
Indicates the unit status.
(Refer to the "Error display" section for
further details.)
Connector for digital inputs.
(M12, 5 pin, socket: SPEEDCON)
Groove to mount a marker.
Joint bracket to join the adjacent unit,
fixed with attached screws
Conveys the signals and power supplies
to the adjacent unit.
Name
Indicates the unit status.
(Refer to the "Error display" section for
further details.)
Connector for digital inputs.
(M8, 3 pin, socket)
Groove to mount a marker.
Joint bracket to join the adjacent unit,
fixed with attached screws
Conveys the signals and power supplies
to the adjacent unit.
- 23 -
Open circuit
Input points
detection
8 points No
8 points No
8 points Yes
16 points No
Description
Description
No.EX##-OML0005
