Installation: Task 3 — Installing the MAPD Assembly in
the Switch

Installing the MAPD in an AC Powered Switch

Using ''Worksheet A-3: Port Slot Locations for the MAPD System Assembly,''
follow the steps below to install the system assembly.
1. Remove any existing cables from the third slot of the three contiguous slots
reserved for the MAPD system. For example, if you are going to install the
MAPD system in slots 7 through 9 of carrier A, remove the I/O cables from
slot 9. (This is the slot that provides connectivity to the TN801B MAPD
circuit pack.)
2. Attach the male D-type amphenol connector from the MAPD Board cable
(H600-475 G-2) to the MAPD Board (TN801B) port connector in the third
slot of the MAPD system slots on the back of the switch.
2-8.)
20 19
Maint/
Port A
Female
25 Pin
RS-232

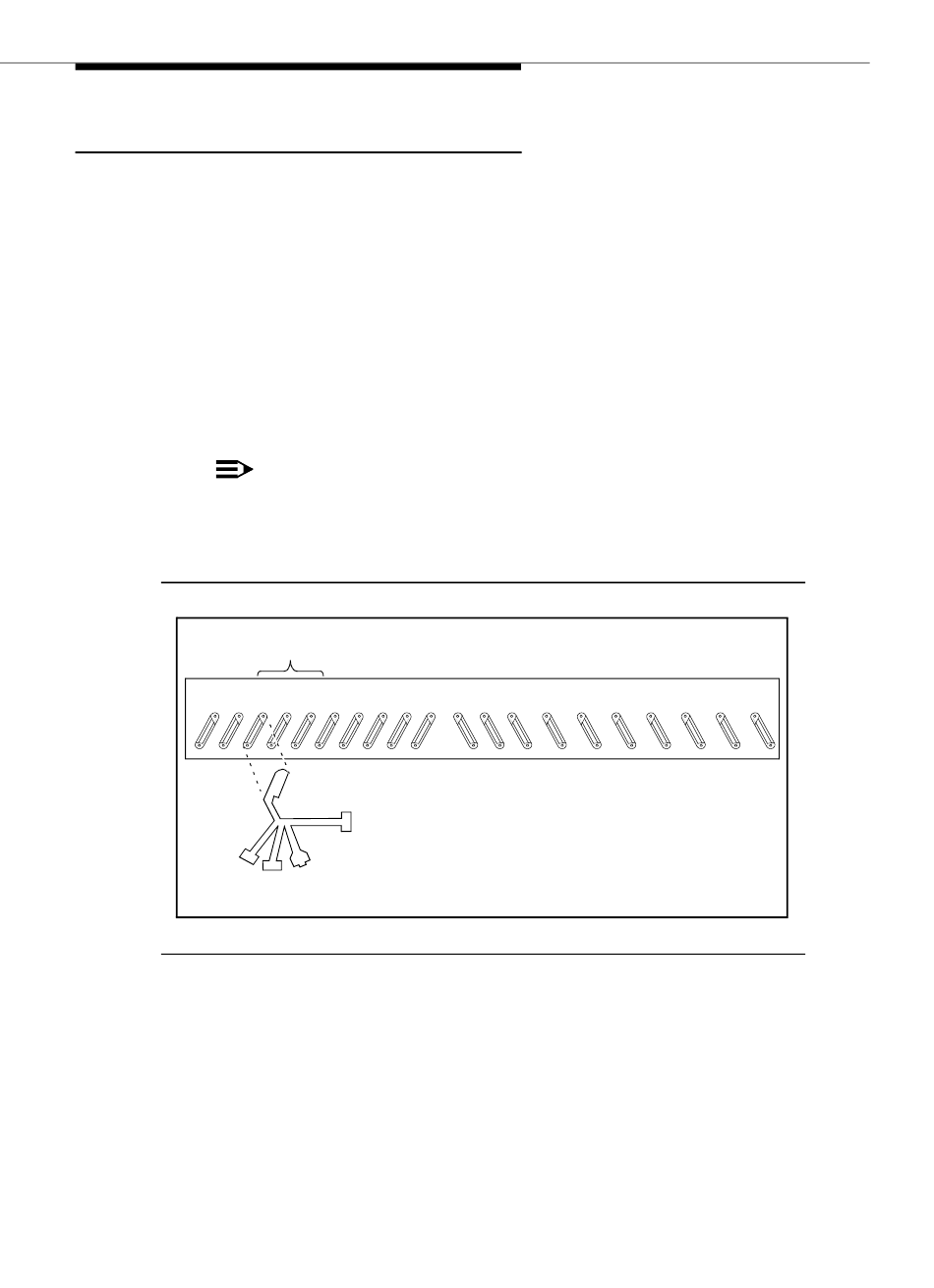

Figure 2-8. Attaching the MAPD Cable
3. Insert the SanDisk PCMCIA FlashDisk that came with the system in the
rightmost PCMCIA slot in the faceplate of the TN801B board. The top of
the disk should be facing left.
NOTE:
You must connect this adapter cable directly to the port connector on
the switch. If you install another cable between the switch and this
cable, the MAPD system will not operate correctly.
Example of
MAPD Slots
3rd 2nd 1st
18 17 16 15 14 13 12 11 10
MAPD Cable (H600-475-GP2)
DCIU Male 25 Pin RS-232 (not used)
Female RJ45
Admin/Port B
Female 25 Pin
RS-232
9 8 7 6 5 4
