Planning: Task 3 — Familiarizing Yourself with the
MAPD System Assembly
Planning: Task 3 — Familiarizing
Yourself with the
MAPD System Assembly
This section provides a diagram of the complete MAPD system assembly
2-6) along with a diagram of the eight-character LCD display on the front panel of
the TN801B MAPD
See Appendix C to be sure that all the required parts have been ordered and
shipped correctly.
Side View
PCI Connector
Pentium Processor Card
TN801B Board
Reset Cable
(2 wires)

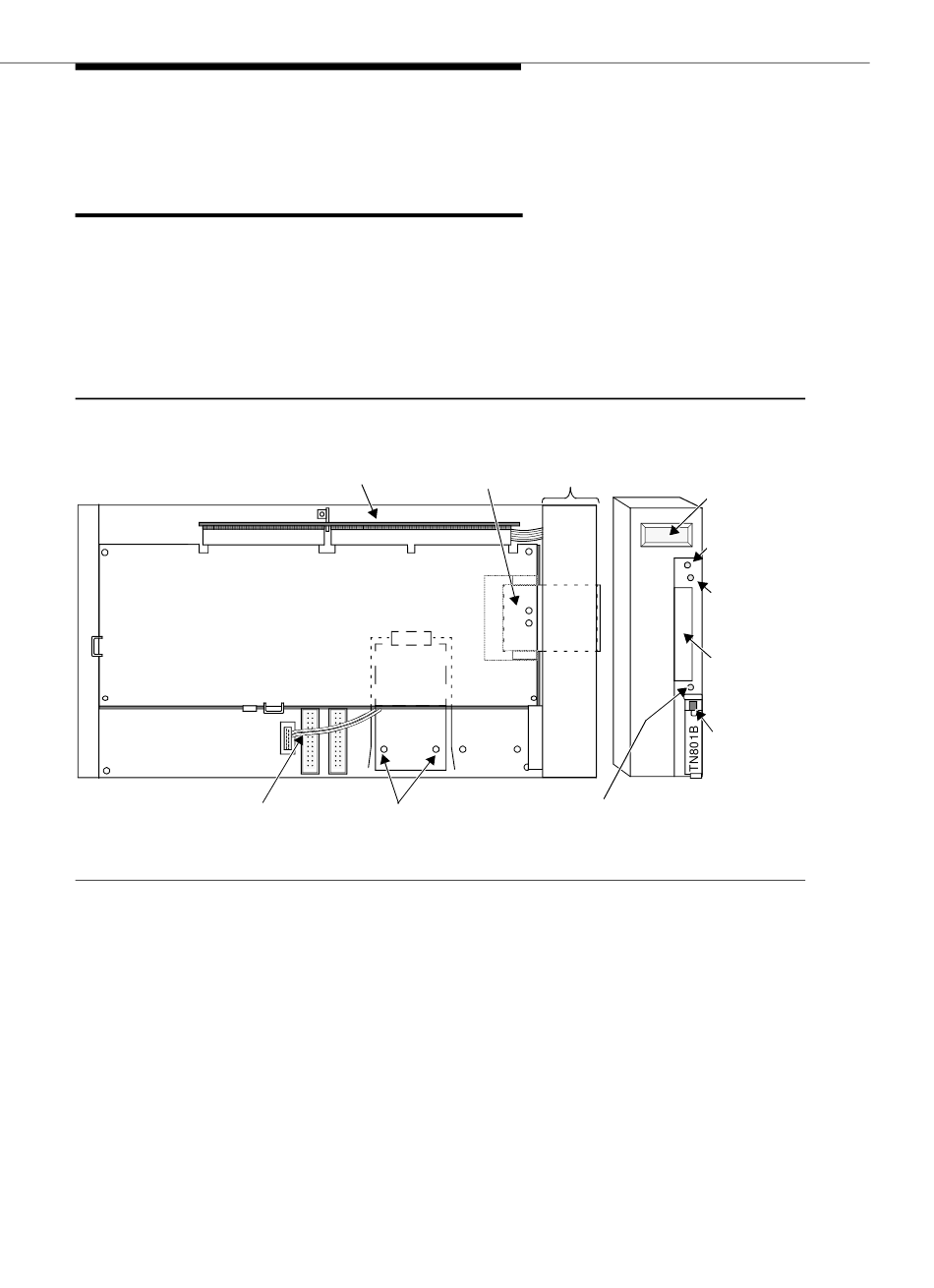

Figure 2-6. MAPD System Assembly (J58890MA-1)
(Figure 2-1.)
PCMCIA
Side Plane
Disk
ISA Connector
2-1/2"
Disk
Drive
Backside Screws
In Use LED (yellow)
for 2-1/2" Disk
Front
Front View
Panel
PCMCIA Disk
Issue 3 May 2002
(Figure
8 Character
LCD
Boot/Shut
Button
Board
Status
LED (red)
Slot for
PCMCIA
Disk
Latch
2-11
