11. Advanced Instructions
<If custom paper is used>
Perform the solution described in "(a) Adjust the image skew", "(b) Adjust the image position (If
custom paper is used)", "(c) Adjust the magnification (Across feed direction)" and then "(d) Adjust
the magnification (With feed direction)".
<If custom paper is not used>
Perform the solution described in "(a) Adjust the image skew", "(e) Adjust the image position (If
custom paper is not used)".
• You cannot adjust the vertical magnification and horizontal magnification of all types of paper
other than custom paper. Therefore, it is recommended to pre-register the type of paper in use as a
custom paper.
• When manual adjustments or adjustments using a template are performed, even if 1103: [Image
Position Feedback Correction] is set to [Detection Mark: Back] or [Detection Mark: Front & Back],
the adjustments may not correct the image position.
(a) Adjust the image skew
Adjust the vertical skew of the image.
Default
1. Print the image in black and white.
2. Check the direction of the skew.
3. In the [Machine: Image Position] group on the [Adjustment Settings for Operators]
menu, select 0105: [Perpendicularity Adjustment] and adjust the value.

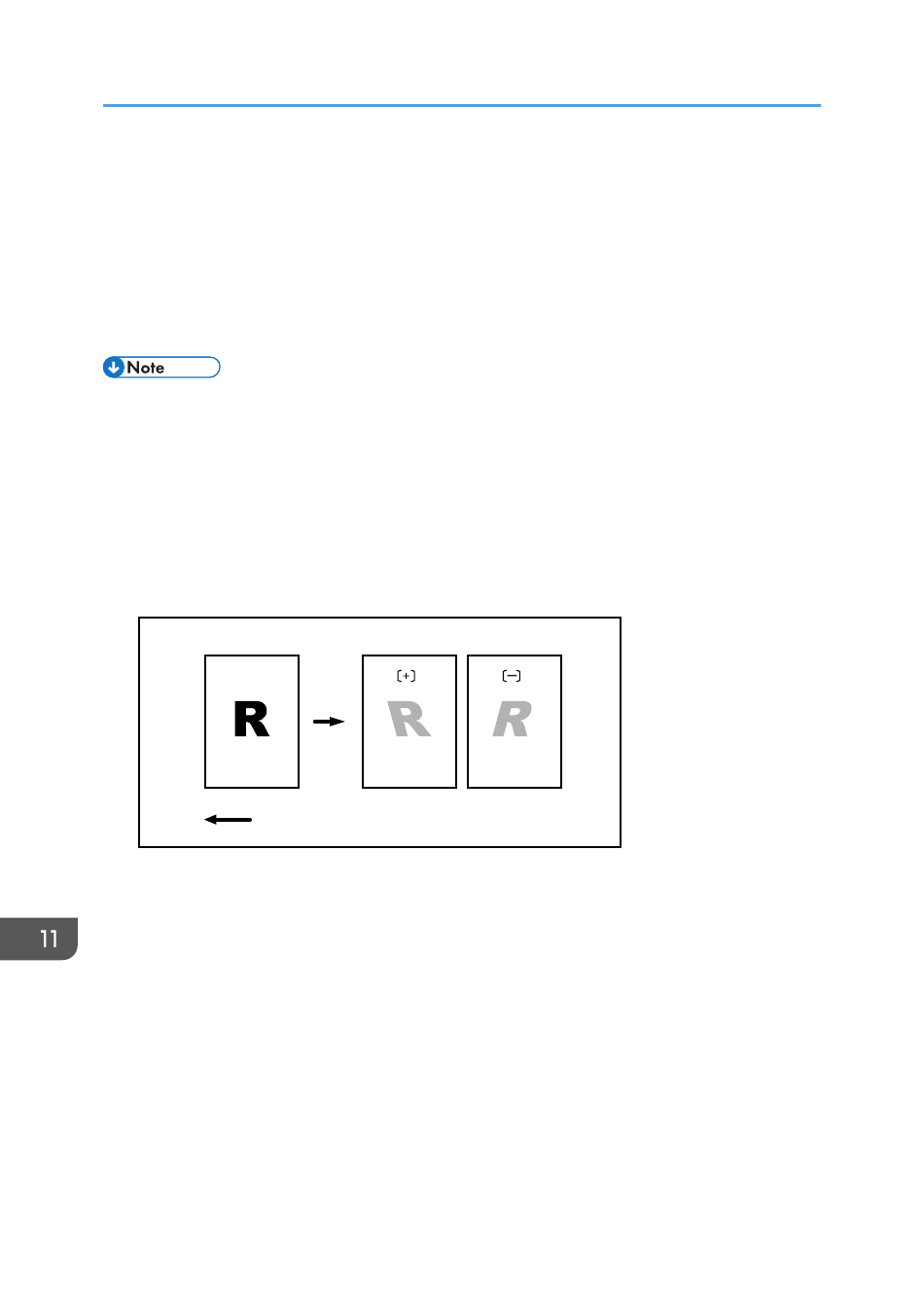

Move the cursor to [+] to skew the image counterclockwise or to [−] to skew it clockwise.
4. Print the image in black and white. Check the image skew. If the problem persists,
increase the value slightly.
5. Execute color registration.
In executing color registration, the black adjustment will also be applied to cyan, magenta,
yellow and special color.
328
Paper feed direction
CEZ026
