For information on L3 Mobile-Vision's warranty and replacement options regarding
VLP2s, refer to the Flashback Digital Evidence Collection System warranty.

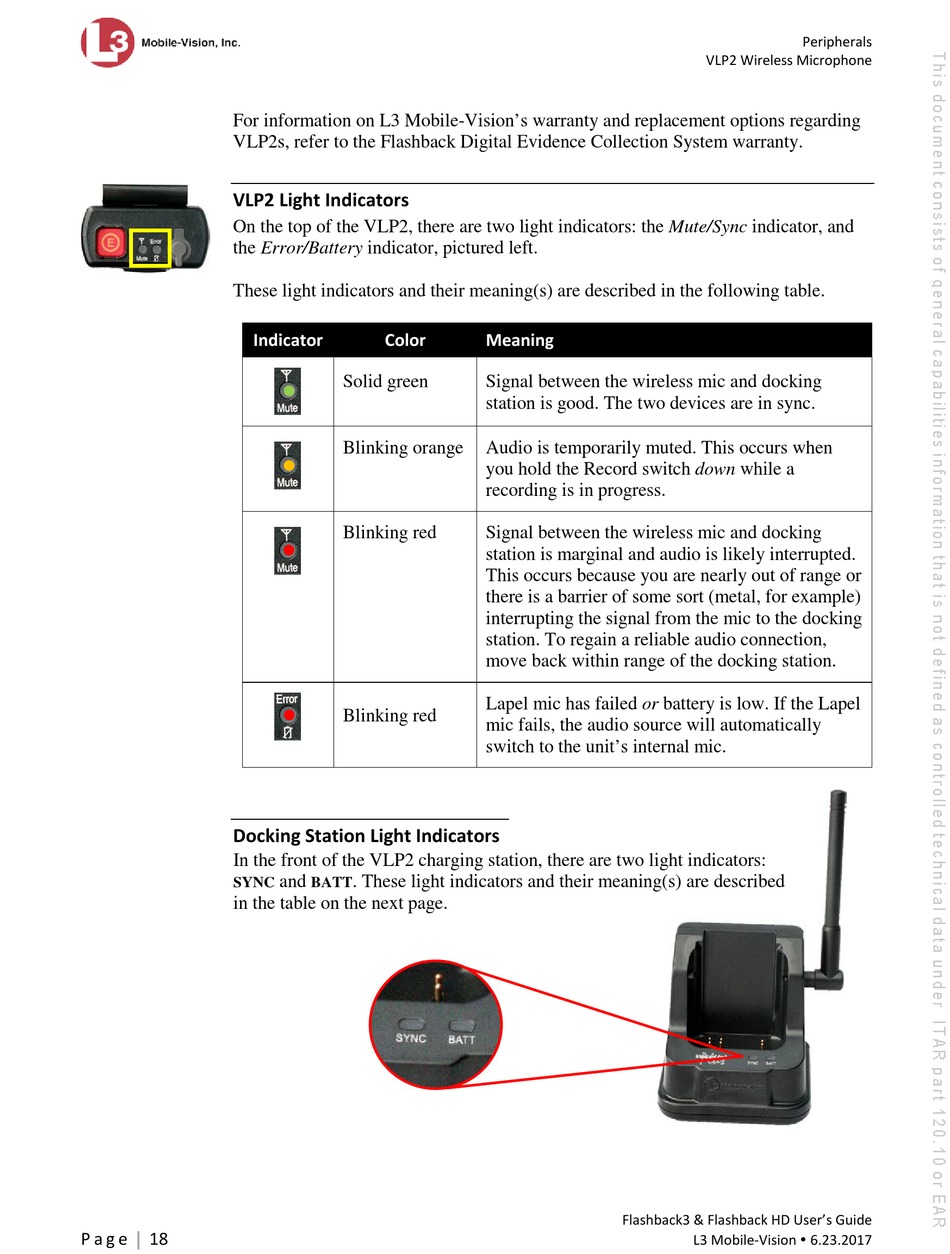

VLP2 Light Indicators

On the top of the VLP2, there are two light indicators: the Mute/Sync indicator, and
the Error/Battery indicator, pictured left.
These light indicators and their meaning(s) are described in the following table.
Indicator

Docking Station Light Indicators

In the front of the VLP2 charging station, there are two light indicators:
SYNC
in the table on the next page.
P a g e 18
Color
Solid green
Blinking orange
Blinking red
Blinking red
and . These light indicators and their meaning(s) are described
BATT
Meaning
Signal between the wireless mic and docking
station is good. The two devices are in sync.
Audio is temporarily muted. This occurs when
you hold the Record switch down while a
recording is in progress.
Signal between the wireless mic and docking
station is marginal and audio is likely interrupted.
This occurs because you are nearly out of range or
there is a barrier of some sort (metal, for example)
interrupting the signal from the mic to the docking
station. To regain a reliable audio connection,
move back within range of the docking station.
Lapel mic has failed or battery is low. If the Lapel
mic fails, the audio source will automatically
switch to the unit's internal mic.
Flashback3 & Flashback HD User's Guide
Peripherals
VLP2 Wireless Microphone
L3 Mobile-Vision  6.23.2017
