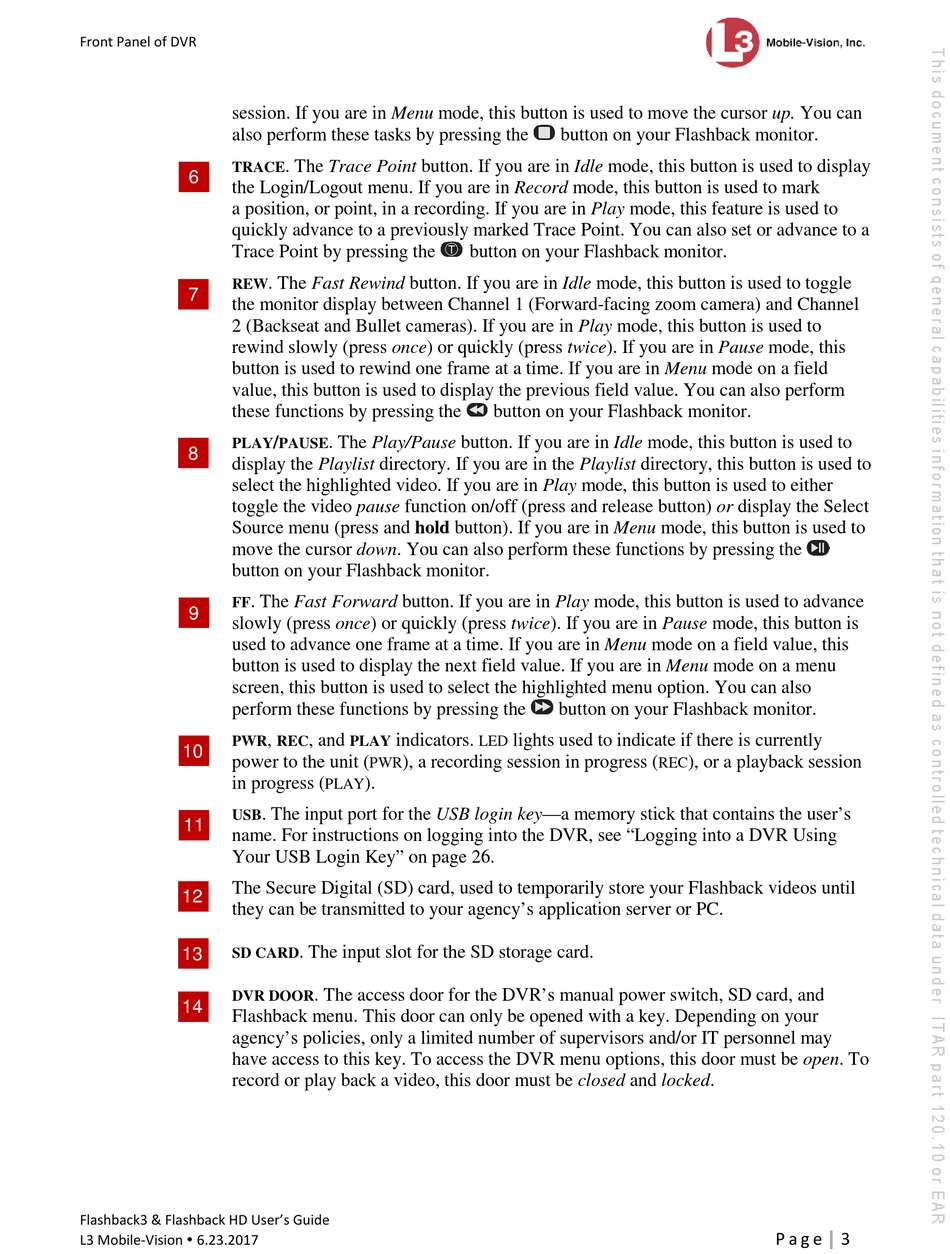

Front Panel of DVR
session. If you are in Menu mode, this button is used to move the cursor up. You can
also perform these tasks by pressing the
6 TRACE
the Login/Logout menu. If you are in Record mode, this button is used to mark
a position, or point, in a recording. If you are in Play mode, this feature is used to
quickly advance to a previously marked Trace Point. You can also set or advance to a
Trace Point by pressing the
REW
7
the monitor display between Channel 1 (Forward-facing zoom camera) and Channel
2 (Backseat and Bullet cameras). If you are in Play mode, this button is used to
rewind slowly (press once) or quickly (press twice). If you are in Pause mode, this
button is used to rewind one frame at a time. If you are in Menu mode on a field
value, this button is used to display the previous field value. You can also perform
these functions by pressing the
PLAY
8
display the Playlist directory. If you are in the Playlist directory, this button is used to
select the highlighted video. If you are in Play mode, this button is used to either
toggle the video pause function on/off (press and release button) or display the Select
Source menu (press and hold button). If you are in Menu mode, this button is used to
move the cursor down. You can also perform these functions by pressing the
button on your Flashback monitor.
. The Fast Forward button. If you are in Play mode, this button is used to advance
FF
9
slowly (press once) or quickly (press twice). If you are in Pause mode, this button is
used to advance one frame at a time. If you are in Menu mode on a field value, this
button is used to display the next field value. If you are in Menu mode on a menu
screen, this button is used to select the highlighted menu option. You can also
perform these functions by pressing the
10 PWR
power to the unit (
in progress (
11 USB
name. For instructions on logging into the DVR, see "Logging into a DVR Using
Your USB Login Key" on page 26.
The Secure Digital (SD) card, used to temporarily store your Flashback videos until
12
they can be transmitted to your agency's application server or PC.
13
SD CARD
DVR DOOR
14
Flashback menu. This door can only be opened with a key. Depending on your
agency's policies, only a limited number of supervisors and/or IT personnel may
have access to this key. To access the DVR menu options, this door must be open. To
record or play back a video, this door must be closed and locked.
