DVR Specifications
Frame Rate set to
'Normal Record'
Frame Rate set to
'Background Record'
Recording Duration
Power requirements
Standby Current
Operating Temperature
DVR Connections
DVR Dimensions
Flashback3 & Flashback HD User's Guide
L3 Mobile-Vision  6.23.2017

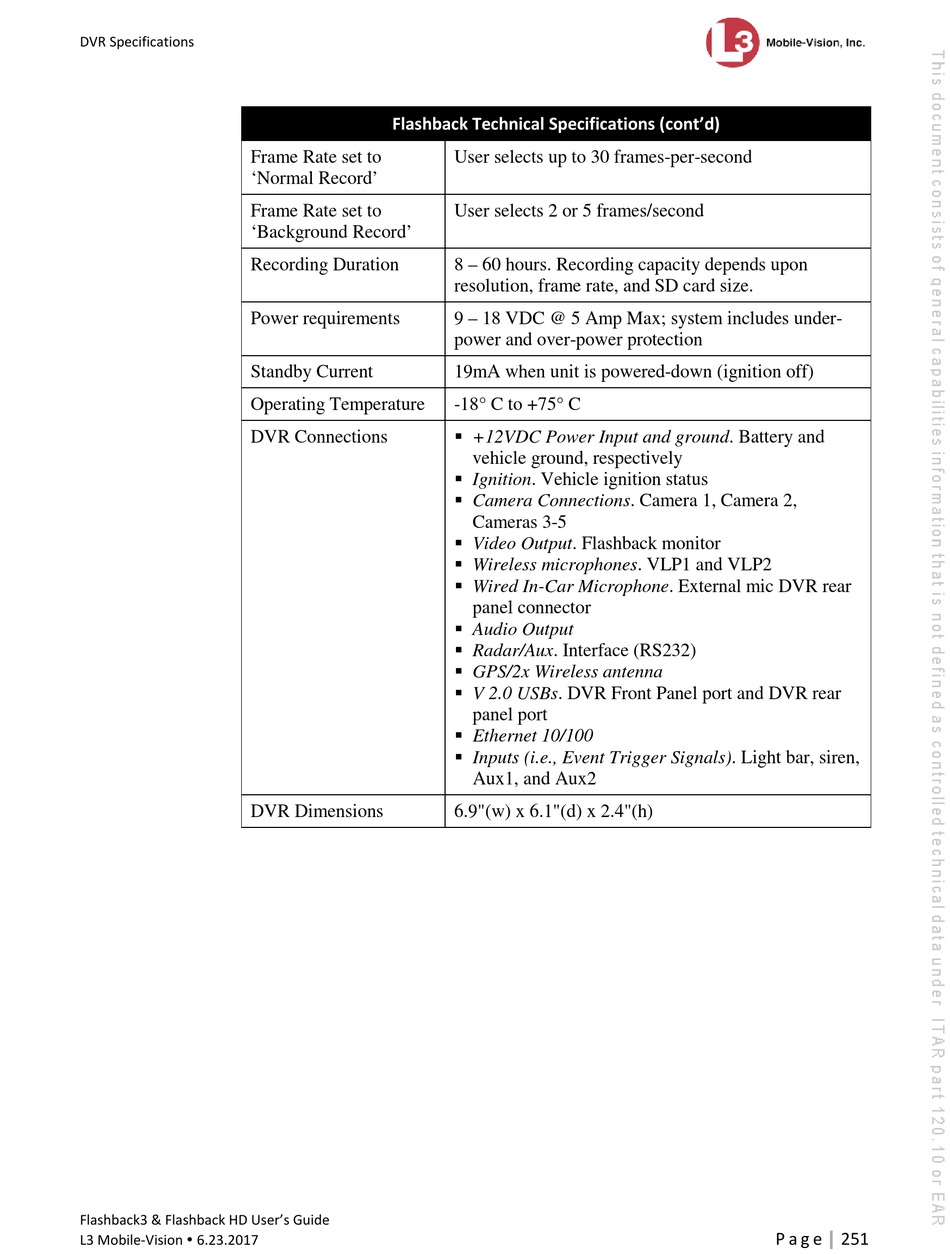

Flashback Technical Specifications (cont'd)
User selects up to 30 frames-per-second
User selects 2 or 5 frames/second
8 – 60 hours. Recording capacity depends upon
resolution, frame rate, and SD card size.
9 – 18 VDC @ 5 Amp Max; system includes under-
power and over-power protection
19mA when unit is powered-down (ignition off)
-18° C to +75° C
 +12VDC Power Input and ground. Battery and
vehicle ground, respectively
 Ignition. Vehicle ignition status
 Camera Connections. Camera 1, Camera 2,
Cameras 3-5
 Video Output. Flashback monitor
 Wireless microphones. VLP1 and VLP2
 Wired In-Car Microphone. External mic DVR rear
panel connector
 Audio Output
 Radar/Aux. Interface (RS232)
 GPS/2x Wireless antenna
 V 2.0 USBs. DVR Front Panel port and DVR rear
panel port
 Ethernet 10/100
 Inputs (i.e., Event Trigger Signals). Light bar, siren,
Aux1, and Aux2
6.9"(w) x 6.1"(d) x 2.4"(h)
