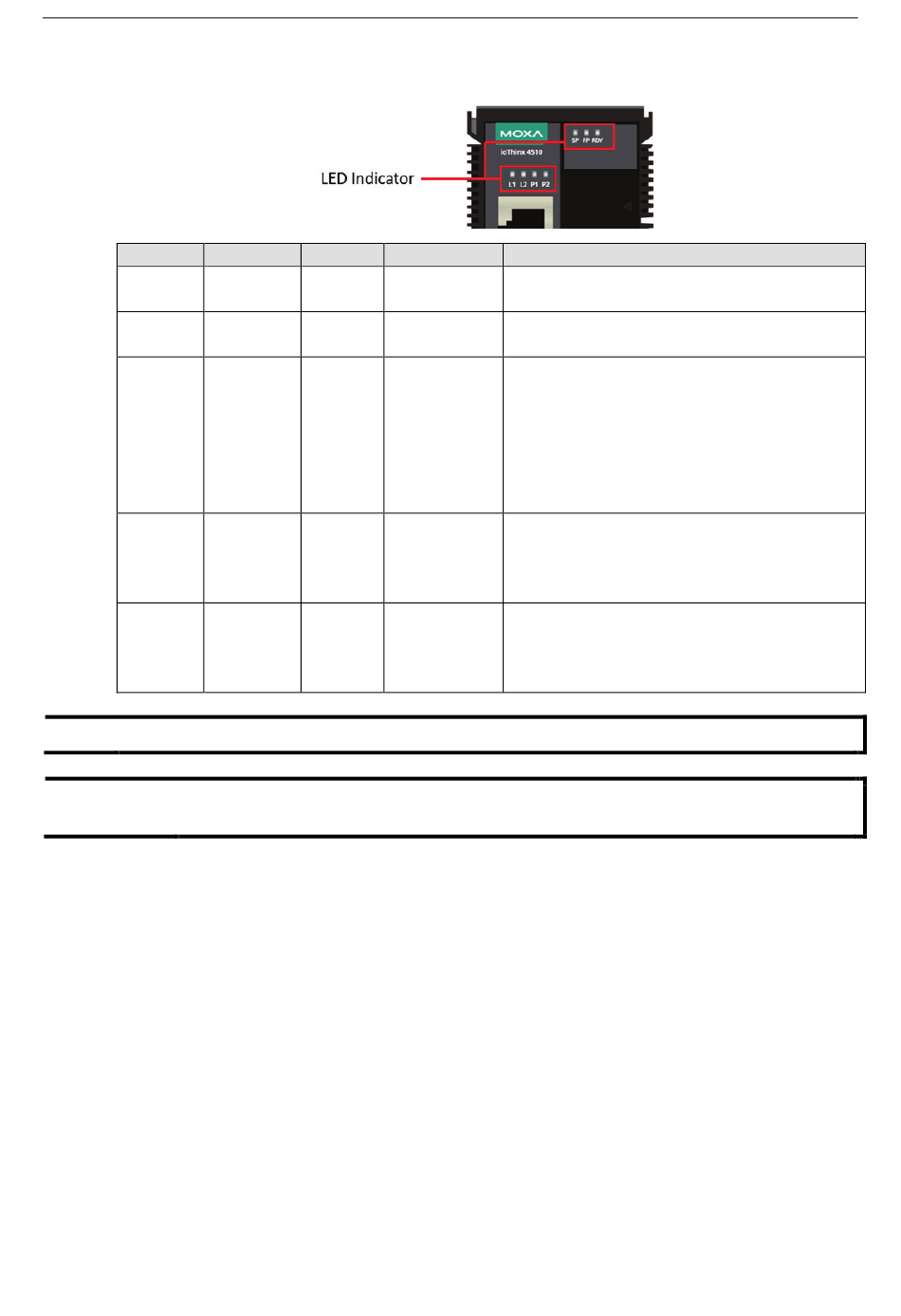

LED Indicators

Labeling Indication
System
SP
Power
FP Field Power
System
RDY
(Kernel)
L1/L2 Ethernet
P1/P2 Serial
NOTE
DO NOT DISCONNECT THE POWER OR NETWORK CABLE when the RDY LED is blinking slowly.
INFORMATION Refer to Failed to Enter System Ready Mode in the troubleshooting section for addition
information about the system recovery process.
LED Qty LED Color
1 Green
1 Green
1 Green/Red
1 for each Green/Amber
1 for each Green/Amber
2-4
LED Action
On: power on
Off: power off
On: power on
Off: power off
Green: system ready
Green slow blinking: booting up
Red: system error or module mismatch
Red slow blinking: loading factory default settings,
upgrading firmware, or system recovery
Red fast blinking: safe mode
Off: power off
Green: 100 Mbps
Amber: 10 Mbps
Blinking: data transmitting
Off: disconnected
Green: Tx
Amber: Rx
Non-simultaneous blinking: data transmitting
Off: disconnected or no data transmitting
