ioThinx 4510 Series Software Tools

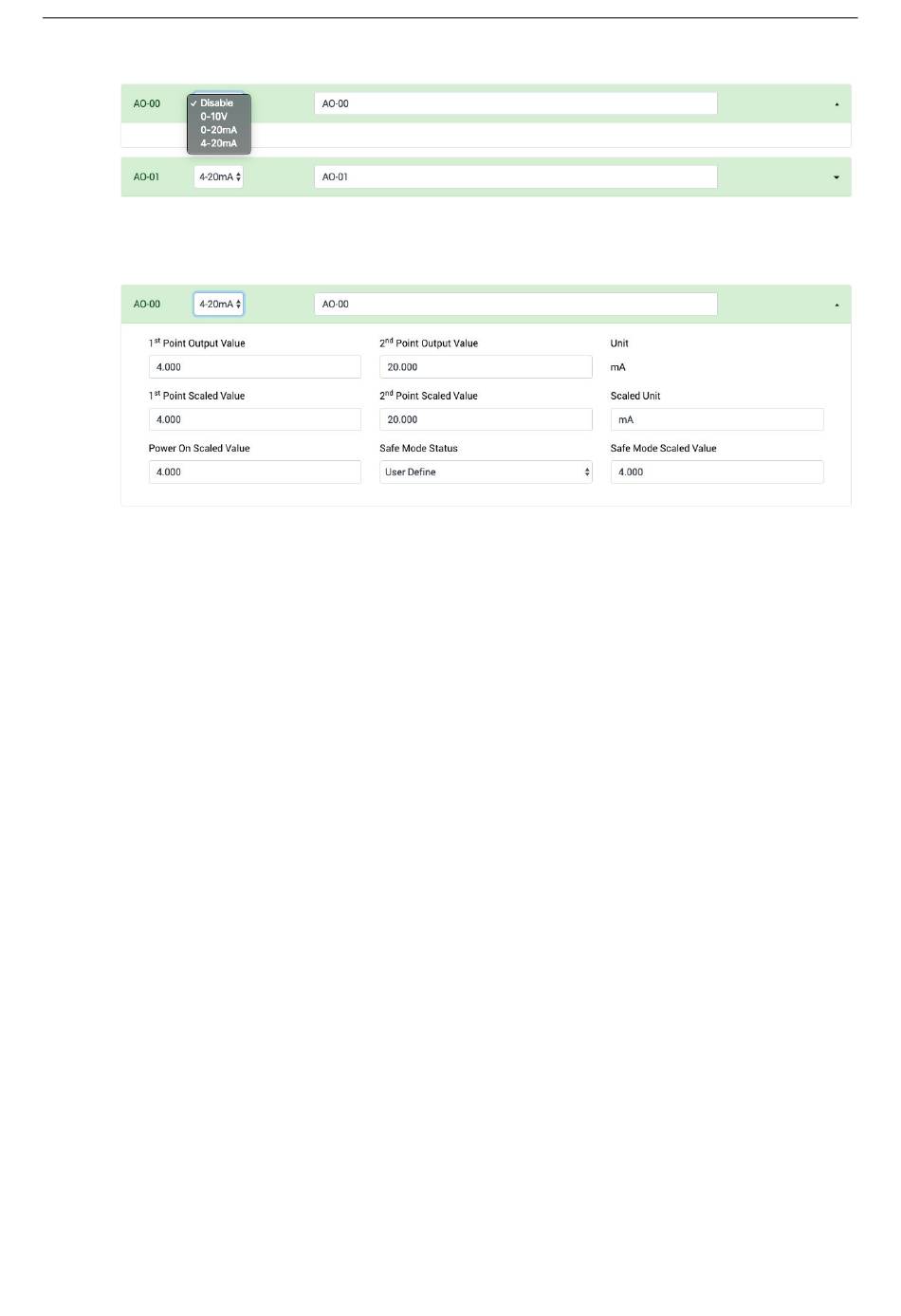

Disable Mode
Disable the AO channel. Channels must be disabled one-by-one.
0-10 V/0-20 mA/4-20 mA Mode
1st Point Output Value: The 1 st point value in the range of channel mode to be scaled to the 1st Point
Scaled Value (range: 0-20 mA mode: 0.000 to 20.000, 4-20 mA mode: 4.000 to 20.000, 0-10V mode:
0.000 to 10.000).
2nd Point Output Value: The 2 nd point value in the range of channel mode to be scaled to the 2nd Point
Scaled Value (range: 0-20 mA mode: 0.000 to 20.000, 4-20 mA mode: 4.000 to 20.000, 0-10V mode:
0.000 to 10.000).
Unit: The unit of the output value.
1st Point Scaled Value: The scaled value of the 1
st point (range: -4294967295 to 4294967295).
2nd Point Scaled Value: The scaled value of the 2
nd point (range: -4294967295 to 4294967295).
Scaled Unit: The unit of the scaled value (max. length = 8, "." character is not allowed).
Power On Scaled Value: The AO scaled value upon powering on.
Safe Mode Status: There are two options for defining the safe mode value: User Define and Hold Last.
Safe Mode Value: The safe mode AO scaled value when the Safe Mode Status is set to User Define.
4-22
