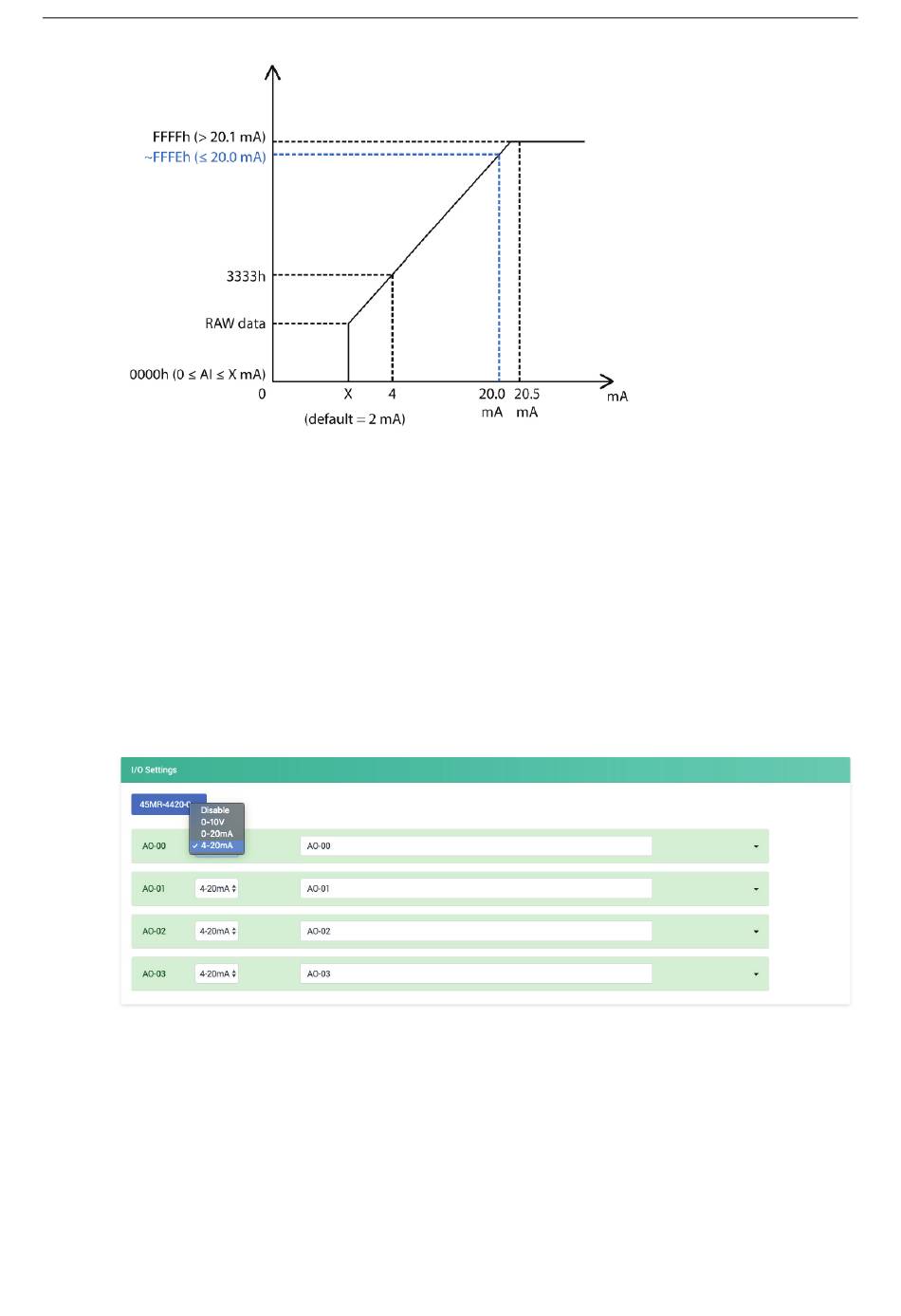

1st Point Measured Value: The 1 point value in the range of channel mode to be scaled to the 1st Point
st
Scaled Value (unit: mA, 4.000 to 20.000).
2nd Point Measured Value: The 2 point value in the range of channel mode to be scaled to the 2nd
nd
Point Scaled Value (unit: mA, 4.000 to 20.000).
Unit: The unit of the measured value.
1st Point Scaled Value: The scaled value of the 1
st point (-4294967295 to 4294967295).
2nd Point Scaled Value: The scaled value of the 2
nd point (-4294967295 to 4294967295).
Scaled Unit: The unit of the scaled value (max. length = 8, "." character is not allowed).
Analog Output Channel Settings
Channel Mode Drop-down List: It lists all of the channel modes which can be operated by this channel.
Select Disable, 0-10 V, 0-20 mA, or 4-20 mA for each channel.
Channel Name: The channel name is used to represent this channel (max. length = 16, "." character is not
allowed).
