ioThinx 4510 Series Software Tools

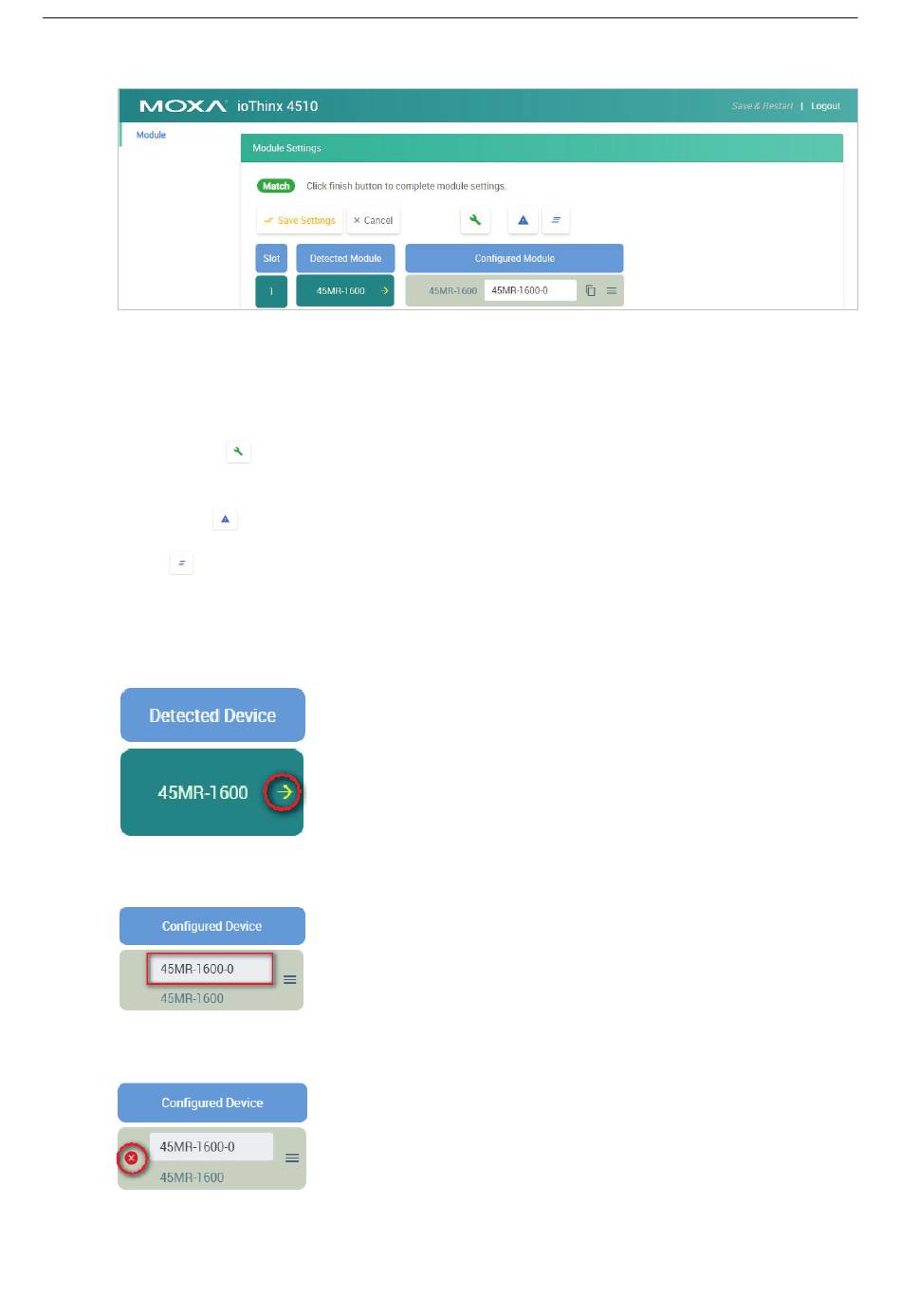

Edit: Click this button to enter edit mode.
Save Settings: This button only appears in edit mode. Click this button to finish module settings and exit
edit mode.
Cancel: This button only appears in edit mode. Click this button to cancel module settings and exit edit
mode.
Auto Matching : Click this button to automatically match all configured modules with all detected
modules.
Load Default : Click this button to load the default settings of all configured modules.
Reload : Click this button to reload the module settings before entering edit mode.
Slot: The slot position of the detected module.
Detected Module: The physical module detected by the system. The yellow arrow allows you to insert the
specific module into the configured module.
Configured Module: The module settings for the detected module. A unique module name is required in
the textbox (max. length = 16, "." character is not allowed).
The delete icon appears when you place your mouse over the place indicated below. It allows you to delete
the configured module.
