ioThinx 4510 Series
Software Tools

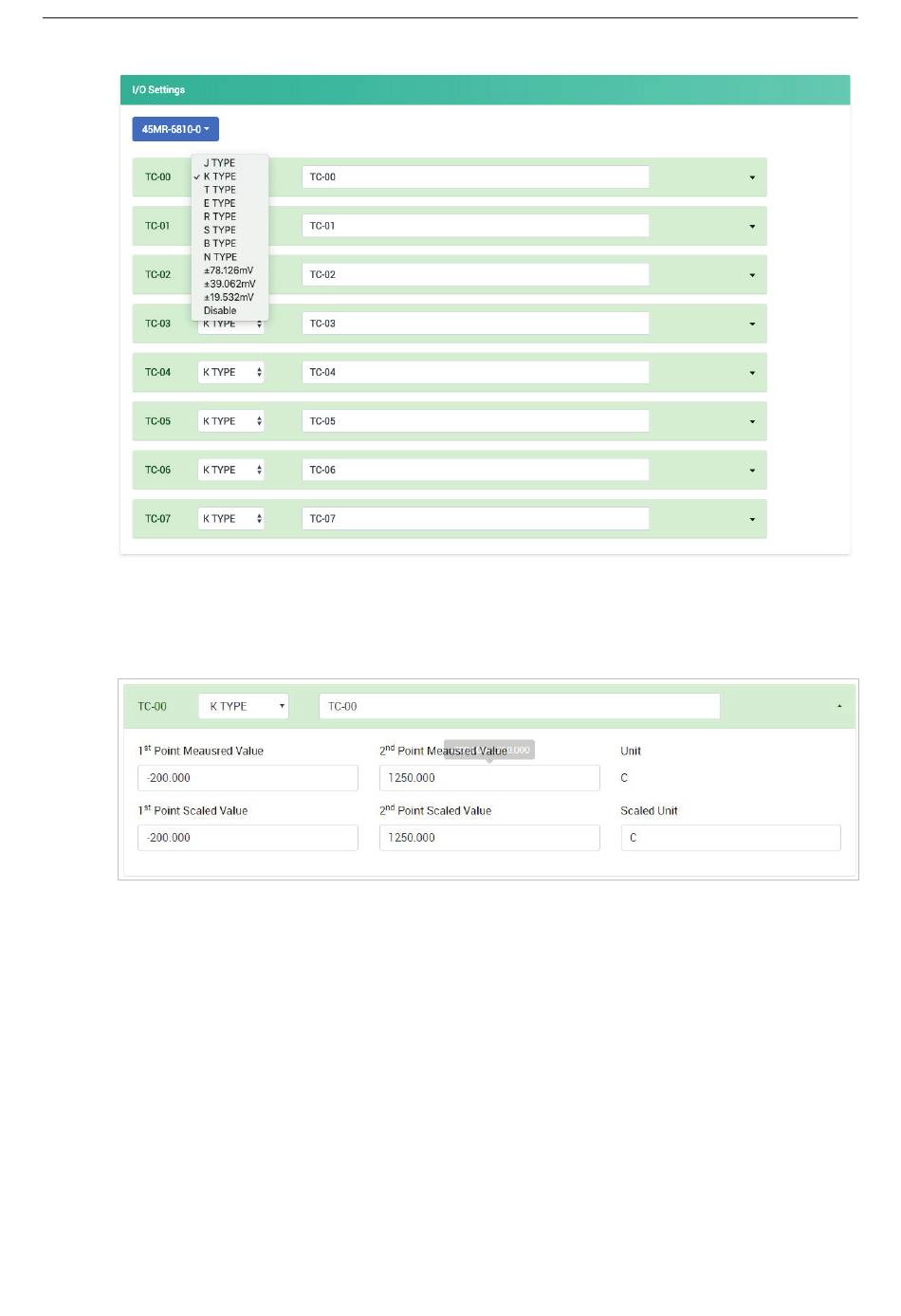

Disable Mode
The TC channel can be disabled. You may only disable channels one-by-one. When a channel has been
disabled, the sample rate of the remaining channels will be increased automatically.
Channel Name: The channel name is used for representing this channel (max. length = 16, "." character is
not allowed).
1st Point Measured Value: The 1
point value in the range of the channel mode to be scaled to the 1st
st
Point Scaled Value (acceptable input value depends on the type of sensor).
2nd Point Measured Value: The 2
point value in the range of the channel mode to be scaled to the 2nd
nd
Point Scaled Value (acceptable input value depends on the type of sensor).
Unit: The unit of the measured value.
1st Point Scaled Value: The scaled value of the 1
st
point (-4294967295 to 4294967295).
2nd Point Scaled Value: The scaled value of the 2
point (-4294967295 to 4294967295).
nd
Scaled Unit: The unit of the scaled value (max. length = 8, "." character is not allowed).
4-25
