Moxa Technologies ioLogik E1210 Quick Installation Manual

ioLogik E1200 Series
Quick Installation Guide
Second Edition, February 2011

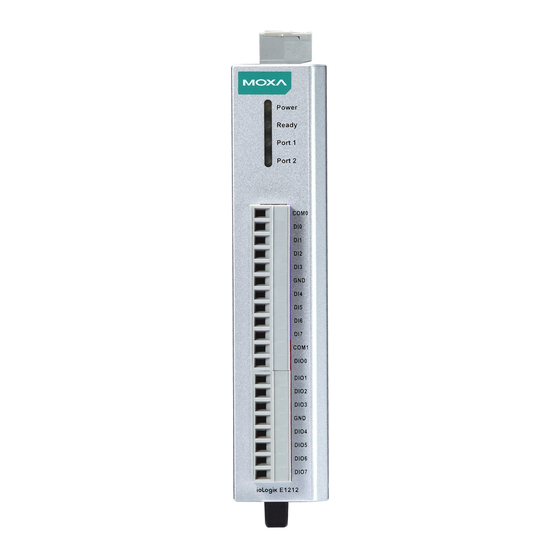

1. Overview
The ioLogik E1200 series comes with 2 embedded Ethernet switch
ports that can form a daisy-chain topology, which is the easiest
way to add more Ethernet devices to a network or connect your
ioLogiks in series. Moxa's free Active OPC Server offers active (or
"push") communication that works between Moxa's ioLogik units
and HMI/SCADA systems, providing instant I/O status reports by
"Active Tags." The event-driven active tags result in an I/O
response time that is 7 times faster than other OPC Server
packages and an 80% reduction in network traffic.
Model Selection:
ioLogik DI DO DIO Relay AI
E1210 16 – – – –
E1211 – 16 – – –
E1212 8 – 8 – –
E1214 6 – – 6 –
E1240 – – – – 8
E1241 – – – – –
E1242 4 – 4 – 4
E1260 – – – – –
E1262 – – – – –
Package Checklist
• 1 ioLogik E1200 series remote I/O product
• Documentation and software CD
• Quick installation guide (printed)
2. Specifications
System
Ethernet: 2 x 10/100 Mbps switch ports, RJ45
Protection: 1.5 KV magnetic isolation
Protocols: Modbus/TCP, TCP/IP, UDP, DHCP, Bootp,
HTTP
Power Input: 24 VDC nominal, 12 to 36 VDC
Wiring: I/O cable max. 14 AWG
Dimensions: 27.8 x 124 x 84 mm (1.09 x 4.88 x 3.31 in)
Weight: under 200 g
P/N: 1802012001011
– 1 –
Operating
Temperature:
Operating
Temperature:
Storage Temperature: -40 to 85°C (-40 to 185°F)
Ambient Relative
Humidity:
Altitude:
Note: Please contact Moxa if you require products guaranteed to
function properly at higher altitudes.
Standards and
Certifications:
Warranty Period:
Details:
*Because of the limited lifetime of power relay, products that use
this component are covered by a 2-year warranty.
Digital Input
Sensor Type:
I/O Mode:
Dry Contact:
Wet Contact:
AO RTD TC
– – –
Isolation:
– – –
Counter/Frequency:
– – –
Digital Output
– – –
I/O Mode:
– – –
Pulse Wave
4 – –
Width/Frequency:
– – –
Over-voltage
– 6 –
Protection:
– – 8
Over-current
Protection:
Over-temperature
Shutdown:
Current Rating:
Isolation:
Relay Output
Type:
Contact Rating:
Inductance Load:
Resistance Load:
Breakdown Voltage:
Relay On/Off Time:
Initial Insulation
Resistance:
Expected Life:
Initial Contact
Resistance:
Pulse Output:
Standard Models: -10 to 60°C (14 to
140°F)
Wide Temperature Models: -40 to 75°C
(-40 to 167°F)
5 to 95% (non-condensing)
Up to 2000 m
UL 508, CE, FCC Class A
5 years (excluding ioLogik E1214*)
See www.moxa.com/warranty
NPN, PNP, and Dry contact
DI or Event Counter
• Logic 0: short to GND
• Logic 1: open
• Logic 0: 0 to 3 VDC
• Logic 1: 10 to 30 VDC (DI COM to DI)
3K VDC or 2K Vrms
250 Hz, power off storage
DO or Pulse Output
1 ms/500 Hz
45 VDC
2.6 A (4 channels @650 mA)
175°C (typical), 150°C (min.)
200 mA per channel
3K VDC or 2K Vrms
Form A (N.O.) relay outputs, 5A
5 A @ 30 VDC, 5 A @ 250 VAC, 5 A @ 110
VAC
2 A
5 A
500 VAC
1500 ms (Max.)
1G min. @ 500 VDC
100,000 times (Typical)
30 milli-ohms (Max.)
0.3 Hz at rated load
– 2 –
Analog Input
Type: Differential input
Resolution: 16 bits
I/O Mode: Voltage / Current
Input Range: 0 to 10 VDC, 4 to 20 mA
Accuracy: ±0.1% FSR @ 25°C
±0.3% FSR @ -10 and 60°C
±0.5% FSR @ -40 and 75°C
Sampling Rate (all 12 samples/sec
channels):
Input Impedance: 10M ohms (minimum)
Built-in Resistor for 120 ohms
Current Input:
Analog Output
Resolution: 12 bits
Output Range: 0 to 10 VDC, 4 to 20 mA
Voltage Output: 10 mA (Max.)
Accuracy: ±0.1% FSR @ 25°C
±0.3% FSR @ -40 and 75°C
Load Resistor: • Internal power: 400 ohms
• External 24V power: 1000 ohms
RTD
Input Type: PT50, PT100, PT200, PT500, PT1000;
Resistance of 10 ohms, 20 ohms, and 100
ohms
Sampling Rate: 12 samples/sec (all channels)
Resolution: 16 bits
Accuracy: ±0.1% FSR @ 25°C
±0.3% FSR @ -40 and 75°C
Input Impedance: 625K ohms
Thermocouple Input
Sensor Type: J, K, T, E, R, S, B, N
Mili Volt Type: ±78.126 mV, ±39.062 mV, ±19.532 mV
Fault and Overvoltage ±35 VDC (power off); +30 VDC, -25 VDC
protection: (power on)
Sampling Rate: 12 samples/sec (all channels)
Resolution: 16 bits
Accuracy: ±0.1% FSR @ 25°C
±0.3% FSR @ -40 and 75°C
Input Impedance: 10M ohms
3. Installation
Power and Networking
Connect the +12 to +36 VDC power line to the ioLogik E1200's
terminal block V+ terminal; connect the ground from the power
supply to the V- terminal. Connect the ground pin (
ground is available.
– 3 –
) if earth
