Digital Input Channel Settings

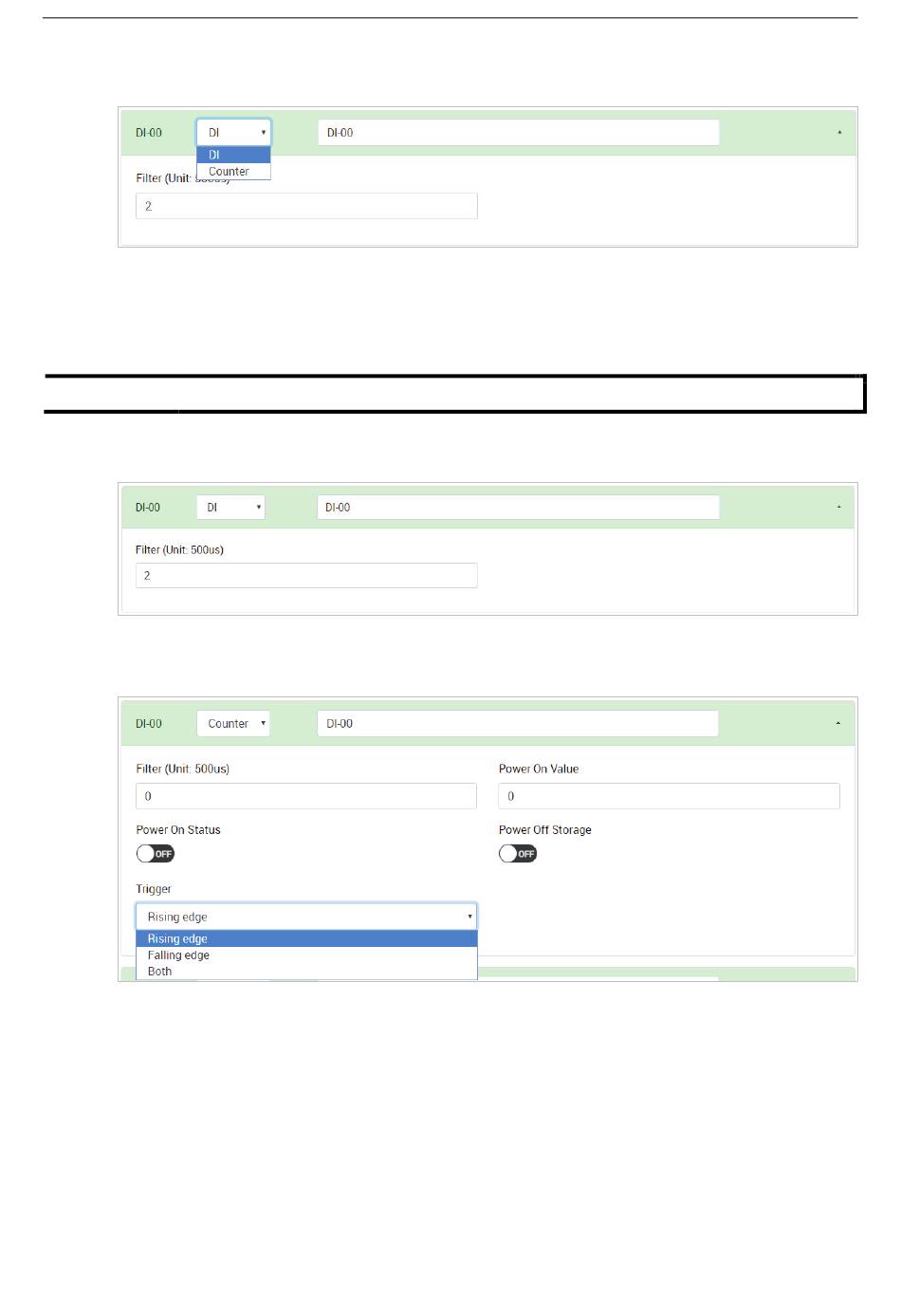

Channel Mode Drop-Down List: It lists all of the channel modes, which can be operated by this channel.
Select DI or Counter mode for each channel (option: DI or Counter).
Channel Name: The channel name is used for representing this channel (max. length = 16, "." character is
not allowed).
INFORMATION Every channel in each module must have a different name.
DI Mode
Filter: Software filtering is used to avoid switch bounces (unit: 500μs, 0 to 65535).
Counter Mode
Filter: Software filtering is used to avoid switch bounces (unit: 500μs, 0 to 65535).
Power on Value: The initial counter value upon powering up (0 to 4294927695).
Power on Status: The counter status upon powering up (option: ON or OFF).
Power off Storage: Save counter value to memory during powering off. The saved value will be the initial
value upon next powering up (option: ON or OFF).
Trigger: The channel accepts limit or proximity switches and counts events according to the ON/OFF status.
When Rising edge is selected, the counter value increases when the attached switch is pushed. When
Falling edge is selected, the counter value increases when the switch is released. When Both is selected,
the counter value increases when the attached switch is pushed or released (option: Rising edge, Falling
edge, or Both).
