Connecting The Field Power Ground - Moxa Technologies ioThinx 4510 Series User Manual

ioThinx 4510 Series
CAUTION
For surge protection, connect the DIN rail to earth ground.

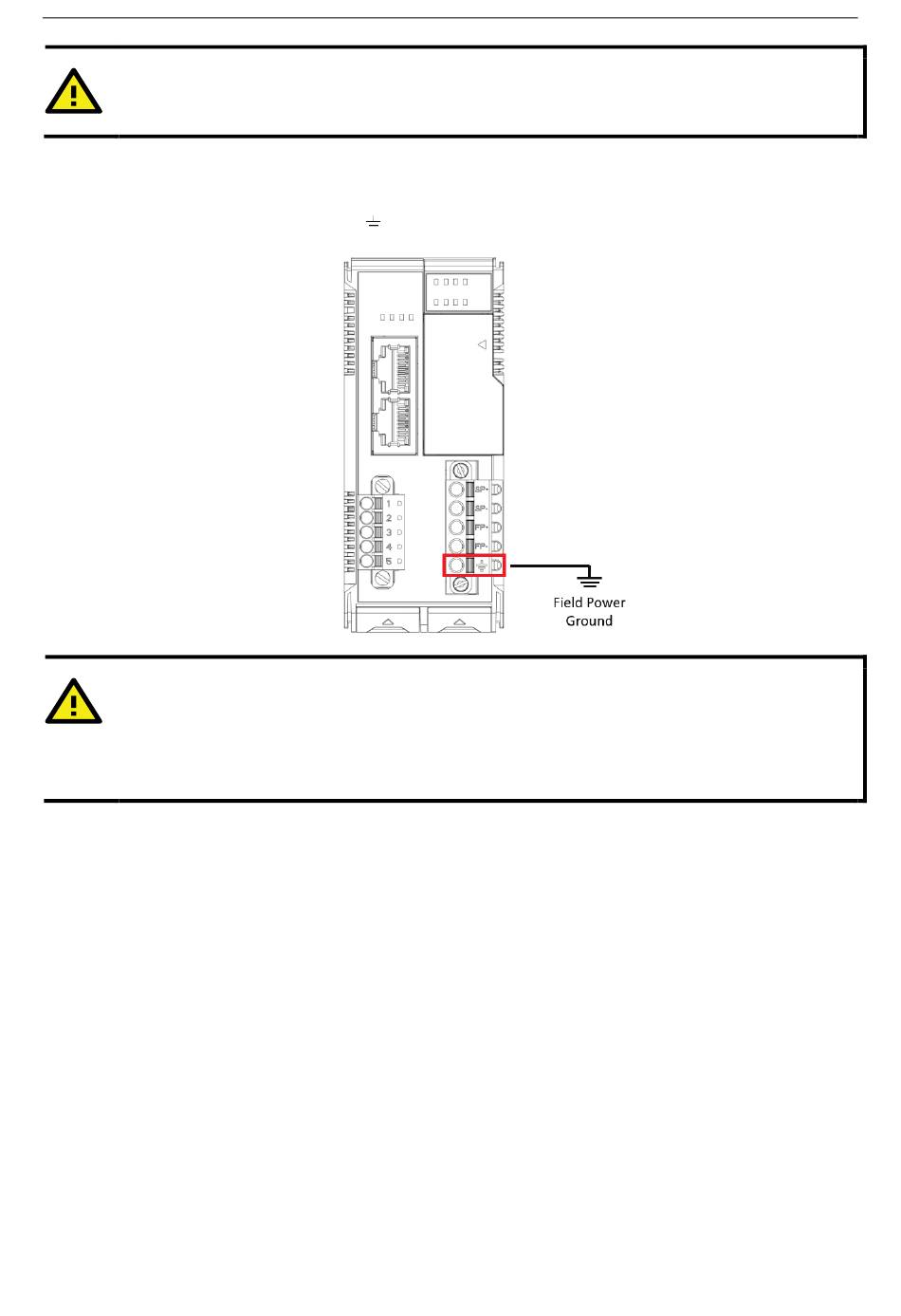

Connecting the Field Power Ground

Connect the field power ground pin (
CAUTION
Be sure to note the maximum possible current for each power wire and common wire. Observe all electrical
codes dictating the maximum current allowable for each wire size. If currents exceed the maximum rating,
the wires will overheat, which could cause serious damage to your equipment. For safety reasons, we
recommend using 2 mm diameter wire to connect to the power supply (e.g., 12 AWG).
) to your field power ground.
3-5
Hardware Installation
