ioThinx 4510 Series
NOTE Not all DO channels support pulse mode. Refer to the ioThinx 4500 Series (45MR) Modules datasheet
for detailed specifications.

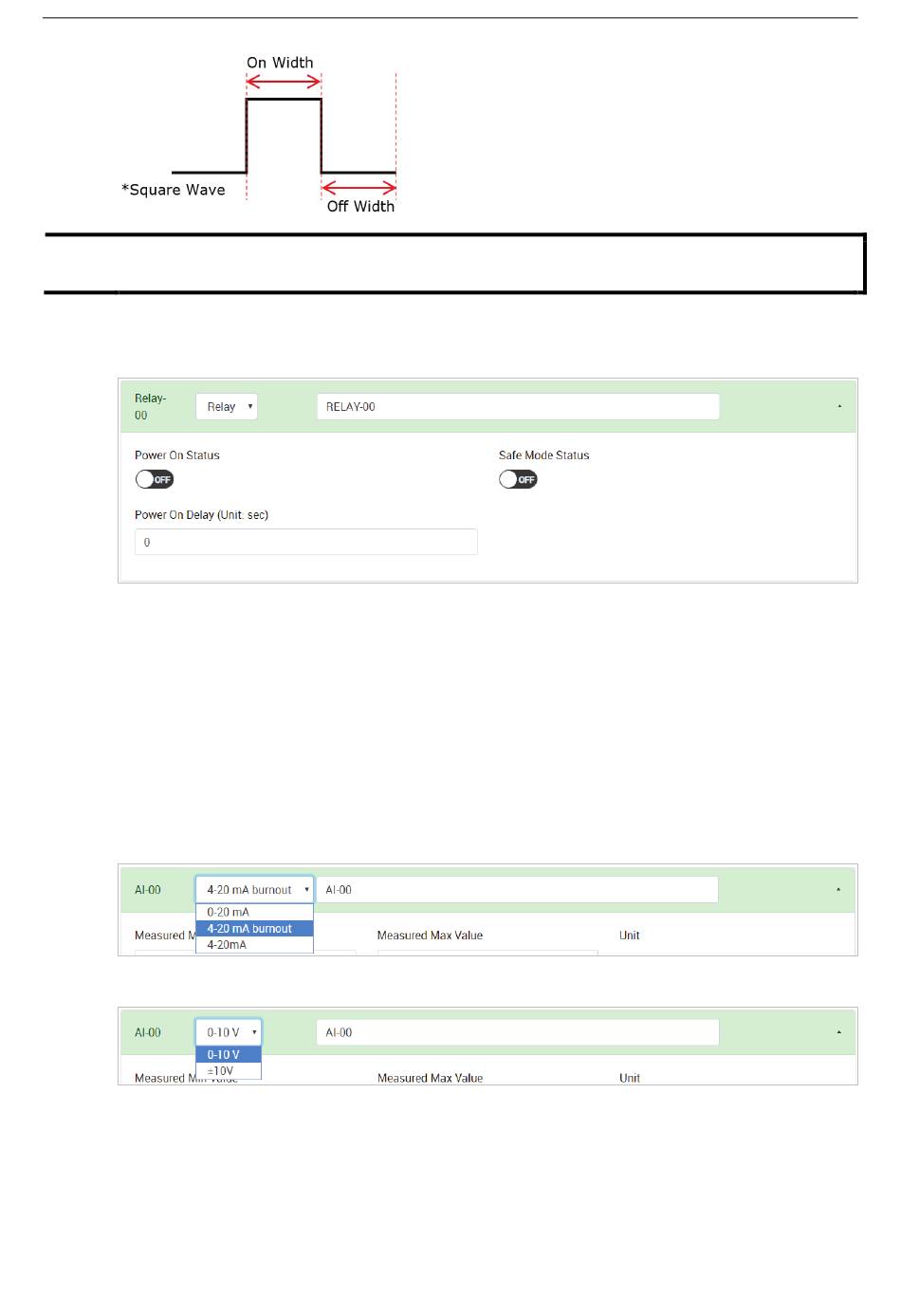

Relay Channel Settings
Channel Name: The channel name is used for representing this channel (max. length = 16, "." character is
not allowed).
Power on Status: The Relay status upon powering up (option: ON or OFF).
Safe Mode Status: The Relay status when the device is in safe mode (option: ON or OFF).
Power on Delay: The time delay before triggering Power on Status after powering up (unit: sec(s), 0 to
65535).
Analog Input Channel Settings
Current Module
Voltage Module
Channel Mode Drop-Down List: It lists all of the channel modes, which can be operated by this channel.
Select 0-20 mA, 4-20 mA burnout, or 4-20 mA mode for each channel of the current module. Select 0-
10 V or ±10 V mode for each channel of the voltage module.
Channel Name: The channel name is used for representing this channel (max. length = 16, "." character is
not allowed).
4-19
Software Tools
