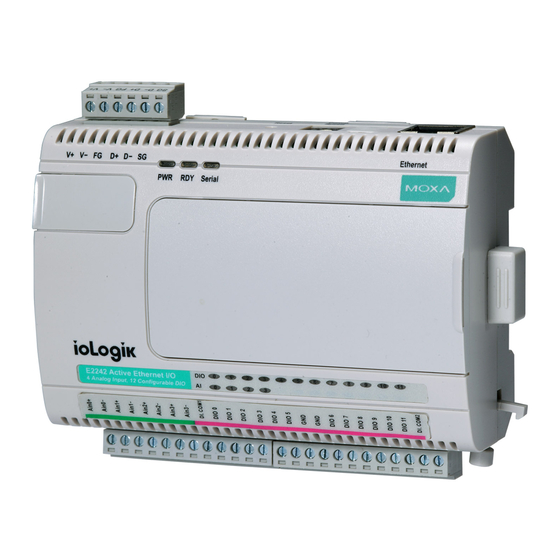

ioLogik E2200 Series
Quick Installation Guide
Moxa Americas:
Toll-free: 1-888-669-2872
Tel:
1-714-528-6777
Fax:
1-714-528-6778
Moxa Europe:
Tel:
+49-89-3 70 03 99-0
Fax:
+49-89-3 70 03 99-99
Moxa India:
Tel:
+91-80-4172-9088
Fax:
+91-80-4132-1045
Smart Ethernet Remote I/O
Edition 1.0, January 2019
Technical Support Contact Information
www.moxa.com/support
2019 Moxa Inc. All rights reserved.
Moxa China (Shanghai office):
Toll-free: 800-820-5036
Tel:
+86-21-5258-9955
Fax:
+86-21-5258-5505
Moxa Asia-Pacific:
Tel:
+886-2-8919-1230
Fax:
+886-2-8919-1231
P/N: 1802022000010
*1802022000010*
Advertisement
Table of Contents
Related Manuals for Moxa Technologies ioLogik E2200 Series
Summary of Contents for Moxa Technologies ioLogik E2200 Series

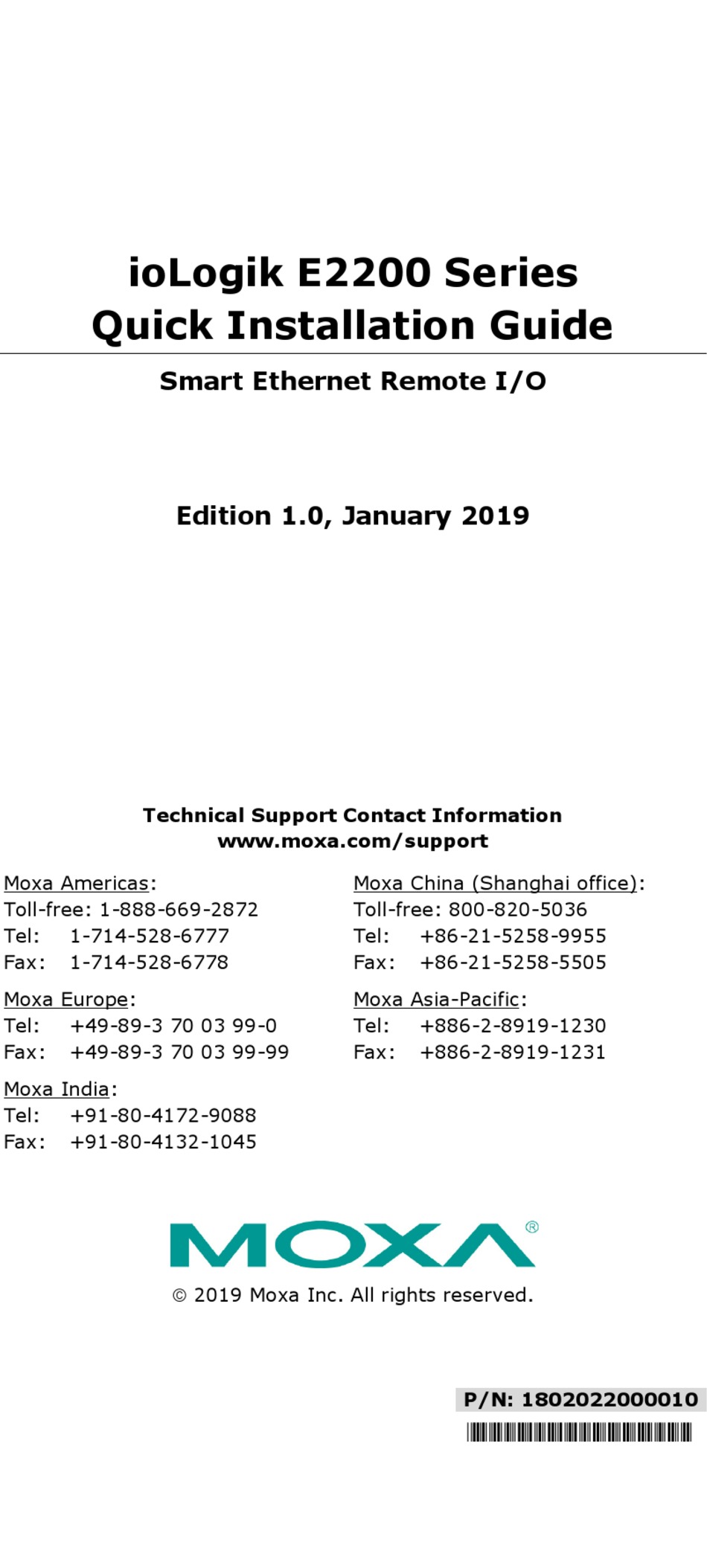

- Page 1 E2200 Series Quick Installation Guide Smart Ethernet Remote I/O Edition 1.0, January 2019 Technical Support Contact Information www.moxa.com/support Moxa Americas: Moxa China (Shanghai office): Toll-free: 1-888-669-2872 Toll-free: 800-820-5036 Tel: 1-714-528-6777 Tel: +86-21-5258-9955 Fax: 1-714-528-6778 Fax: +86-21-5258-5505 Moxa Europe: Moxa Asia-Pacific:...
- Page 2 Package Checklist • 1 ioLogik E2200 series remote I/O product • Quick installation guide (printed) • LDP1602 LCD Module (Optional) Specifications Ethernet Interface 10/100BaseT(X) Ports (RJ45 connector) Magnetic Isolation 1.5 kV (built-in) Protection Ethernet Software Features Configuration Options Web Console (HTTP), Windows Utility...
- Page 3 Environmental Limits Operating Temperature Standard Models: -10 to 60°C (14 to 140°F) Wide Temp. Models: -40 to 75°C (-40 to 167°F) Storage Temperature -40 to 85°C (-40 to 185°F) (package included) Ambient Relative 5 to 95% (non-condensing) Humidity Altitude 2000 m (Please contact Moxa if you require products guaranteed to function properly at higher altitudes.) LED Indicators...
- Page 4 I/O Wiring Diagrams Contact Type Power Source Requirement A dry Contact does not need to be connected to a Dry Contact power source to function properly.* A wet Contact must be connected to a power source Wet Contact to function properly. *Some users connect dry contacts to a power source for added stability.
- Page 5 Mounting There are two ways to mount the ioLogik E2200 Series: DIN rail or wall mounting. • Mounting on a DIN rail Pull out the bottom slider; latch the unit onto the DIN rail, and then push the slider back in.
- Page 6 How to Download the Software Step 1: Click on the following link to open the Support & Downloads search tool: http://www.moxa.com/support/support_home.aspx?isSearchShow=1 Step 2: Type the model name in the search box or select a product from the drop down box and then click Search. Step 3: Click the Software Packages link to download the latest software for the product.
