Remote I/O
ioThinx 4510 Series
Advanced modular remote I/O adapter with built-in serial ports
Introduction

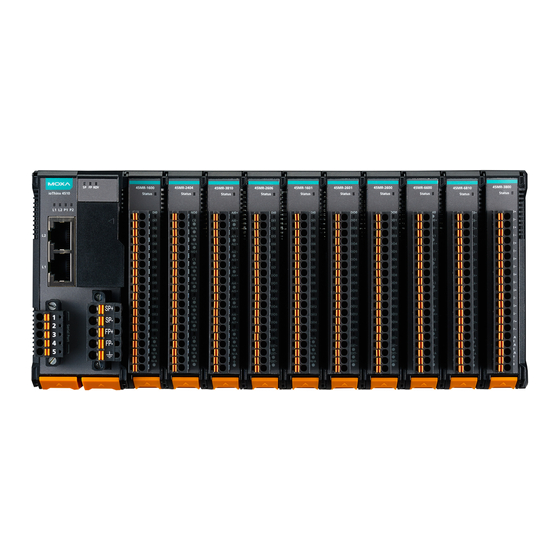

The ioThinx 4510 is an advanced modular remote I/O product with a
unique hardware and software design, making it an ideal solution for a
variety of industrial data acquisition applications.
The ioThinx 4510 has 2 Ethernet ports that support a daisy-chain
topology to save cabling cost, as well as 1 RS-232/422 port or 2
RS-485 (2-wire) ports to enable Modbus RTU to Modbus TCP/SNMP/
RESTful protocol conversion. In addition, the ioThinx 4510 supports
up to 32 I/O modules to help users collect data from field sites.

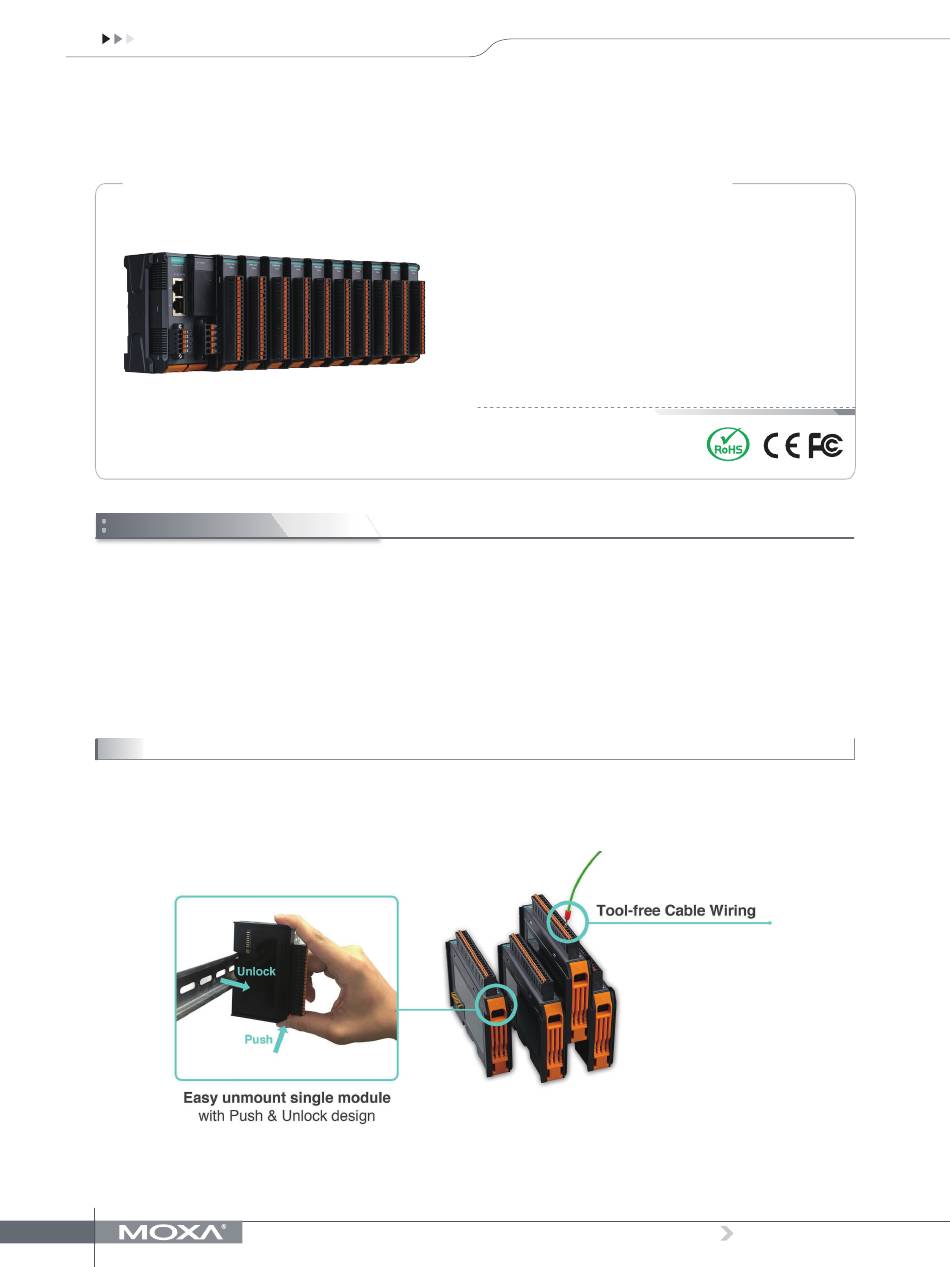

Easy Tool-Free Installation and Removal
The ioThinx 4500 Series has a unique mechanical design that reduces
the amount of time required for installation and removal. In fact,
screw drivers and other tools are not required for any part of the
hardware installation, including mounting the device on a DIN-rail, as
1
›
Easy tool-free installation and removal
›
Easy web configuration and reconfiguration
›
Built-in Modbus RTU gateway function
›
Supports Modbus/SNMP/RESTful API
›
Supports up to 32 I/O modules
›
Wide operating temperature models available for -40 to 75°C
(-40 to 167°F) environments
The ioThinx 4510 supports tool free installation and removal. With
its unique mechanical design, users can mount the module on the
DIN-rail and later remove it, all tool free. In addition, the ioThinx 4510
has new web user interface. Using the new friendly web design, users
can easily monitor the I/O status via the web dashboard and configure
I/O modules.
well as connecting the wiring for both communication and I/O signal
acquisition. Furthermore, no tools are required to remove the ioThinx
from a DIN-rail. Removing all of the modules from a DIN-Rail is also
easy using the latch and release tab.
w w w. m o x a . c o m

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the iothinx 4510 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Moxa Technologies iothinx 4510 Series

Summary of Contents for Moxa Technologies iothinx 4510 Series

  • Page 1 Remote I/O ioThinx 4510 Series Advanced modular remote I/O adapter with built-in serial ports › Easy tool-free installation and removal › Easy web configuration and reconfiguration › Built-in Modbus RTU gateway function › Supports Modbus/SNMP/RESTful API › Supports up to 32 I/O modules ›...
  • Page 2 Remote I/O Easy Web Configuration/Reconfiguration For modular remote I/O setups, one of the greatest difficulties is was designed specifically to make configuration and reconfiguration duplicating configuration settings to the current modules with different easy; no reconfiguration efforts required for the unchanged modules. module combinations.

  • Page 3: Specifications

    Remote I/O I/O to IT/OT Protocol Conversion The ioThinx 4510 does just what you need by supporting the most often-used protocols for retrieving I/O data. Most IT engineers use SNMPv1/v2c/v3 or RESTful API protocols, but IA engineers are more familiar with Operational Technologies (OT), such as Modbus. The ioThinx 4510 makes it possible for both IT and OT engineers to conveniently retrieve data from the same I/O device.

  • Page 4: Environmental Limits

    Remote I/O Environmental Limits Shock: IEC 60068-2-27 Vibration: IEC 60068-2-6 Operating Temperature: Altitude: Up to 4000 m Standard Models: -20 to 60°C (-4 to 140°F) Note: Please contact Moxa if you require products guaranteed to function Wide Temp. Models: -40 to 75°C (-40 to 167°F) properly at higher altitudes.

  • Page 5: Ordering Information

    Remote I/O Ordering Information Adapter Modules Package Checklist ioThinx 4510: Advanced I/O, Ethernet network adapter, 3-in-1 serial port(s), -20 to 60°C operating ioThinx 4510 temperature • 1 ioThinx 4510 product ioThinx 4510-T: Advanced I/O, Ethernet network adapter, 3-in-1 serial port(s), -40 to 75°C operating •...
  • Page 6 Remote I/O ioThinx 4500 Series (45MR) Modules 45MR-1600: Module for ioThinx 4500 Series, 16 DIs, 24 VDC, PNP Inputs and Outputs Physical Characteristics Digital Inputs: 16 channels Weight: 77 g (0.17 lb) Isolation: 3k VDC or 2k Vrms Power Consumption (Max.) Digital Input System Power: 59.4 mA @ 3.3 VDC...
  • Page 7 Remote I/O 45MR-2600: Module for ioThinx 4500 Series, 16 DOs, 24 VDC, sink Inputs and Outputs Power Consumption (Max.) Digital Outputs: 16 channels System Power: 57.2 mA @ 3.3 VDC Isolation: 3k VDC or 2k Vrms Field Power: 11 mA @ 12/24 VDC Digital Output MTBF (mean time between failures)

  • Page 8: Physical Characteristics

    Remote I/O 45MR-3800: Module for ioThinx 4500 Series, 8 AIs, 0 to 20 mA or 4 to 20 mA Inputs and Outputs Physical Characteristics Analog Inputs: 8 channels Weight: 79.8 g (0.176 lb) Isolation: 3k VDC or 2k Vrms (Max.) Power Consumption Analog Input System Power: 197.3 mA @ 3.3 VDC...

  • Page 9: Common Specifications

    Remote I/O 45MR-6810: Module for ioThinx 4500 Series, 8 TCs Inputs and Outputs Input Impedance: 1 mega-ohms (min.) Physical Characteristics Thermocouples: 8 channels Isolation: 3k VDC or 2k Vrms Weight: 78.4 g (0.173 lb) Thermocouple (Max.) Power Consumption Sensor Type: J (0 to 750°C), K (-200 to 1250°C), System Power: 148.1 mA @ 3.3 VDC T (-200 to 350°C), E (-200 to 900°C), R (-50 to MTBF...
  • Page 10 Remote I/O Dimensions Unit: mm (inch) 19.5 (0.77) 60.5 (2.38) 17.5 (0.69) 76.57 (3.01) © Moxa Inc. All rights reserved. Updated Nov. 21, 2018. Specifications subject to change without notice. Please visit our website for the most up-to-date product information.
