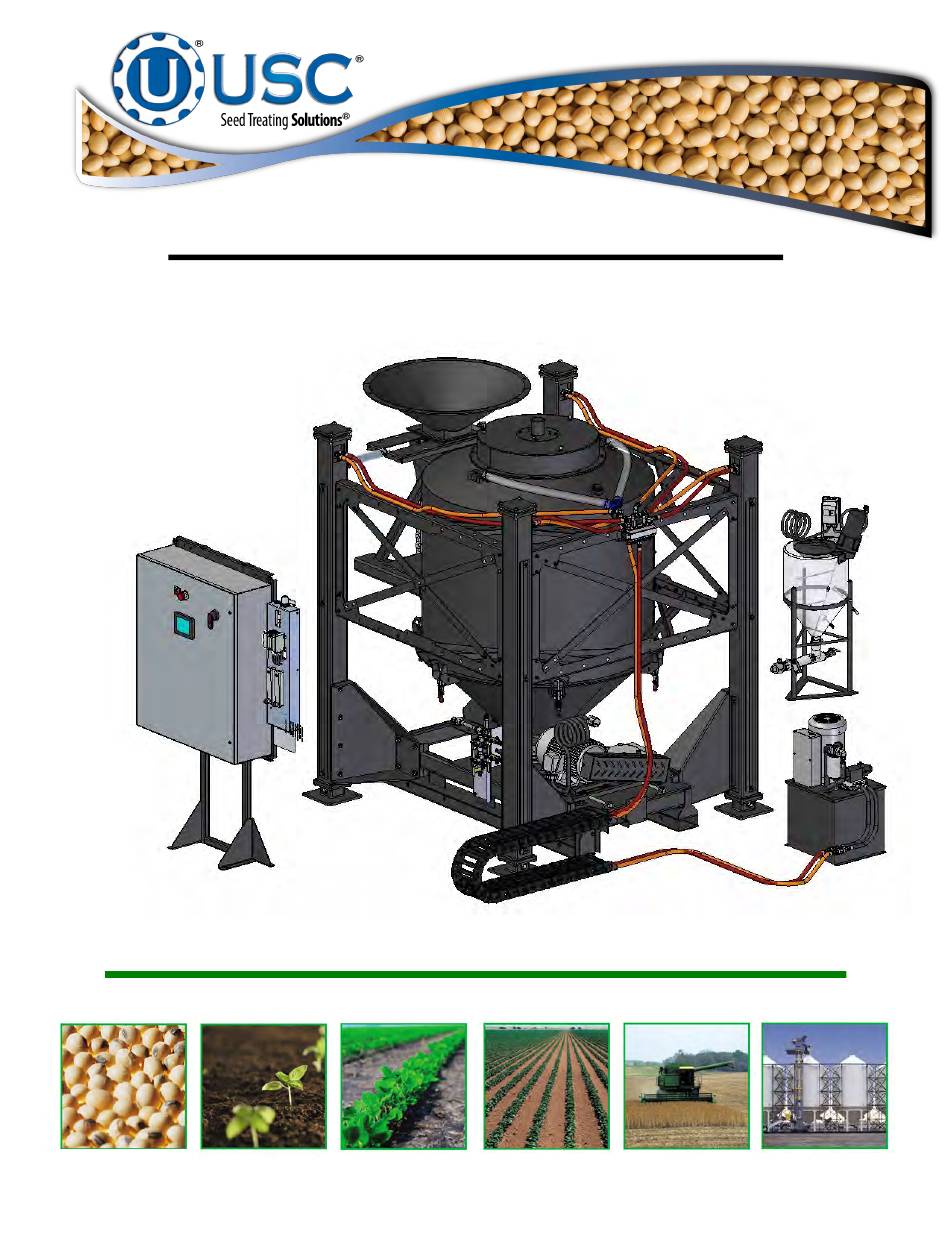

U-BATCH ™ TREATER
Operators Manual
Software Release: U-Batch™ v2.1
Document: TD-09-06-1040
Revision: C
2320 124th Road
Sabetha, Kansas 66534
PH: (785) 431-7900
FAX: (785) 431-7950
www.uscllc.com
Revision Effective 16 FEB 2018
