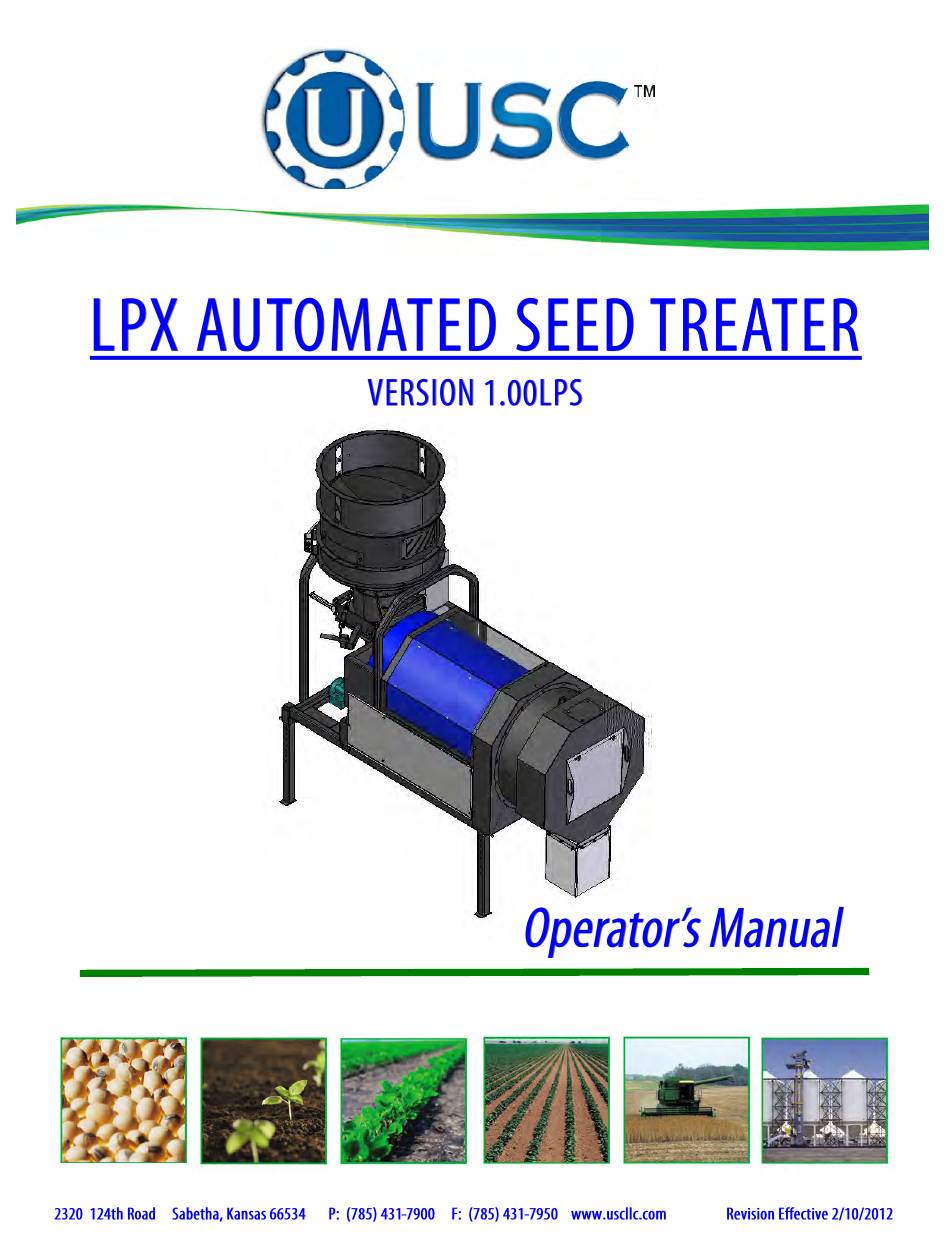

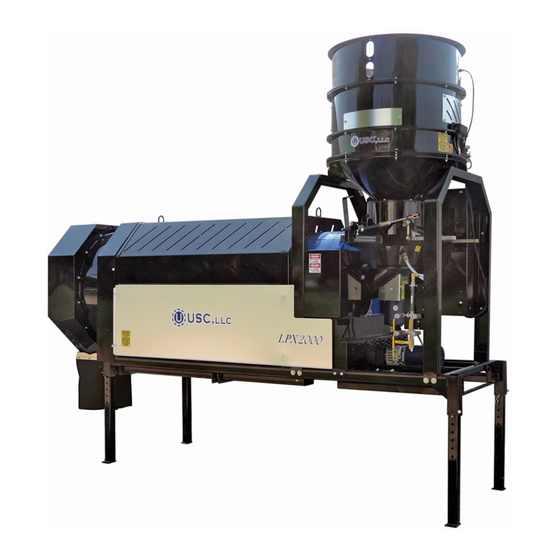

USC LPX Operator's Manual

Automated seed treater
Hide thumbs Also See for LPX:
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LPX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for USC LPX

Summary of Contents for USC LPX

  • Page 2 OVERVIEW The purpose of this manual is to provide you with the basic information needed to operate and maintain the LPX automated seed treater. It does not hold USC, LLC liable for any accidents or injuries that may occur. OPERATOR RESPONSIBILITIES...
  • Page 3 If there is any damage or shortages, the purchaser must immediately notify your USC dealer. Ownership passes to purchaser when the unit leaves the USC, LLC. premises. The purchaser is responsible for unloading and mounting all components of the equipment.

  • Page 4: Table Of Contents

    LPX AUTOMATED SEED TREATER Table of Contents Table of Contents Section Contents Page # Section A Safety Instructions ..............5 Section B Installation ................12 Section C Mechanical Operation .............. 16 Treater Overview ..............16 Supply Hopper & Seed Wheel ..........17 Atomizer Chamber &...

  • Page 5: Section A

    LPX AUTOMATED SEED TREATER Section Section Safety Instructions Safety Instructions Every year accidents in the work place maim, kill, and injure people. Although it may be impossible to prevent all accidents, with the right combination of training, operating practices, safety devices, and operator vigilance, the number of accidents can be significantly reduced.
  • Page 6 LPX AUTOMATED SEED TREATER Mandatory Lockout Power Symbol. Disconnect, lockout, and tagout electrical and other energy sources before inspecting, cleaning, or performing maintenance on this panel. International Safety Alert Symbol. The exclamation point (!) surrounded by a yellow triangle indicates that an injury hazard exists.
  • Page 7 LPX AUTOMATED SEED TREATER LOCKOUT / TAGOUT PROCEDURES Lockout/Tagout is the placement of a lock/tag on an energy isolating device in accordance with an established procedure. When taking equipment out of service to perform maintenance or repair work, always follow the lockout/tagout procedures as outlined in ANSI Z344.1 and/or OSHA Standard 1910.147.
  • Page 8 LPX AUTOMATED SEED TREATER YOU are responsible for the SAFE operation and maintenance of your USC, LLC Seed Treating System. YOU must ensure that you and anyone else who is going to operate, maintain, or work around the Seed Treating System be familiar with the operating and maintenance procedures and related SAFETY information contained in this manual.
  • Page 9 Then disable power source before servicing, adjusting, repairing, or unplugging. 8. Review safety related items annually with all personnel who will be operating or maintaining the LPX Series Seed Treater. OPERATING SAFETY: 1. Read and understand the Operator’s Manual and all safety signs before using.
  • Page 10 LPX AUTOMATED SEED TREATER PLACEMENT SAFETY 1. Move only with the appropriate equipment 2. Stay away from overhead power lines when moving Seed Treating System. Electrocution can occur without direct contact. 3. Be familiar with machine hazard area. If anyone enters hazard areas, shut down machine immediately.
  • Page 11 Small air pockets can be pierced with a pin and smoothed out using the piece of sign backing paper. Located on the USC equipment you will find safety labels. Always be sure to read and follow all directions on the labels.

  • Page 12: Section B

    SET-UP The following steps outline the initial set-up of your USC Seed Treating system: 1. Clear the area of bystanders, especially small children, before moving. 2. Be sure there is enough clearance from overhead obstructions and power lines or other equipment to move the machine into its working position.
  • Page 13 LPX AUTOMATED SEED TREATER 5. Install the four provided legs and set up on a level surface, preferably concrete. When all four legs are mounted in the same pin hole, the seed treater has a slight slope to allow seed to travel through the machine. The pin holes are approximately 2”...
  • Page 14 15. Connect a dedicated analog phone line to the modem located in the top right portion of the automated control panel. This will allow USC remote access to the seed treater to help diagnose situations that may arise. Page 14...
  • Page 15 USC system must be connected to the same electrical requirements as specified in the main control panel on the power requirement tag, or the electrical schematic shipped with the piece of equipment. This will power the USC LPX seed treater and any attached conveyors. Ethernet Printer Connection Connection 17.

  • Page 16: Section C

    LPX AUTOMATED SEED TREATER Section Section Mechanical Operation Mechanical Operation LPX TREATER OVERVIEW Supply Hopper Rotating Seed Wheel Drum Adjustable Seed Flow Gate Quick Release Atomizer Chamber Handle Discharge Chute Plumbing Main Treater To Atomizer Panel Drum Motor Adjustable Legs...

  • Page 17: Supply Hopper & Seed Wheel

    LPX AUTOMATED SEED TREATER SUPPLY HOPPER & SEED WHEEL The hopper is equipped with three proximity switches. The top switch controls the inlet conveyor and the lower switches, located in the seed wheel, control the pump(s). Refer to “H-O-A Screen” in section D and Section F: Troubleshooting;...

  • Page 18: Atomizer Chamber & Rotating Drum

    If this is done, a loss in seed coverage and chemical coating may occur. On the 6 and 8 foot drum options the LPX automated treater will also come standard with telescoping fork lift pockets. These pockets can be slid out from underneath the treater to allow a fork lift to pick up the treater from it’s discharge end.

  • Page 19: Pump Stand Overview

    LPX AUTOMATED SEED TREATER PUMP STAND OVERVIEW Seed Treatment Mix Tank Return Valve Motor 3 Way Air Actuated Valve Mix Tank Scale Head Flow Meter Mix Tank Calibration Tube Holders Drain Valve Pump Filter Seed Treatment Source Valve Scale Shipping...

  • Page 20: Mix Tank, Calibration Tube & Flow Meter

    3 extra ports which the operator can use to direct fill into the tank (see below). CALIBRATION TUBE The LPX automated pump stand may also be equipped with a calibration tube which is used to check the liquid flow rate. The calibration tube measures in ounces on a 0-340 scale.

  • Page 21: Pump

    LPX AUTOMATED SEED TREATER PUMP The LPX automated pump stand utilizes a variable speed peristaltic pump and special norprene pump tubing for liquid metering. The pump comes equipped with either 1, 2 or 3 heads. Liquid will only come into contact with the inside diameter of the pump tubing and not the pump.

  • Page 22: Pump Stand Valves

    LPX AUTOMATED SEED TREATER PUMP STAND VALVES Seed Treatment Source Valve: This valve controls where the pump is drawing liquid from. It allows liquid to be pulled from either the bottom of the mix tank or the calibration tube. Drawing chemical from the bottom of...
  • Page 23 LPX AUTOMATED SEED TREATER Seed Treatment Return Valve: This valve directs the liquid coming from the recirculation side of the Air Actuated 3-Way Valve to either fill the Calibration Tube or return to the Mix Tank. Proper calibration of the liquid system is critical to achieve a proper granular/ chemical mixture.

  • Page 24: Section D

    This section provides a general overview and description of the operator controls for the LPX Automated Seed Treater. General Panel Descriptions This system consists of three plug connected panels, one hard wired panel and two more optional plug connected panels: ...
  • Page 25 LPX AUTOMATED SEED TREATER Main Control Panel The following pages explain the function of the touch screen controls. USC STARTUP SCREEN While the system is booting up, the treater touch screen will display a timer. Once the timer reaches zero, this screen is the first screen the operator will see after the system receives power.

  • Page 26: Main Screen

    LPX AUTOMATED SEED TREATER MAIN SCREEN This screen informs the operator of the status of all system motors and electrical devices and allows for control/adjustment of system operations. Page 26 USC,...

  • Page 27: H-O-A Screen

    LPX AUTOMATED SEED TREATER Main Screen Button Descriptions 1. Seed Flow Rate: Displays the seed flow rate in pounds per minute. 2. Seed Type Indicator: Displays the type of seed has been selected in the “Product Selection” Screen. 3. Totalized Weight Display: Displays the total pounds of seed as it passes through the seed wheel.
  • Page 28 LPX AUTOMATED SEED TREATER 14. Atomizer Motor Status Indicator: Informs the operator if the atomizer motor is “ON” or “OFF.” 15. USC Logo Button: Allows the operator to exit back to the Startup screen. 16. STARTUP Button: This is used to start the machine after all motors have been placed into the AUTO position.
  • Page 29 LPX AUTOMATED SEED TREATER “H-O-A” (HAND-OFF-AUTO) SCREEN Hand-Off-Auto controls are provided for most of the automated devices in the system, and are accessed on this screen. These H-O-A buttons force the selected component to be energized (HAND), de-energized (OFF), or automatically energized by the normal logic sequence (AUTO).
  • Page 30 LPX AUTOMATED SEED TREATER H-O-A Button Descriptions 1. Drum Control Module: This module controls the function of the drum. The “HAND” button will place the drum in the manual mode of operation. The “OFF” button will turn the associated device in the “OFF” mode of operation. The “AUTO”...
  • Page 31 LPX AUTOMATED SEED TREATER H-O-A Button Descriptions 6. Pump Control Modules: These modules control the function of the pumps. The “HAND” button will place the desired pump in the manual mode of operation. The “OFF” button will turn the associated device in the “OFF” mode of operation. The “AUTO”...
  • Page 32 LPX AUTOMATED SEED TREATER H-O-A Button Descriptions 11. “PRIME TO ATOMIZER” Button: Used before a controlled startup to “preload” chemical in the tubing leading to the atomizer. To operate this button, place the atomizer and any pump that will be used in the “AUTO” mode. Next press and hold the “PRIME TO ATOMIZER”...

  • Page 33: Utilities Screen

    LPX AUTOMATED SEED TREATER UTILITIES SCREEN This screen allows the operator to set various system parameters and gives access to the “Reports”, “Product Selection”, “Security”, “Alarms” and Information screens. When buttons 1-5 are pressed, a numeric touch pad (right) will appear...
  • Page 34 LPX AUTOMATED SEED TREATER Utilities Screen Button Descriptions 1. TARGET TREATING RATE: Pressing this button allows the operator to adjust the estimated treating rate in pounds per minute. This number is used by the system to control the rate of the seed wheel and pumps.

  • Page 35: Security Screen

    LPX AUTOMATED SEED TREATER SECURITY SCREEN Security Screen Button Descriptions 1. “PASSWORD” Entry: The operator uses this input to obtain access to ALL options on this screen. When this button is pressed a keypad (right) will appear on the “USC”...
  • Page 36 LPX AUTOMATED SEED TREATER Security Screen Button Descriptions 2. Logout Button: Pressing this button will log the operator out of the Security screen. However, the operator will be automatically logged out after one minute of no activity on the touch screen.

  • Page 37: Tools & Options Screen

    LPX AUTOMATED SEED TREATER TOOLS & OPTIONS SCREEN Tools & Options Screen Button Descriptions 1. DATE & TIME: This button advances the operator to a screen where the date and time can be changed. (right) USC, Page 37...
  • Page 38 LPX AUTOMATED SEED TREATER Tools & Options Button Descriptions (continued) 2. STANDARD/METRIC UNITS: Allows the operator to switch between Standard or Metric units of measurement. When this button is pressed a window will appear (below) which will allow the operator to the select the desired units of measurement.
  • Page 39 LPX AUTOMATED SEED TREATER 3. EDIT CHEMICAL NAMES (CONTINUED): This screen also allows the operator to recalibrate the flow meter by adjusting the multiplier for each chemical. Press this button to adjust the multiplier for this chemical. 4. EDIT PRODUCT NAMES: Allows the operator to change the product names to better fit their needs.
  • Page 40 LPX AUTOMATED SEED TREATER Tools & Options Button Descriptions (continued) 5. PRINT SETUP: Allows the operator to set up their personal company information which will be printed at the top of each report. Pressing the button will advance the operator to the screen below. The company information can be entered by selecting the blank space under each heading.

  • Page 41: Section E

    LPX AUTOMATED SEED TREATER Section Section Calibration Calibration SEED FLOW CALIBRATION The following is a list of steps to use when calibrating the seed flow. An included seed calibration cup, funnel, stand, and scale are used to calibrate the seed wheel.
  • Page 42 LPX AUTOMATED SEED TREATER 7. Take the weight of the seed sample and enter it into the main screen under “CUP WEIGHT”. Enter Seed Sample Weight Here 8. Press the Utilities button on the main screen to advance to the utilities screen.
  • Page 43 LPX AUTOMATED SEED TREATER 9. Next, press the “PRODUCT SELECTION SCREEN” button to advance to the product selection screen. Select the type of seed you will be treating. A confirmation window will appear to confirm the selection. If you are treating a seed that doesn't appear on the screen then select “OTHER”.

  • Page 44: Pump Calibration

    LPX AUTOMATED SEED TREATER PUMP CALIBRATION 1. Lock down the pump tubing in the pump head. (page 21) 2. Premix enough liquid for the amount of seed you are treating and pour into the chemical mix tank. It’s always a good practice to mix up 20% extra slurry to help fill all the lines.

  • Page 45: Flow Meter Calibration

    LPX AUTOMATED SEED TREATER FLOW METER CALIBRATION Due to the composition of some types of chemicals, additional flow meter calibration may be required. It is recommended that, like other calibration devices, the flow meter(s) is checked regularly and calibrated when needed. When calibrating the flow meter(s), each chemical slurry must be checked and adjusted for.

  • Page 46: Treating Seed

    LPX AUTOMATED SEED TREATER TREATING SEED 1. Under the H-O-A screen, place the “DRUM”, “ATOMIZER”, “SEED WHEEL”, “INLET CONVEYOR”, “OUTLET CONVEYOR”, and desired pumps in “AUTO”. 2. Next, prime the chemical line to the atomizer. Ensure that the valve on each of the chemical attachment ports on the treater are in the correct position.
  • Page 47 LPX AUTOMATED SEED TREATER 4. When the pump’s flow rate has been reached and seed is covering the proximity sensors inside of the seed wheel, the air actuated 3-way valve will open and allow liquid to pump up to the atomizer. A moment later (based on the settings in the utilities screen), the seed wheel will turn on and the seed treating process will begin.

  • Page 48: Reports

    LPX AUTOMATED SEED TREATER 7. When all seed passes through the seed wheel, the seed wheel will turn off and the pump will switch to recirculate. When more seed is fed into the treater, the treating process will continue. 8. After all seed has been treated, the “SHUTDOWN”...
  • Page 49 LPX AUTOMATED SEED TREATER 3. Once the data has been saved, the reports can be accessed later through the utilities screen (bottom left). Or if you would like to erase the reports, press the “SECURITY” button under the utilities screen to advance to the security screen “USC”.

  • Page 50: Seed Wheel Calibration

    Press the Utilities button on the Main screen. Next, press the “SECURITY” button to advance to the security screen. Enter in the Password of “USC”, then press the Seed Wheel Calibration button. This will advance you to the Seed Wheel Calibration screen.

  • Page 51: Printing & Uploading Reports

    LPX AUTOMATED SEED TREATER PRINTING & UPLOADING REPORTS The USB port located on the side of the operator control panel, allows the operator to print reports or upload reports to a compact flash device. When a printer is hooked to the USB port, the operator can print a report by pressing the print button located on the reports screen.
  • Page 52 LPX AUTOMATED SEED TREATER Uploading Reports Use the following steps to upload reports to a computer. 1. Insert a Compact Flash device into the USB port 2. Advance to the Tools & Options screen 3. Press the “SEND REPORTS TO USB” button. A confirmation window will appear.
  • Page 53 LPX AUTOMATED SEED TREATER 7. On the main page, use the Media drop-down list to select Local Files and then click Next. 8. Select Convert Recipe or Data Logging Files and click Next. USC, Page 53...
  • Page 54 LPX AUTOMATED SEED TREATER 9. In the window to convert files, configure the conversion settings as required. The table below describes the conversion property settings. PROPERTY DESCRIPTION File Types Select the file type for the Data Manager to convert Recipes (.rcp) Input Folder Specify the folder that contains the files to convert.
  • Page 55 LPX AUTOMATED SEED TREATER 10. Click Convert to convert the files. The Data Transfer Status window appears and shows the conversion status. 11. To save converted (.csv) report files as Microsoft Excel files, start Microsoft Office Excel. In the File menu, click Open. In the Look in: drop-down list, browse to the folder you specified when converting the files.
  • Page 56 LPX AUTOMATED SEED TREATER 12. The Text Import Wizard will open. Select Delimited as the Original data type, and enter “124” in the “Start import at row:” input. Click Next. 13. De-select “Tab” and select “Comma” as the Delimiter. Then click Next.
  • Page 57 LPX AUTOMATED SEED TREATER 14. Select “Do not import column (skip)” from the Column data format area. Then click Finish. 15. The Report conversion process is complete. In the File menu, click Save As. In the Save as type: drop-down list select Microsoft Office Excel Workbook (*.xls).

  • Page 58: Section F

    Section Section Troubleshooting & Alarms Troubleshooting & Alarms TROUBLESHOOTING Below is a table describing the most frequent problems and solutions with the USC LPX Automated Seed Treater. For further assistance, contact your local USC dealer. Problem Possible Cause Solution Inlet Conveyor will not turn on.
  • Page 59 LPX AUTOMATED SEED TREATER Problem Possible Cause Solution Pump is fluctuating. 1. Restriction in tubing 1. Flush tubing and check filter for any restrictions. 2. Filter is plugged or missing gasket. 2. Clean filter and check for gasket. Seed calibration is fluctuating.

  • Page 60: Proximity Switch Adjustment Guide

    LPX AUTOMATED SEED TREATER PROXIMITY SWITCH ADJUSTMENT GUIDE The proximity switches mounted in the extension ring and the seed wheel detect when seed is present. The proximity switch located in the extension ring is used to automatically shut off the inlet conveyor when the surge hopper is full.

  • Page 61: System Alarms - Faults

    The table below and on the following pages provides a general description of all the system alarms (faults & warnings) of the LPX Automated Seed treater. When a fault or warning condition is detected by the system, the alarms screen will pop-up describing the cause of the alarm or fault.
  • Page 62 LPX AUTOMATED SEED TREATER Alarm - Fault Possible Cause Solution Atomizer Motor Fault 1. No signal from Atomizer 1. Verify that the VFD is motor drive (VFD) indicating powered up, or check if it is that the Atomizer is running.
  • Page 63 LPX AUTOMATED SEED TREATER Alarm - Fault Possible Cause Solution Check Operation Of Seed Seed Wheel is in Auto mode of Verify both proximity sensors are Sensors In Seed Wheel operation, and only one proximity working properly. (This alarm will...

  • Page 64: Paused Controlled Warning

    LPX AUTOMATED SEED TREATER PAUSED CONTROLLED WARNING The table below provides a general description of all the system warnings that could occur which would cause the system to pause. When a warning condition is detected, a window will pop-up notifying the operator that the system is “paused”...

  • Page 65: System Messages

    LPX AUTOMATED SEED TREATER SYSTEM MESSAGES The table below provides a general description of all the system messages that could occur. When a warning condition is detected, a window will appear (below) notifying the operator that the system will not start because of a certain condition. When the condition has been corrected, the “STARTUP”...

  • Page 66: Section G

    Maintenance Maintenance Proper maintenance of the LPX Automated Seed Treater is critical for peak performance, reliability and accuracy of this system. The following is a guideline for the type of maintenance and servicing that should be performed on this unit. Your environment and uses may require additional maintenance and service beyond this list to assure a reliable and safe unit.
  • Page 67 LPX AUTOMATED SEED TREATER ATOMIZER To access inside of atomizer housing, push up on the quick release handle and slide back the atomizer (see picture below). Quick-Release Handle Atomizer Head  Slide back atomizer housing and grease bearing inside. Bearing needs just one pump of grease every 40 hours of use.
  • Page 68 LPX AUTOMATED SEED TREATER MIX TANK  Check motor.  Check for any play in the mix tank shaft.  Check valves, fittings, and plug on bottom of tank for leaks.  Check chemical line tubing for abnormal wear. ELECTRICAL PANEL ...

  • Page 69: Section H

    Storage Storage When storing the USC LPX Automated Seed Treater for long periods of time, the following procedure must be followed to reduce the chance of rust, corrosion and fatigue of the treater. You can also use these steps when storing the machine for the winter.
  • Page 70 LPX AUTOMATED SEED TREATER ATOMIZER CHAMBER 1. Remove and clean the atomizer housing. 2. Remove the atomizer head and stainless steel plumbing. The atomizer head can be disassembled (right), for easier cleaning. It is threaded together and can simply be unscrewed.
  • Page 71 LPX AUTOMATED SEED TREATER ROTATING DRUM 1. Remove the shields and clean out any seed that may have fallen underneath the drum. 2. Clean out any residue left on the inside of the drum and around the seed lifters. 3. Lubricate the chain to keep from corroding in storage.

  • Page 72: Section I

    LPX AUTOMATED SEED TREATER Section Section Mechanical Drawings Mechanical Drawings The following pages show the parts of the LPX Automated Seed Treater. Please have the part number ready when ordering parts. LPX Base Frame Assembly Page 72 USC,...
  • Page 73 LPX AUTOMATED SEED TREATER LPX Base Frame Assembly USC, Page 73...
  • Page 74 LPX AUTOMATED SEED TREATER LPX Base Frame Assembly Page 74 USC,...
  • Page 75 LPX AUTOMATED SEED TREATER LPX Base Frame Assembly Parts List LPX 6FT LPX 8FT LPX 10FT LPX BASE FRAME ASSEMBLY 18-01-0011 18-01-0012 18-01-0013 Item # Title Part # Part # Part # GBOX IL 56C 16.2:1 GR B1 FOOT MNT 01-01-0101 1 01-01-0101 1 01-01-0101 1 SPROCKET # 50 14T 1.00 IN BORE...
  • Page 76 LPX AUTOMATED SEED TREATER LPX Drum Assembly Page 76 USC,...
  • Page 77 LPX AUTOMATED SEED TREATER LPX Drum Assembly Parts List LPX800 6FT CS LPX800 6FT SS LPX2000 6FT CS LPX DRUM ASSEMBLY 18-01-0042 18-01-0043 18-01-0044 Item # Title Part # Part # Part # NUT LOCK FLG .375-16 ZP GR5 06-03-0014 24 06-03-0014 24 06-03-0014 24 WSHR SS BONDED SEALING .375 ID 06-04-0013 24 06-04-0013 24 06-04-0013 24...
  • Page 78 LPX AUTOMATED SEED TREATER LPX Seed Wheel Assembly Page 78 USC,...
  • Page 79 LPX AUTOMATED SEED TREATER LPX Seed Wheel Assembly USC, Page 79...
  • Page 80 LPX AUTOMATED SEED TREATER LPX Seed Wheel Assembly 40 10 31 35 41 DETAIL A Page 80 USC,...
  • Page 81 LPX AUTOMATED SEED TREATER LPX Seed Wheel Assembly USC, Page 81...
  • Page 82 LPX AUTOMATED SEED TREATER LPX Seed Wheel Assembly DETAIL C Page 82 USC,...
  • Page 83 LPX AUTOMATED SEED TREATER LPX Seed Wheel Assembly Parts List Item Number USC Part Number Description Quantity 01-01-0096 GMTR RA .50 HP 11RPM 3PH HLLW SHAFT 03-05-0042 TMNL BARRIER STRIP IDEAL 89-608 03-06-0039 RECP 4PL ML PIN HBMS04501 03-06-0059 RECP 8PL ML PIN HBMS08501...
  • Page 84 LPX AUTOMATED SEED TREATER LPX Seed Wheel Assembly Parts List Item Number USC Part Number Description Quantity 5/10/3316 SMW PROX SW HOLDER 05-11-0075 DRIVE SHAFT 1.4375 SHAFT 06-01-0091 SRCW, PAN HD, 10-32 X 1.25 ZP 06-01-0106 BOLT .500-13 X 5.50 ZP GR5 06-01-0122 BOLT, CARRIAGE, .250-20x.75 G5 ZP...
  • Page 85 LPX AUTOMATED SEED TREATER LPX Seed Wheel Accessories & Parts List Item # PART # Title 03-12-0039 PNL CNTL MNL ST SW (LP only) 03-19-0020 SCL 6.5 X 6.5 10 LBS 05-03-0248 WDMT CAL CUP FILL FRM 05-07-0119 LP800 SEED WHEEL FLOW BALANCER...
  • Page 86 LPX AUTOMATED SEED TREATER LPX End Chute & Parts List LPX END CHUTE 18-01-0072 Item # Part # Title 05-10-3400 PLT DSCHG TRTR 05-10-3886 SKIRT DSCHG TRTR LPX2000 06-01-0198 BOLT, CARRIAGE, 5/16-18 X 3/4 UNC ZP GRADE 5 06-03-0002 NUT NYL LOCK .313-18 ZP GR5...
  • Page 87 LPX AUTOMATED SEED TREATER LPX Static Mixer & Parts List LPX STATIC MIXER 04-03-0157 Item # PART # Title 02-02-0006 VLV BALL .500 NPT 2WAY BRSS 02-05-0005 FTTG CPLG .500 NPT FM SS 02-06-0020 FTTG 90 DEG STRT .500NPTX .500NPT 02-07-0007 FTTG NIP .500 NPT X 1.125 TBE SS...
  • Page 88 LPX AUTOMATED SEED TREATER LPX Treater Page 88 USC,...
  • Page 89 LPX AUTOMATED SEED TREATER LPX Treater USC, Page 89...
  • Page 90 LPX AUTOMATED SEED TREATER LPX Treater Page 90 USC,...
  • Page 91 LPX AUTOMATED SEED TREATER LPX Treater USC, Page 91...
  • Page 92 LPX AUTOMATED SEED TREATER LPX Treater Page 92 USC,...
  • Page 93 LPX AUTOMATED SEED TREATER LPX Treater USC, Page 93...
  • Page 94 LPX AUTOMATED SEED TREATER LPX Treater Page 94 USC,...
  • Page 95 See Table 1b See Table 1b TRTR PANEL See Table 1c See Table 1c KIT PWR See Table 2a See Table 2a ASSY STTC MXR & VLVS LPX TRTR 04-03-0157 04-03-0157 WDMT ADJ TREATER LEG 05-05-0001 05-05-0001 WDMT CHAIN GRD LP800/LP2000 05-06-0001...
  • Page 96 06-09-0002 PIN CLVS .500 X 3.50 PLN 06-09-0005 06-09-0005 SEAL BRSH 180 DEG 7.81 OR X 4.00 IR 06-10-0018 06-10-0018 ATWL LBL USC, LLC 3" X 15" PRO-CUT 09-01-0042 09-01-0042 ASSY SEED METER WHL 13-04-0064 13-04-0065 ASSY BASE FR LPX...
  • Page 97 See Table 1b See Table 1b TRTR PANEL See Table 1c See Table 1c KIT PWR See Table 2a See Table 2a ASSY STTC MXR & VLVS LPX TRTR 04-03-0157 04-03-0157 WDMT ADJ TREATER LEG 05-05-0001 05-05-0001 WDMT CHAIN GRD LP800/LP2000 05-06-0001...
  • Page 98 06-09-0002 PIN CLVS .500 X 3.50 PLN 06-09-0005 06-09-0005 SEAL BRSH 180 DEG 7.81 OR X 4.00 IR 06-10-0018 06-10-0018 ATWL LBL USC, LLC 3" X 15" PRO-CUT 09-01-0042 09-01-0042 ASSY SEED METER WHL 13-04-0065 13-04-0065 ASSY BASE FR LPX...
  • Page 99 03-12-0167 -> PNL CNVR 575V 3PH 7.5HP IN 7.5HP OUT Table 1b -> Seed Wheel Panel 03-12-0172 -> PNL CNTL LPX SMW 230V 1PH 03-12-0173 -> PNL CNTL LPX SMW 230V 3PH 03-12-0174 -> PNL CNTL LPX SMW 460V 3PH 03-12-0175 ->...
  • Page 100 LPX AUTOMATED SEED TREATER LPX Pump Stand - Single Pump Head & Parts List SINGLE PUMP HEAD 13-04-0105 Item # Part # Title 01-01-0010 MTR .1HP 6-600RPM 90VDC 02-01-0005 PUMP HEAD PRST MF LS 115V 600RPM 02-03-0001 TUBE MASTERFLEX PUMPHEAD (28 inches)
  • Page 101 LPX AUTOMATED SEED TREATER LPX Pump Stand - Dual Pump Head & Parts List DUAL PUMP HEAD 13-04-0104 Part # Title Item # 01-01-0010 MTR .1HP 6-600RPM 90VDC 02-01-0005 PUMP HEAD PRST MF LS 115V 600RPM 02-03-0001 TUBE MASTERFLEX PUMPHEAD (28 Inches) 02-14-0002 1/2-14 NPT,PLUG BP 02-15-0016 FTTG CPLG .500 NPT QCK DISC BODY...
  • Page 102 LPX AUTOMATED SEED TREATER LPX Pump Stand - Triple Pump Head & Parts List 3 PUMP HEAD 13-04-0103 Item # Part # Title 01-01-0066 SPEED REDUCER, 3.7 TO 1 01-01-0160 MTR .25HP 2500 RPM 34 90VDC 02-01-0005 PUMP HEAD PRST MF LS 115V 600RPM 02-15-0016 FTTG CPLG .500 NPT QCK DISC BODY...
  • Page 103 LPX AUTOMATED SEED TREATER LPX Pump Stand - Calibration Tube & Parts List CAL TUBE PUMP STAND 13-04-0106 Item # Part # Title 02-03-0005 TUBE,CALIBRATION TUBE INSIDE (22.5 Inches) 02-03-0034 TUBE CAL TUBE TO VLV PUMPSTD (11.25 Inches) 02-03-0034 TUBE SOL VLV TO CAL TUBE PUMPSTD (28 Inches) 02-04-0008 BUSHING .750-14 NPT, REDUCER .500-14 NPT...
  • Page 104 LPX AUTOMATED SEED TREATER LPX Pump Stand - Dry Lock Fittings & Parts List DRY LOCK FITTINGS 13-10-0017 Item # Part # Title 02-04-0024 BUSH .750-14 NPT .500-14 NPT BP 02-06-0017 1/2-14 NPT,SL 90 DEG. BP 02-07-0009 FTTG NIP .500 NPT X 1.75 TBE BLK 02-15-0035 FTTG CPLG 0.50 NPT FM PARKER POLY...
  • Page 105 LPX AUTOMATED SEED TREATER LPX Pump Stand - Base Frame USC, Page 105...
  • Page 106 LPX AUTOMATED SEED TREATER LPX Pump Stand - Base Frame Parts List LPX PUMP STAND BASE FRAME 05-03-1066 Item # Part # Title 02-02-0007 VLV BALL .500 NPT 3WAY BRSS 02-04-0008 BUSHING .750-14 NPT, REDUCER .500-14 NPT 02-05-0043 FTTG MANIFOLD UHMW 1 IN 3 OUT 02-06-0015 BARB, .750-14 NPT X .750 90DEG WP...
  • Page 107 LPX AUTOMATED SEED TREATER LPX Pump Stand - Scale Assembly & Parts List LPX SCALE ASSY 05-03-1069 Item # Part # Title 03-19-0028 SCL, 24' X 24" 1000 LB BASE 06-01-0204 BOLT, FLG .375-16 UNC ZP GRADE 5; 2-1/2" LG 06-03-0014 NUT LOCK FLG .375-16 ZP GR5...
  • Page 108 LPX AUTOMATED SEED TREATER LPX Pump Stand - Mass Flow Meter & Parts List MASS FLOW METER 05-03-1067 Item # Part # Title 02-03-0034 TUBE MANIFOLD TO FLOWMETER (14.75 Inches) 02-03-0034 TUBE FLOWMETER TO SOLENOID VALVE (20 Inches) 02-16-0050 FTTG PUSH 90DEG .625ODX.500 NPT ML 03-18-0019 FLMT PROMASS 83E08 DN8 3/8IN 03-18-0021 FTTG ADPTR 1/2"...
  • Page 109 LPX AUTOMATED SEED TREATER LPX Pump Stand - Volumetric Flow Meter & Parts List VOLUMETRIC FLOW METER 05-03-1068 Item # Part # Title 02-03-0034 TUBE MANIFOLD TO FLOWMETER (31 Inches) 02-03-0034 TUBE FLOWMETER TO AUTO VLV (22 Inches) 02-05-0005 FTTG CPLG .500 NPT FM SS 02-16-0028 FTTG PUSH .625OD X .500 NPT ML...
  • Page 110 LPX AUTOMATED SEED TREATER LPX Pump Stand - 30 Gallon Stainless Steel Tank Page 110 USC,...
  • Page 111 LPX AUTOMATED SEED TREATER LPX Pump Stand - 30 Gallon Stainless Steel Tank Parts List 30 GAL STAINLESS STEEL PUMP STAND 04-03-0159 Item # Part # Title 01-01-0007 MTR .25HP 1725RPM 34 90VDC 01-01-0039 GBOX IL 61.8:1 56C OTP 56C INP 01-07-0015 CPLG CLPN .625 X .750 X 1.50OD SS...
  • Page 112 LPX AUTOMATED SEED TREATER LPX Pump Stand—60 Gallon Stainless Steel Tank Page 112 USC,...
  • Page 113 LPX AUTOMATED SEED TREATER LPX Pump Stand - 60 Stainless Steel Tank Parts List 60 GAL SS PUMP STAND 04-03-0158 Item # Part # Title 01-01-0007 MTR .25HP 1725RPM 34 90VDC 01-01-0039 GBOX IL 61.8:1 56C OTP 56C INP 01-07-0015 CPLG CLPN .625 X .750 X 1.50OD SS 02-02-0006 VLV BALL .500 NPT 2WAY BRSS...
  • Page 114 LPX AUTOMATED SEED TREATER LPX Pump Stand - 30 Gallon Poly Tank Page 114 USC,...
  • Page 115 LPX AUTOMATED SEED TREATER LPX Pump Stand - 30 Gallon Poly Tank Parts List 30GAL POLY PUMP STAND 04-03-0161 Item # Part # Title 01-01-0007 MTR .25HP 1725RPM 34 90VDC 02-02-0006 .500-14 NPT X 2-WAY VALVE 02-02-0056 VLV BALL .750 NPT FM PLAS 02-03-0005 DRAIN HOSE PUMP STAND (12 Inches) 02-03-0034 TBG .625 OD POLYE COMP (24 Inches)
  • Page 116 LPX AUTOMATED SEED TREATER LPX Pump Stand - 60 Gallon Poly Tank Page 116 USC,...
  • Page 117 LPX AUTOMATED SEED TREATER LPX Pump Stand - 60 Gallon Poly Tank Parts List 60 GAL POLY PUMPSTAND 04-03-0160 Item # Part # Title 01-01-0007 MTR .25HP 1725RPM 34 90VDC 02-02-0006 .500-14 NPT X 2-WAY VALVE 02-02-0056 VLV BALL .750 NPT FM PLAS 02-03-0005 DRAIN HOSE PUMP STAND (12 Inches) 02-03-0034 TBG .625 OD POLYE COMP (24 Inches)
  • Page 118 LPX AUTOMATED SEED TREATER NOTES Page 118 USC,...

  • Page 119: Section J

    Buyer, and are not a part of the contract for sale or this limited warranty. 5. Return Policy: Approval is required prior to returning goods to USC, LLC. A restocking fee will apply.
  • Page 120 LPX AUTOMATED SEED TREATER USC, LLC 2320 124th road Sabetha, Ks 66534 PHONE: (785) 431-7900 FAX: (785) 431-7950 EMAIL: sales-team@uscllc.com WEB: www.uscllc.com Page 120 USC,...
