8
en | System Overview
1.8
Screen Elements

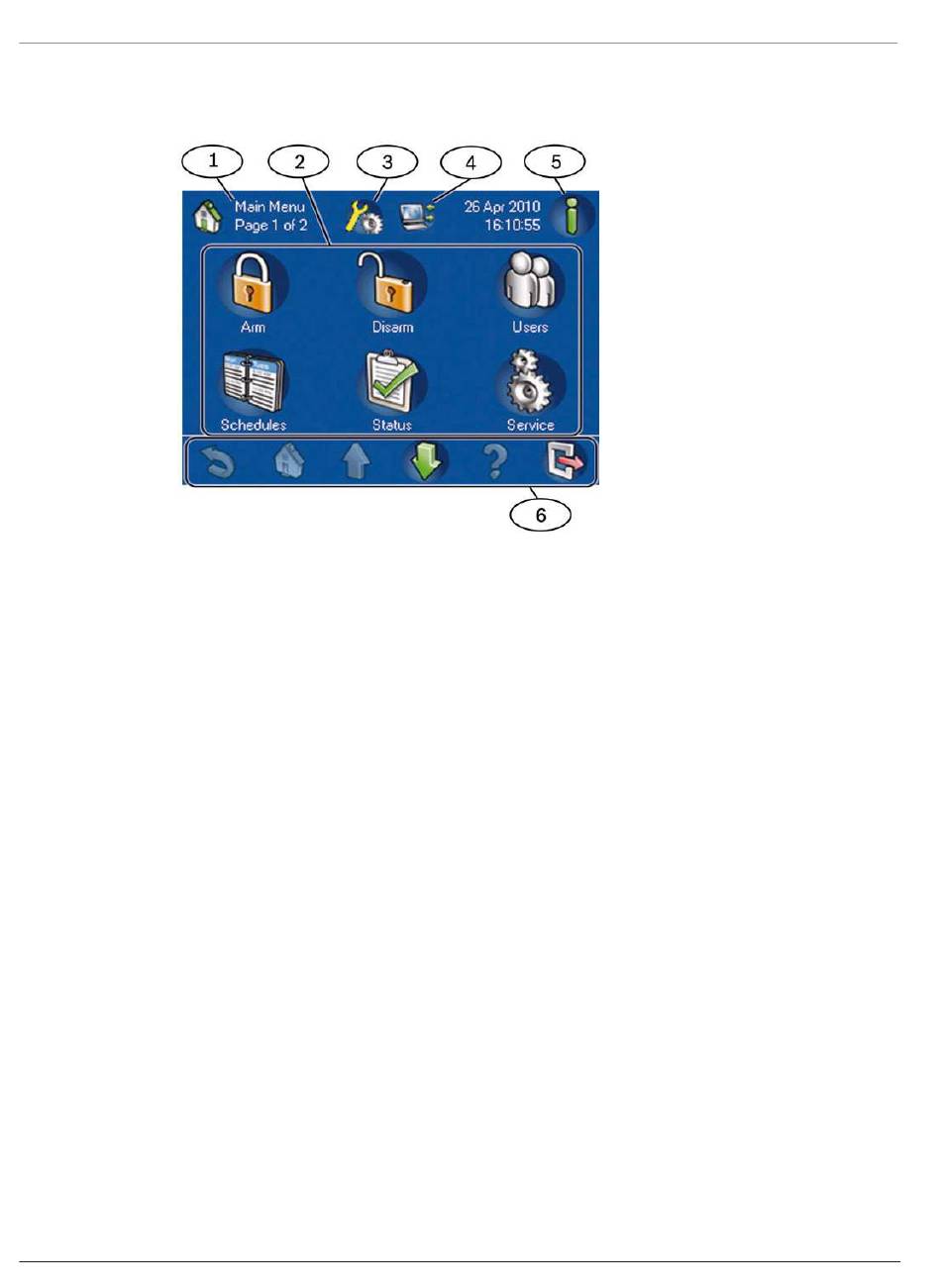

Figure 1.5 Main Menu – screen 1
1.
2.
3.
4.
5.
6.
2014.11 | 06 | F.01U.168.328
Screen name: identifies the active screen.
Menu buttons: Press a menu button to perform a task.
Installer Mode Icon: Indicates that the control panel is in installer mode.
RPS Connected Icon: Indicates that RPS is connected to the control panel.
Information button: If it is flashing, press this button to view additional system
information and to clear the events, alarms or troubles. For more Event Memory
information, refer to Section View Event Memory, page 10.
–
If the Information button is flashing red, there are system events and alarms that the
user has not cleared.
–
If the Information button is flashing yellow, there are system troubles which the user
has not cleared.
–
If the Information button is green, no additional system information is available.
Navigation bar: Press the buttons in the navigation bar to find tasks or to view system
information. Refer to Table 1.1 Navigation Bar description, page 9. Buttons in the
navigation bar that appear without their normal colors are not activated.
User Manual
MAP Control Center
Bosch Sicherheitssysteme, GmbH
