16
en | Operation
2.4
Disarm – Using the Control Center
The Disarm menu allows the user to disarm all areas, disarm selected areas, or disarm the
entire control panel (or installation-specific local) area. On the Main Menu (Figure 1.5 Main
Menu – screen 1, page 8), press Disarm, then select a disarming option from the on-screen
buttons on the Disarm menu (Figure 2.9 Disarm menu, page 16).

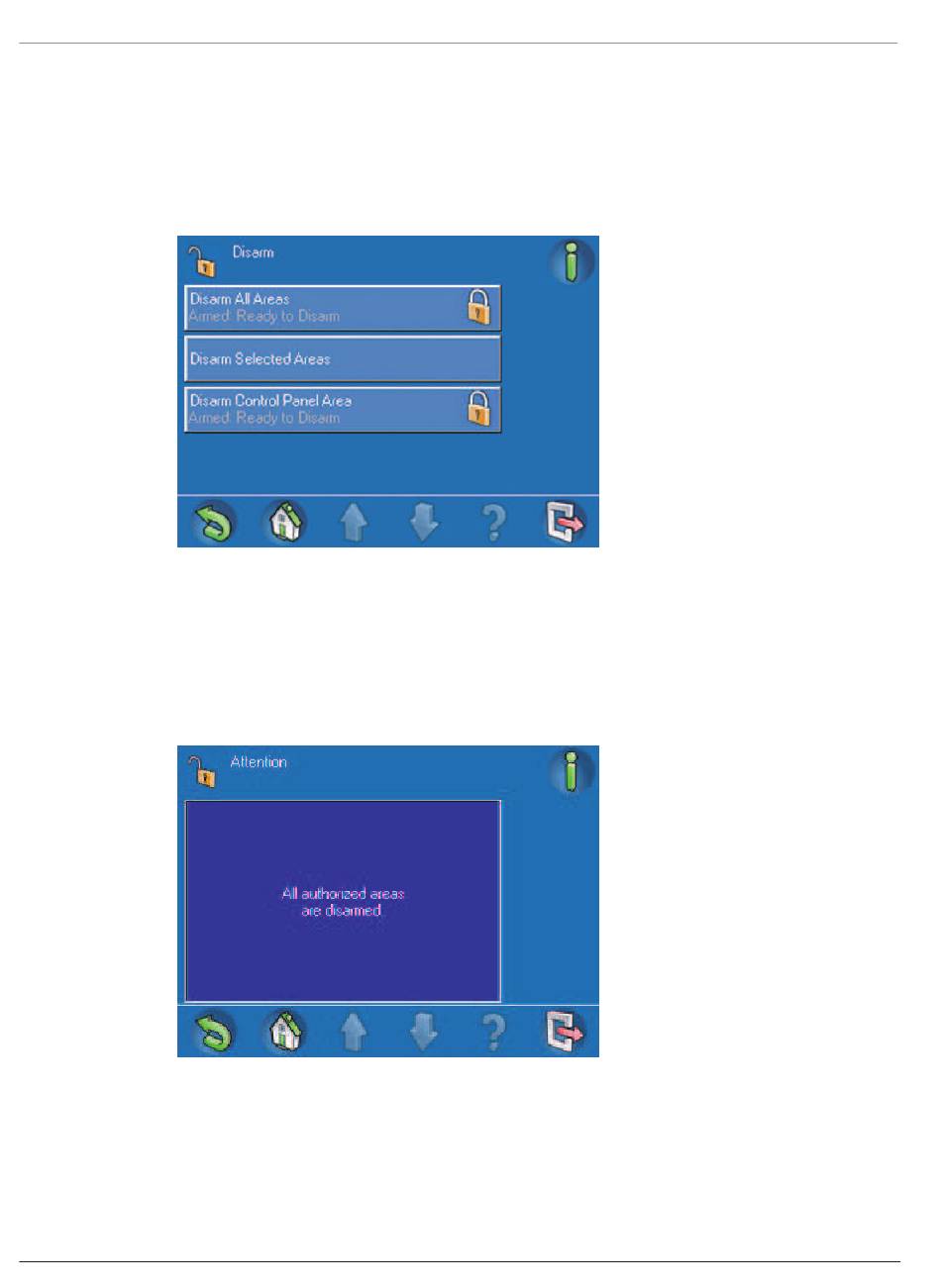

Figure 2.9 Disarm menu
2.4.1
Disarm All Areas
From the Disarm menu (Figure 2.9 Disarm menu, page 16), press the Disarm All Areas
button. The control center display shows the message: Attention - All authorized areas are
disarmed (Figure 2.10 Attention message: All authorized areas are disarmed, page 16). Then the
Disarm menu opens with the lock button in the unlocked position and the disarmed status
showing on the Disarm All Areas button.
Figure 2.10 Attention message: All authorized areas are disarmed
2.4.2
Disarm Selected Areas
From the Disarm menu, press the Disarm Selected Areas button. The Disarm Selected Areas
screen (Figure 2.11 Disarm Selected Areas screen, page 17) opens. The text and the lock
button show status information on the button for each area. To disarm an area, press the
button for an area that is not already disarmed; then press the Disarm button. To sort the list
of areas before selecting some to disarm, press the Sort/Filter button.
2014.11 | 06 | F.01U.168.328
User Manual
MAP Control Center
Bosch Sicherheitssysteme, GmbH
