MAP Control Center

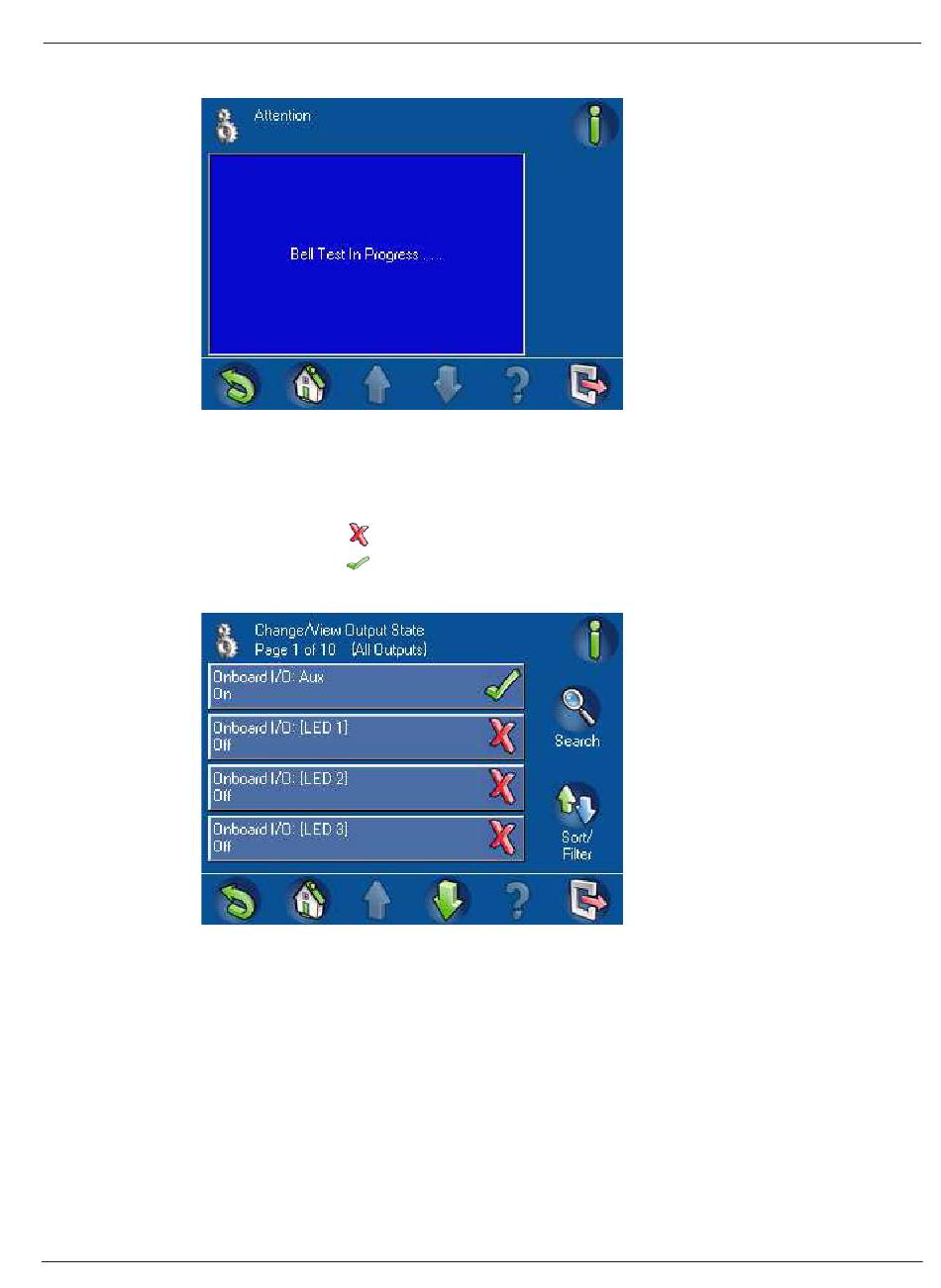

Figure 2.92 Attention: Bell Test in Progress
2.8.8
Change / View Output State
From the Service menu (Figure 2.64 Service Menu – screen 2, page 43), select Change / View
Output State. The Change / View Output State screen (Figure 2.93 Change / View Output State
screen, page 57) opens showing a list of all outputs.
–
–
Figure 2.93 Change / View Output State screen
Pressing the output buttons changes the state of the outputs. To search the list for a specific
output, press the Search button. The Search Change/View Output State screen (Figure 2.94
Search Change / View Output State screen, page 58) opens. Use the numeric, alphabetic, and
command keys to enter the name of an output. The name appears in the field at the top of the
screen. Press the Enter button to start the search.
Bosch Sicherheitssysteme, GmbH
Output is Off (
), or
Output is On (
).
User Manual
Operation | en
57
2014.11 | 06 | F.01U.168.328
