38 en | Operation

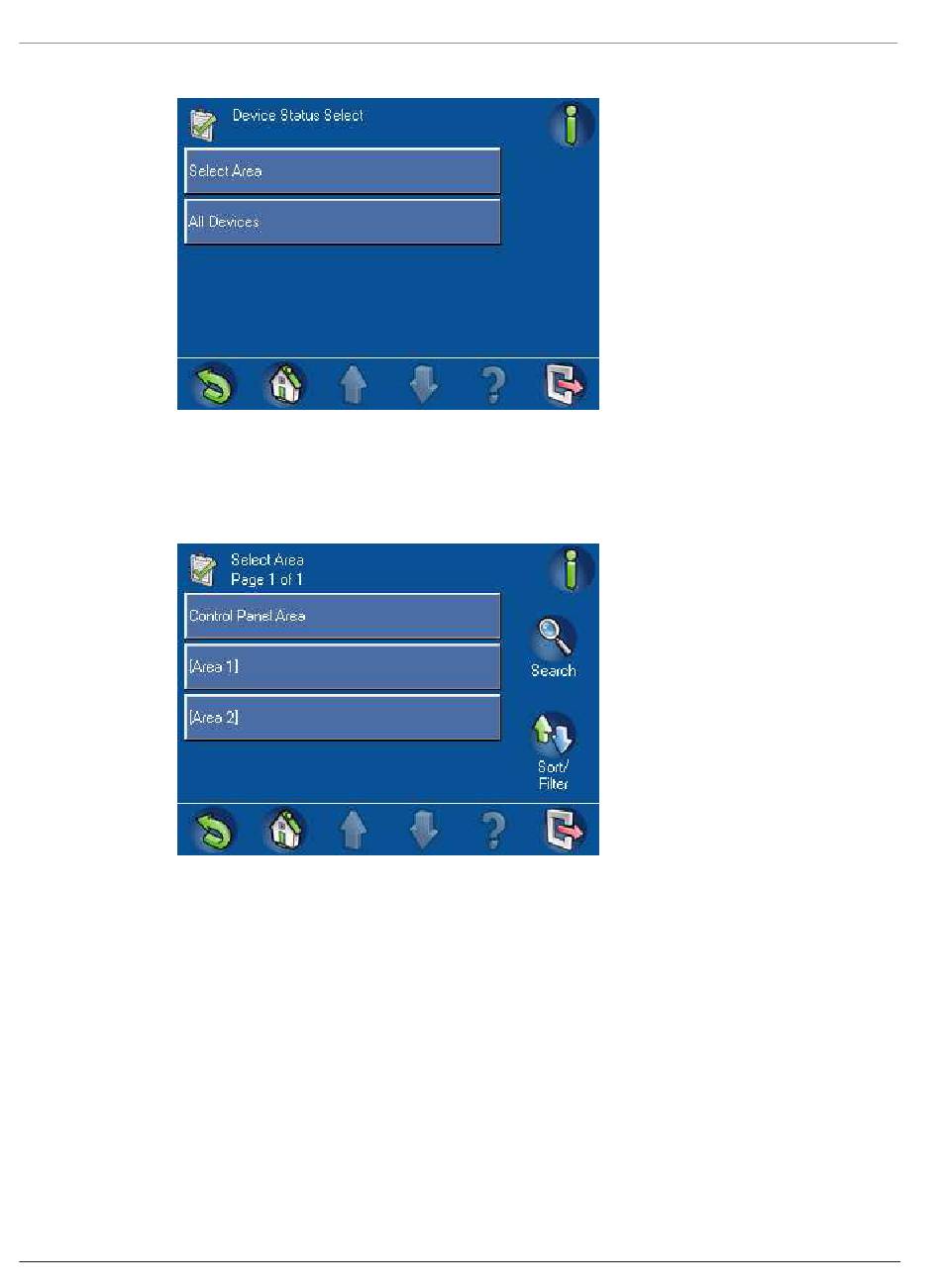

Figure 2.52 Device Status Select screen
From the Device Status Select screen, press Select Area or All Devices.
–
Figure 2.53 Select Area screen
–
2014.11 | 06 | F.01U.168.328
If Select Area is pressed, the Select Area screen (Figure 2.53 Select Area screen, page 38
) opens. Press the button for an area. The View Device Status screen (Figure 2.54 View
Device Status screen, page 39) opens with a list of the devices in the selected area.
If All Devices is pressed, the View Device Status screen (Figure 2.54 View Device Status
screen, page 39) opens with a list of all devices. The device status shows in lighter text
under the device name.
