To test a selected area (or more than one area), press the Motion Test Selected Area button.
The Motion Detector Test screen appears with red "X" marks (Figure 2.90 Motion Detector Test
screen – Test Mode Off, page 56) or green check marks (Figure 2.91 Motion Detector Test
screen – Test Mode On, page 56).

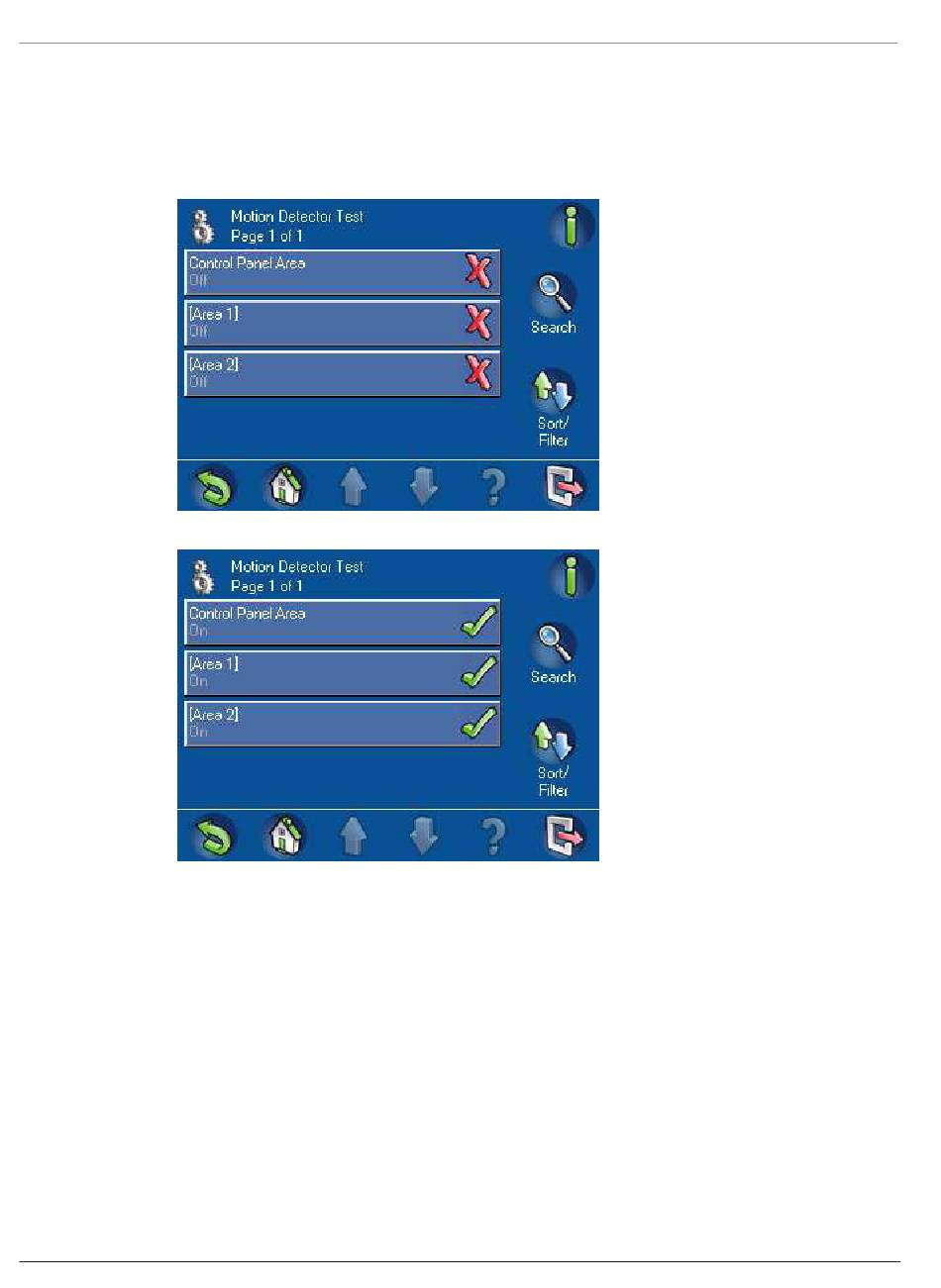

Figure 2.90 Motion Detector Test screen – Test Mode Off
Figure 2.91 Motion Detector Test screen – Test Mode On
If the test mode is On, detectors equipped with this function illuminate their LEDs when they
sense motion.
2.8.7 Bell Test
On the Service menu (Figure 2.64 Service Menu – screen 2, page 43), select Bell Test. The Bell
Test Progress screen(Figure 2.92 Attention: Bell Test in Progress, page 57) shows that the bell
test is in progress. During the bell test, the control center's red, amber, and green LEDs light
for three seconds and the speaker emits a short beep. The bell test completes in
approximately three minutes for optical alarms and approximately three seconds for acoustic
alarms. The bell test cannot be disconnected.
