MAP Control Center

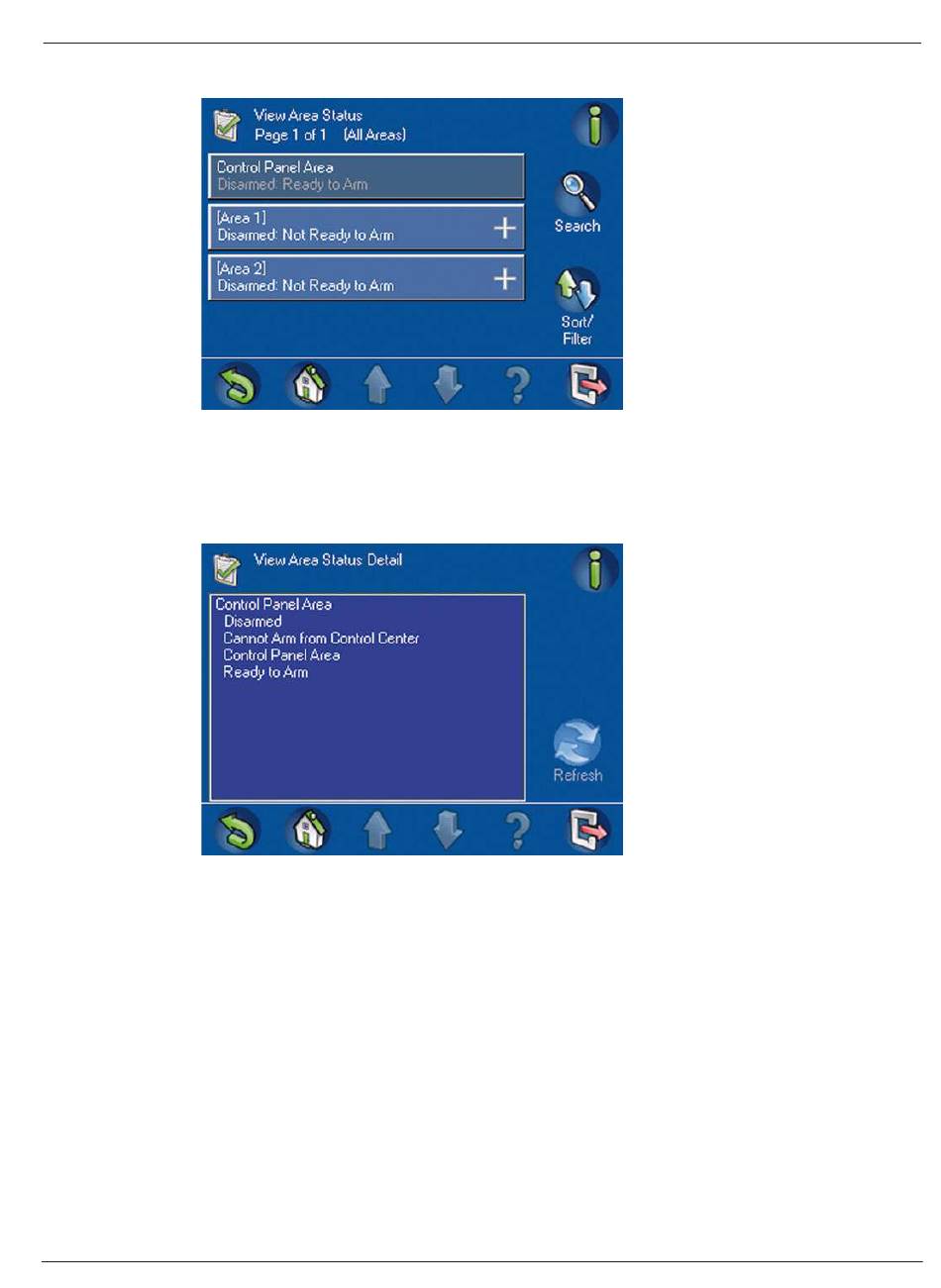

Figure 2.46 View Area Status screen
The + symbol is displayed when an area is Not Ready to Arm or Not Ready to Disarm, or when
an area is Ready to Arm but can only be armed by a Smartkey or Blocklock. Pressing a
displayed + symbol opens a View Area Status Detail screen (Figure 2.47 View Area Status Detail
screen, page 35).
Figure 2.47 View Area Status Detail screen
To find an area to view, the user can search or sort the list on the View Area Status screen (
Figure 2.46 View Area Status screen, page 35). Press the Search button to show the
alphanumeric keypad screen (Figure 2.48 1. Search View Area Status screen 1, page 36). Use
the numeric, alphabetic, and command keys to enter an area's name. The name appears in the
Search View Area Status field. Press the Enter button to start the search.
