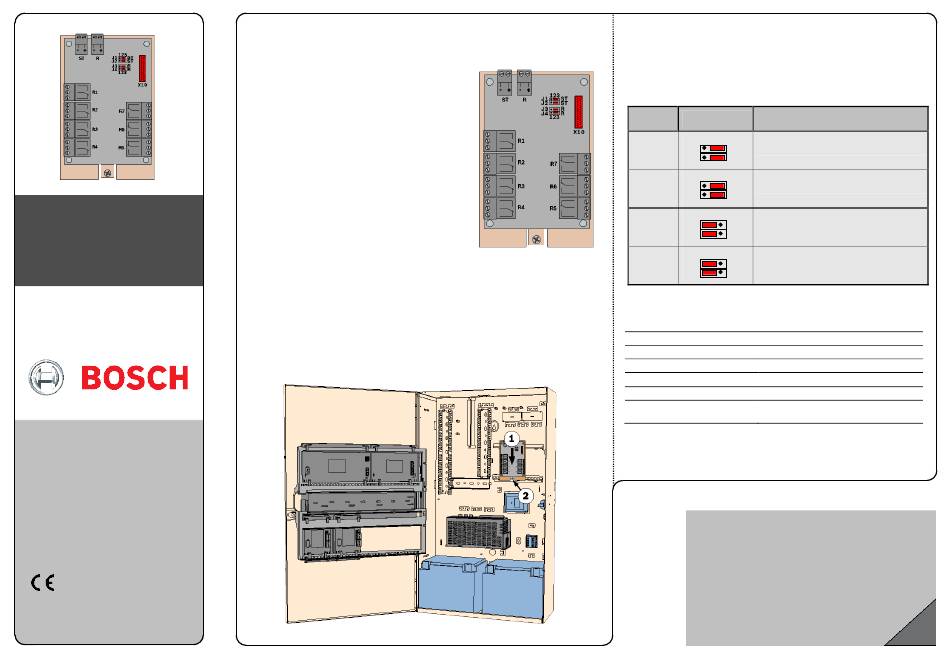

Bosch ICP-COM-IF Installation Manual

ICP-COM-IF
EN Installation guide
VdS class C G 111040
EN 50131-2-6 Grade 3
Description of the ICP-COM-IF Module
The ICP-COM-IF Module allows an isolated connection to be created between the MAP5000 (Interface
Module DE) and an external communicator (for example the AT 2000) via the parallel S1 interface. The
ICP-COM-IF Module offers:
•
Seven outputs:
The output signals from the MAP Interface Module DE
control the ICP-COM-IF Module relays that provide isolated
changeover contacts (R1 to R7)
•
Two inputs:
The inputs ST and R (for the "Communicator fault" or
"Negative confirmation" signals, for instance) can be
controlled via the following:
- isolated contacts
- C points (isolated via optocouplers)
Notes for installation
- The ICP-COM-IF Module can be mounted on the hinged mounting plate or the mounting rails of the
MAP control panel housing.
- A clearance of 15 mm is required on either side for subsequent wiring. Pull to disconnect the
connectors.
- The enclosure of an external transmission unit has to be mounted side by side to the panel enclosure
where the ICP-COM-IF module is mounted.
Mounting
1. Hook the ICP-COM-IF Module carrier plate into the existing breadboard of the hinged mounting
plate or onto the mounting rails.
2. Use the screw provided to secure the carrier plate to the bottom rail.
Jumper settings
The inputs ST and R can be controlled via the following:
•
isolated contacts
• C points (isolated via optocouplers)
To control the inputs via external "isolated contacts" or "C points", the jumpers must be
connected as follows:
Input Jumper setting
1 2 3
Control via isolated contact (factory default)
J1 ST
ST
J2 ST
1 2 3
1 2 3
Control via isolated contact (factory default)
J3 R
R
J4 R
1 2 3
1 2 3
J1 ST
ST Control via C point
J2 ST
1 2 3
1 2 3
J3 R
R Control via C point
J4 R
1 2 3
Technical specifications
Rated voltage +10 to +28 V DC
Rated current 67 mA at 28 V or 180 mA at 10 V
Relay contacts rating 3 A/120 V AC, 3 A/28 V DC
−25 °C to +55 °C
Temperature range
Weight 198 g
Dimensions (L x W x H) 132 mm x 85 mm x 20 mm (5.2 inches x 3.3
inches x 0.8 inches)
Bosch Sicherheitssysteme GmbH
Robert-Bosch-Ring 5
85630 Grasbrunn
Germany
www.boschsecurity.com
© Bosch Sicherheitssysteme GmbH, 2014
V3 2014/11
