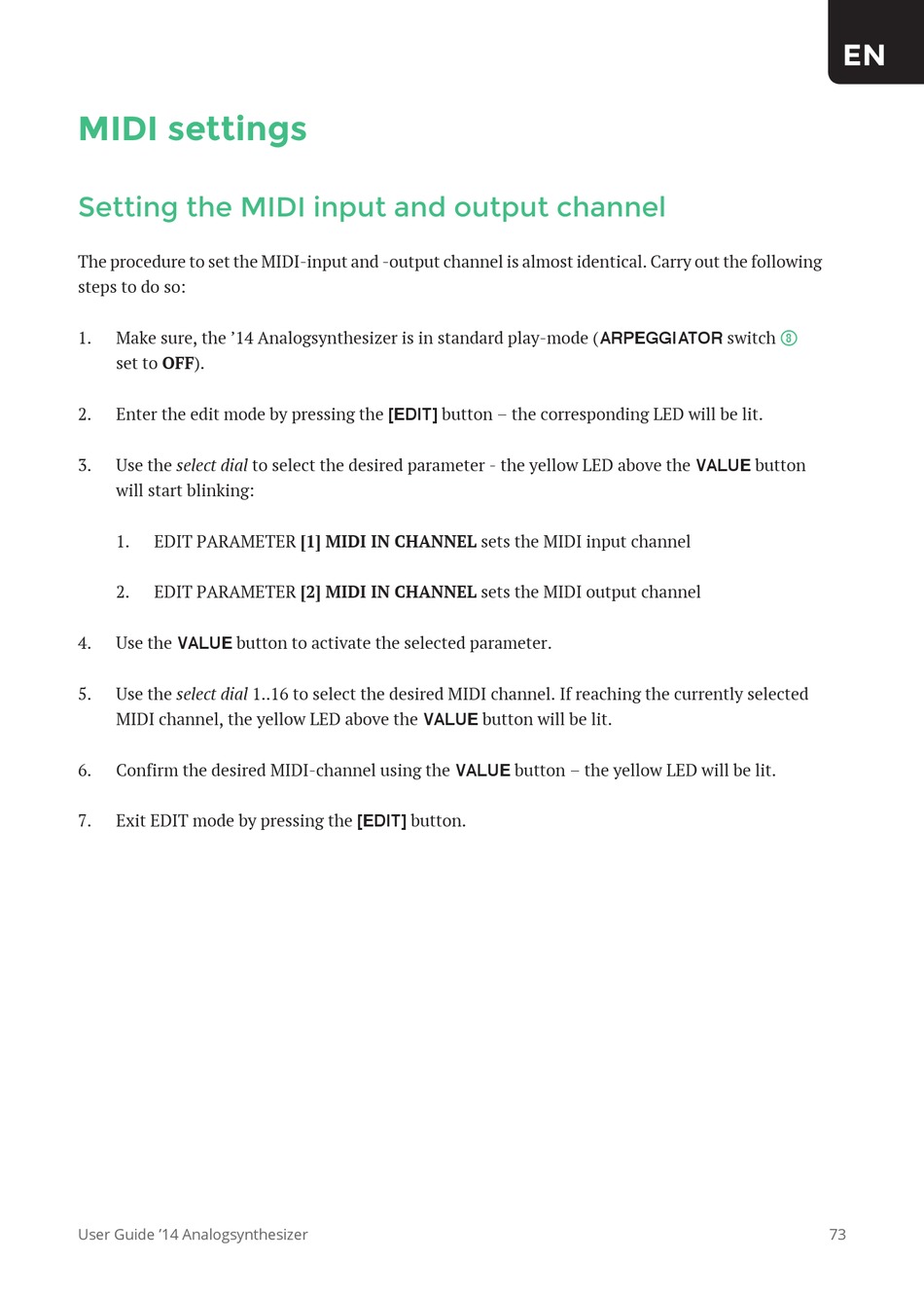

MIDI settings
Setting the MIDI input and output channel
The procedure to set the MIDI-input and -output channel is almost identical. Carry out the following
steps to do so:
1.
Make sure, the '14 Analogsynthesizer is in standard play-mode (ARPEGGIATOR switch
set to OFF).
Enter the edit mode by pressing the [EDIT] button – the corresponding LED will be lit.
2.
Use the select dial to select the desired parameter - the yellow LED above the VALUE button
3.
will start blinking:
EDIT PARAMETER [1] MIDI IN CHANNEL sets the MIDI input channel
1.
EDIT PARAMETER [2] MIDI IN CHANNEL sets the MIDI output channel
2.
Use the VALUE button to activate the selected parameter.
4.
5.
Use the select dial 1..16 to select the desired MIDI channel. If reaching the currently selected
MIDI channel, the yellow LED above the VALUE button will be lit.
Confirm the desired MIDI-channel using the VALUE button – the yellow LED will be lit.
6.
Exit EDIT mode by pressing the [EDIT] button.
7.
