Testing the PCI Configuration

Use EMDIAG to make sure the PCI adapter is configured properly.
For more information about EMDIAG , see Chapter 5, Using EMDIAG
to Troubleshoot Problems.
1
Type and press Enter to start the Adaptec setup
A:\EMDIAG
program.
2
At the Main Menu, select Configuration Status.
3
The Configuration Status screen reports the resources in use by
the adapter.If the adapter has encountered a resource conflict
with another adapter, or is not yet fully configured, EMDIAG
displays an error message.
Try repeating the installation and configuration procedures
again. If you still have difficulties, refer to Chapter 5, Using
EMDIAG to Troubleshoot Problems.

Testing the Quartet Configuration

If you are planning to use your quartet with Windows NT you must
first determine if your system's BIOS supports the PCI-to-PCI
bridge chip.
1
At EMDIAG 's Main Menu, select PCI Device Information.

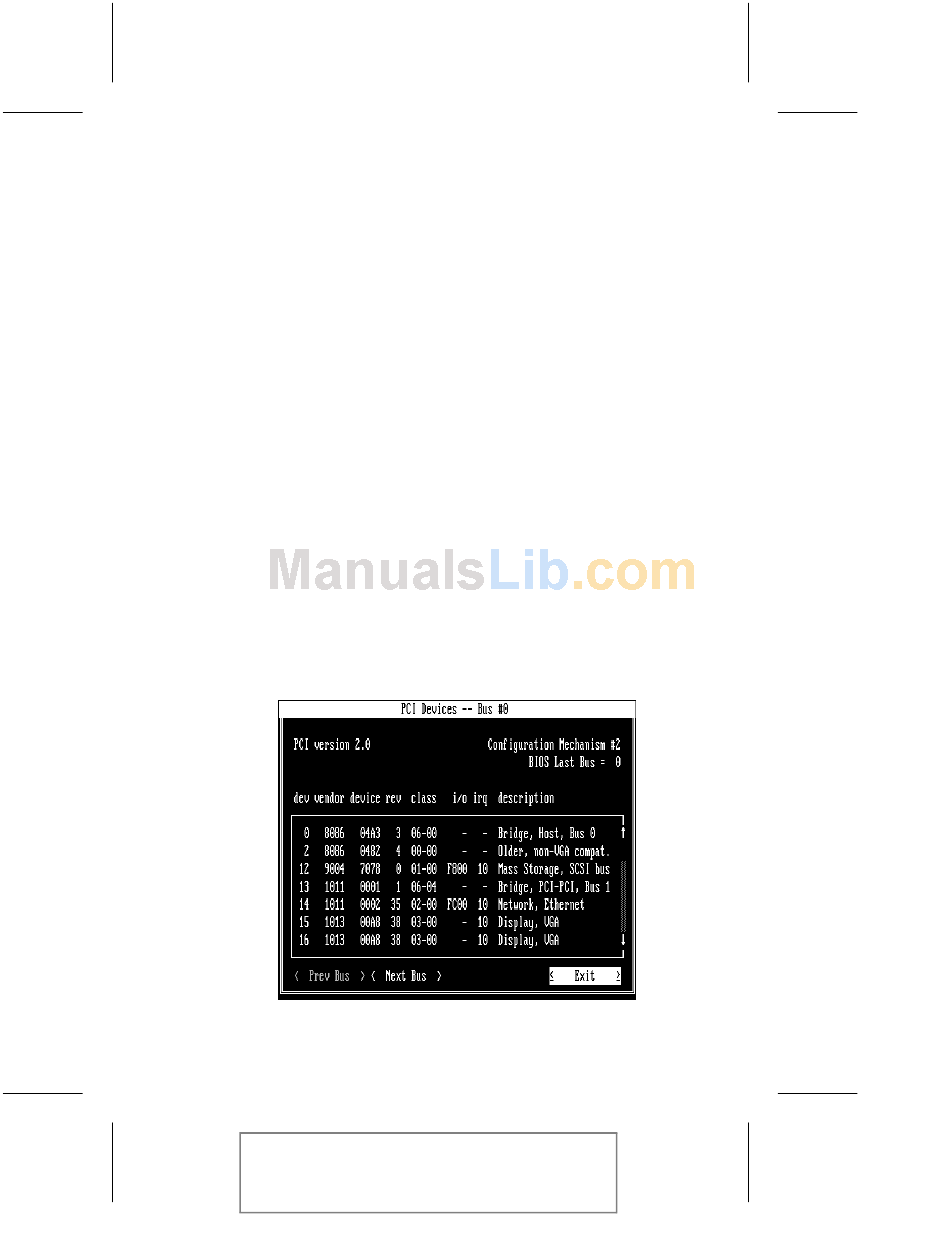

A screen similar to the following appears:
