User's Guide
AHA-2940UW/OF and
AHA-2944UW/OF
PCI to UltraSCSI Host Adapters for Open
Firmware Systems
R
Downloaded from
www.Manualslib.com
manuals search engine

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AHA-2940UW - Storage Controller UW SCSI 40 MBps and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Adaptec AHA-2940UW - Storage Controller UW SCSI 40 MBps

  • Page 1 User’s Guide AHA-2940UW/OF and AHA-2944UW/OF PCI to UltraSCSI Host Adapters for Open Firmware Systems Downloaded from www.Manualslib.com manuals search engine...
  • Page 2 Adaptec, Inc. 691 South Milpitas Boulevard Milpitas, CA 95035 © 1998 Adaptec, Inc. All rights reserved. Adaptec, and the Adaptec logo are trademarks of Adaptec, Inc. which may be registered in some jurisdictions. Printed in Singapore STOCK NO.: 511612-00, Rev. A KL 3/98 Downloaded from www.Manualslib.com...
  • Page 3 AHA-2940UW/OF and AHA-2944UW/OF Open Firmware User’s Guide Downloaded from www.Manualslib.com manuals search engine...
  • Page 4 Copyright © 1998 Adaptec, Inc. All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise, without the prior written consent of Adaptec, Inc., 691 South Milpitas Blvd., Milpitas, CA 95035.
  • Page 5 Sales and Ordering Information For sales information, call 800-959-7274 or 408-945-2550, M– F, 6:00 . to 5:00 ., Pacific Time. To order Adaptec software and SCSI cables, call 800-442-7274 or 408-957-7274, M– F, 6:00 . to 5:00 ., Pacific Time.
  • Page 6 Downloaded from www.Manualslib.com manuals search engine...
  • Page 7: Table Of Contents

    External SCSI Devices 2-8 Installing the Device Driver (Version 2.0 or Later) for Solaris/SPARC 2.5.1 or 2.6 2-9 Installation from a Floppy Disk 2-9 Installation from the Adaptec Web Site 2-10 Configuring SCSI Devices 2-11 Troubleshooting Checklist 2-12 Using SCSISelect...
  • Page 8 AHA-2940UW/OF and AHA-2944UW/OF User’s Guide Using the SCSI Disk Utilities 3-10 Using the Verify SCSI Disk Media Utility 3-12 Using the Format SCSI Disk Utility 3-13 Default Device Configuration Data Settings Initial Program Load Data File (ipldata.fc) A-1 Initial Program Load Data Settings A-1 SCSI ID Configuration Flags A-1 BIOS Control A-2 Host Adapter Control A-3...
  • Page 9: Getting Started

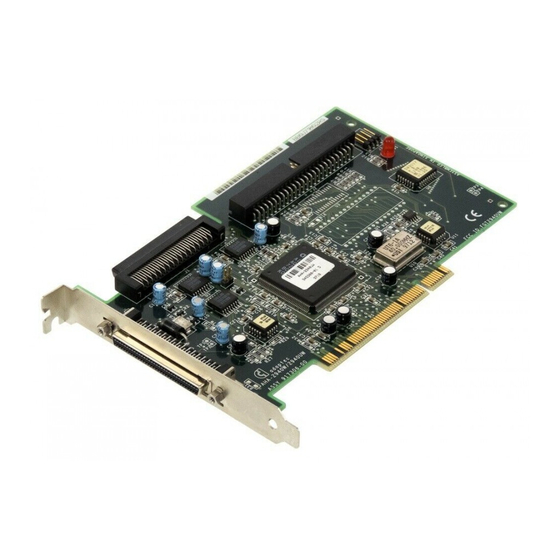

    Getting Started ® The AHA -2940UW/OF and AHA-2944UW/OF Open Firmware host adapters provide powerful features to your Solaris/UltraSPARC workstation. Your new SCSI (Small Computer System Interface) host adapter features Fast, reliable data transfer among the SCSI devices connected to it A configurable control utility that enables you to easily change SCSI-related settings directly from your desktop The AHA-2940UW/OF supports single-ended SCSI devices;...
  • Page 10: Document Overview

    AHA-2940UW/OF and AHA-2944UW/OF User’s Guide Document Overview This section covers the structure of this users guide, typographical conventions, and notes, cautions, and warnings. Organization This chapter provides an overview of this user’s guide and explains the typographical conventions and symbols used. Chapter 2, Installation, describes how to install the AHA-2940UW/OF and AHA-2944UW/OF host adapters, SCSI devices, and device drivers.
  • Page 11: Notes, Cautions, And Warnings

    Warnings alert you to actions that could cause injury to you or someone else. Adaptec does not claim to have included in this document every condition or situation that may require a caution or warning notice. Be sure to consult the documentation for your computer and any connected equipment when you are installing the equipment or changing its configuration.
  • Page 12 Downloaded from www.Manualslib.com manuals search engine...
  • Page 13: Installation

    Installation This chapter explains how to install AHA-2940UW/OF and AHA-2944UW/OF hardware and device drivers. WARNING: Before you begin installation, turn power to the computer and peripheral devices and disconnect the power cords. Downloaded from www.Manualslib.com manuals search engine...
  • Page 14: Board Layout

    AHA-2944UW/OF Figure 2-1. AHA-2940UW/OF and AHA-2944UW/OF Board Locations Note: For detailed information on mixing wide and narrow SCSI devices, refer to the Adaptec web site Connecting 8-Bit and 16-Bit Devices to an Adaptec Wide Host Adapter at http://www.adaptec.com/cables/ Downloaded from www.Manualslib.com...
  • Page 15: Inserting The Host Adapter

    Installation Inserting the Host Adapter Remove the cover from the computer case. (If necessary, refer to your computer documentation.) Figure 2-2. Removing the Chassis Cover Locate an unused PCI expansion slot. (This slot is typically white or ivory.) Unscrew the expansion slot bracket that covers the card-slot opening.
  • Page 16: Installing Scsi Devices

    AHA-2940UW/OF and AHA-2944UW/OF User’s Guide Insert the host adapter in a 32-bit or 64-bit PCI expansion slot. Press it down firmly so that the contacts are securely seated in the slot and secure it with the screw that you removed in Step 2.
  • Page 17: Internal Scsi Devices

    Installation Internal SCSI Devices Install or enable terminators on the device that you plan to install at the end of the internal cable. Then remove or disable terminators on all remaining devices. On most internal SCSI devices, you control termination by setting a jumper or a switch, or by physically removing or installing a resistor module(s).
  • Page 18 AHA-2940UW/OF and AHA-2944UW/OF User’s Guide Plug one end of the 50-pin or 68-pin internal SCSI cable into the host adapter’s internal SCSI connector. Use a SCSI cable with enough connectors to accommodate all of the internal devices you want to attach. 50-pin Narrow Internal Connection Pin 1...
  • Page 19 Installation Plug the other end of the internal SCSI cable into the connector on the last internal SCSI device in the chain. This device must be terminated. Make sure the colored stripe on the side of the cable is aligned with pin-1 of the SCSI device’s connector. Pin 1 Figure 2-7.
  • Page 20: External Scsi Devices

    AHA-2940UW/OF and AHA-2944UW/OF User’s Guide External SCSI Devices Plug one end of a 68-pin external SCSI cable into the host adapter’s external SCSI connector. Plug the other end of the external SCSI cable into one of the connectors on the external SCSI device.
  • Page 21: Installing The Device Driver (Version 2.0 Or Later) For Solaris/Sparc 2.5.1

    Installing the Device Driver (Version 2.0 or Later) for Solaris/SPARC 2.5.1 or 2.6 You can install AHA-2940UW/OF and AHA-2944UW/OF device drivers either from a floppy disk or from the Adaptec Web Site. Follow the procedures below to install the device drivers. Installation from a Floppy Disk Log on to the Solaris operating system as root.
  • Page 22: Installation From The Adaptec Web Site

    AHA-2940UW/OF and AHA-2944UW/OF User’s Guide Installation from the Adaptec Web Site Visit the Adaptec web sit at http://www.adaptec.com Select the Products link. Select the Sun/UltraSparc Solutions link. Follow the links and download the latest driver onto your system. If you are not logged on at root, re-log on as root.
  • Page 23: Configuring Scsi Devices

    Installation Configuring SCSI Devices Your host adapters can transfer data up to 40 MBytes per second on each SCSI channel when connected to devices on a wide bus that support UltraSCSI. UltraSCSI and non-UltraSCSI devices can coexist on the same cable, and each device can transfer data at its own negotiated or assigned transfer rate.
  • Page 24: Troubleshooting Checklist

    AHA-2940UW/OF and AHA-2944UW/OF User’s Guide Troubleshooting Checklist If you have any problems during the installation, check the following items first: Are the power cables and SCSI cables properly connected? Is the host adapter firmly seated and secured in the PCI expansion card slot? Does each SCSI device including the host adapter, have a unique SCSI ID?
  • Page 25: Using Scsiselect

    (also known as the Forth prompt, Forth evaluator, or ROM monitor): show-devs From the ok prompt, select the Adaptec single-chip host adapter to be configured. The word select is used to establish a device instance for the adapter. For example, to select a single-...
  • Page 26: Executing The Scsiselect Utility

    Enter. To exit SCSISelect, press Esc. A screen similar to the one in Figure 3-1 appears: AHA-294XU/UW/D SCSISelect(R) Utility v1.06 Copyright(c) 1996-1998 Adaptec, Inc. All rights reserved ------------------[ SCSISelect Options ]------------------ Do you wish to configure the host adapter or run the SCSI disk utilities? {<Space>...
  • Page 27: Using The Configure/View Host Adapter Settings

    Using SCSISelect To select an option Press , , or Space to scroll through the options: Configure/View Host Adapter Settings and SCSI Disk Utilities. When the option you want appears at the Select Option prompt, press Enter. To exit SCSISelect, press Esc in the SCSISelect Options screen. Using the Configure/View Host Adapter Settings Select Configure/View Host Adapter Settings from the SCSISelect Options screen.
  • Page 28 AHA-2940UW/OF and AHA-2944UW/OF User’s Guide environment of the other devices, the utility must make assumptions for configuration settings based on the active device. To select a device Press , or Space to scroll among the list of devices. When the device you want to configure appears at the Select Host Adapter to Configure prompt, press Enter.
  • Page 29 Using SCSISelect Use the keys listed in the table below for the device configuration screen. Alternate keys, where possible, are provided for terminal emulators that do not support certain keyboard inputs. Function Scrolls through the settings of an option. Alternate: Space Scrolls through the devices (SCSI IDs) of an Alternate: Tab option.
  • Page 30: Configuring Scsi Channel Interface Definitions

    AHA-2940UW/OF and AHA-2944UW/OF User’s Guide Configuring SCSI Channel Interface Definitions The following four options enable you to configure the SCSI channel interface: Host Adapter SCSI ID— This option allows you to select the single-chip host adapter’s SCSI Initiator ID. The default setting for all models is 7, which has the highest priority on the SCSI bus.
  • Page 31 Using SCSISelect Support for UltraSCSI Speed— This option determines whether the single-chip host adapter negotiates for double- speed synchronous transfer rates in support of UltraSCSI devices on the selected SCSI bus. The setting of this option affects the values displayed for the Maximum Sync Transfer Rate option available for each SCSI device on the SCSI bus.
  • Page 32: Scsi Device Configuration

    AHA-2940UW/OF and AHA-2944UW/OF User’s Guide SCSI Device Configuration The next four options allow you to configure certain parameters for each SCSI device on the SCSI bus. The settings apply to all SCSI IDs, even if they have not been assigned to a device. If you are configuring the active device, use the SCSI Disk Utilities option, which is explained on page 3-10, to determine which SCSI IDs are assigned to which devices.
  • Page 33: Advanced Configuration

    Using SCSISelect – 10.0 MB/sec for Narrow SCSI If the single-chip host adapter is configured so it will not initiate synchronous data transfers (Initiate Sync Negotiation is set to No), the maximum synchronous transfer rate is the maximum rate the single-chip host adapter accepts from the device during negotiation.
  • Page 34: Using The Scsi Disk Utilities

    AHA-2940UW/OF and AHA-2944UW/OF User’s Guide Using the SCSI Disk Utilities To use the SCSI Disk Utilities option Select SCSI Disk Utilities from the SCSISelect Options screen. SCSISelect immediately scans the active device’s SCSI bus for all devices connected to the single-chip host adapter. SCSISelect displays a list of all SCSI IDs and the devices assigned to them.
  • Page 35 Using SCSISelect Use the keys listed in the table below for the SCSI Disk Utilities target selection screen as follows. Alternate keys, where possible, are provided for terminal emulators that do not support certain keyboard inputs: Function Scrolls through the list of SCSI IDs. Alternate: Space Enter Accepts the setting for the selected device.
  • Page 36: Using The Verify Scsi Disk Media Utility

    AHA-2940UW/OF and AHA-2944UW/OF User’s Guide Select Verify or Format. These options are explained in the following sections. Using the Verify SCSI Disk Media Utility To use the Verify [SCSI disk media] utility Select Verify. A safety prompt appears to verify the selection (Figure 3-6). -----------------------------Verify----------------------------- This drive will be scanned for media defects.
  • Page 37: Using The Format Scsi Disk Utility

    (Most SCSI disk drives are low-level formatted at the factory.) Adaptec’s Format utility is compatible with most SCSI disk drives. Use the Format utility to format hard disk drives or removable- media drives that were previously used with non-Adaptec host adapters.
  • Page 38 AHA-2940UW/OF and AHA-2944UW/OF User’s Guide A safety prompt that verifies the selection appears (Figure 3-8). ------------------------------Format------------------------------ WARNING!!! This drive is about to be low-level formatted. All data on the disk will be erased. Depending on your disk capacity, formatting may take from several seconds to several hours, and once started, cannot be aborted.
  • Page 39: A Default Device Configuration Data Settings

    Default Device Configuration Data Settings Initial Program Load Data File (ipldata.fc) 1802 1802 1802 1802 1802 1802 1802 1802 3802 3802 3802 3802 3802 3802 3802 3802 B618 5C00 0728 0800 00FF FFFF FFFF FFFF FFFF FFFF FFFF FFFF FFFF FFFF FF00 9763...
  • Page 40: Bios Control

    AHA-2940UW/OF and AHA-2944UW/OF User’s Guide Offset Bits Title Setting Value 0–15 Send Start Unit SCSI Disabled Command 0–15 Include In BIOS Scan Disabled 0–15 Report Even If Not Found 0–15 Multiple LUN Support Disabled BIOS Control Offset Bits Title Setting Value Support All Removable Drives Disabled...
  • Page 41: Host Adapter Control

    Default Device Configuration Data Settings Host Adapter Control Offset Bits Title Setting Value Automatic Cable Sensing Disabled Termination UltraSCSI Mode Disabled 2–3 SCSI Termination Enabled SCSI Parity Enabled Multiple LUN Support Disabled Reset SCSI Bus at Initialization Enabled Automatic Current Sensing Disabled Termination Host Adapter SCSI ID...
  • Page 42: Reset Initialization Default Data Adjustments

    AHA-2940UW/OF and AHA-2944UW/OF User’s Guide Reset Initialization Default Data Adjustments SCSI ID Configuration Flags Wide Bit 5 Initiate Wide SCSI Negotiation This bit is cleared (DISABLED) for SCSI IDs 0 through 7 when it has been sensed that the # input has WIDEPS been deasserted.
  • Page 43: Maximum # Of Devices

    Default Device Configuration Data Settings Maximum # of Devices Bits 0– 7 Maximum # of Devices This value, 8, is set when it has been sensed that the # input has been deasserted. WIDEPS This value, 16, is set when it has been sensed that the # input has been asserted.
  • Page 44 Downloaded from www.Manualslib.com manuals search engine...
  • Page 45 Index Device configuration 3-8 screen illustration 3-4 Advanced configuration 3-9 Device Driver AHA-2940UW/OF and installation 2-9 AHA-2944UW/OF illustrated 2-2 Autotermination settings A-4 Enable disconnection option 3-9 BIOS control settings A-2 Bus release time settings A-3 Fast-20 settings A-4 Format disk utility low-level format destroys data Caution notice, explanation of 1-3 and cannot be aborted 3-13...
  • Page 46 AHA-2940UW/OF and AHA-2944UW/OF User’s Guide Release information for device 3-2 Initial program load data Reset initialization ipldata.fc A-1 default data adjustments A-4 Initial program load data settings A-1, A-3 host adapter control A-4 BIOS control A-2 SCSI ID configuration flags A-4 Reset SCSI bus at host adapter bus release time A-3 initialization option 3-9...
  • Page 47 Index Select command 3-1 Verify SCSI disk media utility 3-12 purpose of the word 3-1 View host adapter settings 3-3 Selecting a single-chip host adapter View host adapter settings screen, to configure illustrated 3-3 with the P1275 user interface 3-1 Show-devs command 3-1 Warning notice, explanation of 1-3 Wide setting A-4...
  • Page 48 Downloaded from www.Manualslib.com manuals search engine...
  • Page 49 Downloaded from www.Manualslib.com manuals search engine...
  • Page 50 Downloaded from www.Manualslib.com manuals search engine...
