CAUTIONS:
Install the cutter and accessories securely according
to the handling instructions. If you fail to install them
properly, they may come off and cause an injury.
Be sure to unplug the power cord from the receptacle
when the cutter is checked, cleaned, and replaced.
Failure to do so can result in a serious injury.

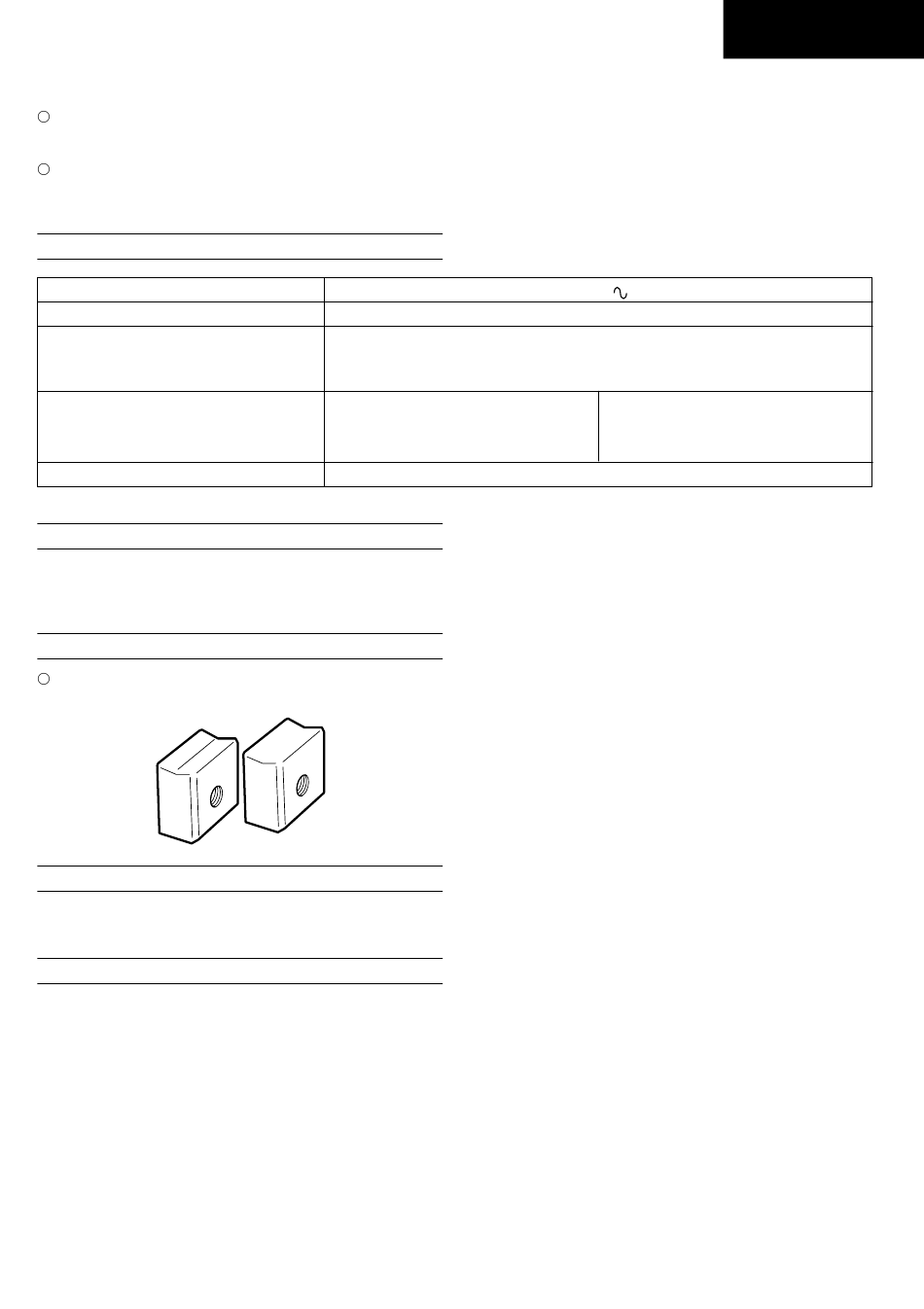

SPECIFICATIONS

Voltage
Power Input
Capacities
Number of piece(s) that
can be processed at one time
Weight

STANDARD ACCESSORIES

(1) Allen key (For M5 hexagon socket bolt)
....................................................... 1 (attached to unit)
(2) One set of cutters ......................... 1 (attached to unit)
OPTIONAL ACCESSORIES (sold separately)
Cutter
* One set containing two pieces
APPLICATIONS
(1) Cutting of rebar
(2) Bending of rebar

PRIOR TO OPERATION

WARNING!
Before use, check the following items. Concerning items
1-6, always be sure to check them before plugging the
power cord into the receptacle.
1. Power source
Ensure that the power source to be utilized conforms
to the power requirements specified on the product
nameplate.
2. Power switch
Ensure that the power switch is in the OFF position. If
the plug is connected to a receptacle while the power
switch is in the ON position, the power tool will start
operating immediately, which could cause a serious
accident.
(1) Material: Rebar, equivalent grades: GRADE 460 (Great Britain), BST
500 (Germany) and B500 (Spain).
(2) Diameter of material: 8 – 13 mm
Cutting
10 mm 1 piece
13 mm 1 piece
3. Extension cord
When the work area is removed from the power
source, use an extension cord of sufficient thickness
and rated capacity. The extension cord should be
kept as short as practicable.
CAUTION:
Damaged cord must be replaced or repaired.
4. Preparation
environment.
Check and confirm if the workplace is in proper
conditions as mentioned in the general operational
precautions item 1.
5. For safety sake, use the provided Allen key to make
absolutely sure that the hexagon socket bolt is
securely clamped. Use of the unit with the bolt in a
loosely clamped condition can result in damage to
the unit and cutter as well as accidents.
6. Confirm that the cutter is in sharp condition.
Make certain that the cutter is in a sharp condition.
Continued use of a worn out and deformed cutter
with dull edges results in damage to the unit and
cutter as well as accidents.
7. Check plug receptacle.
If a receptacle jounces or a plug comes out easily
when a power cord is plugged in, the receptacle
needs to be repaired. Consult the nearest electric
service station for repair. Continued use of the
defective receptacle can result in overheating and
accidents.
230 V
285 W
10 mm 2 pieces
13 mm 1 piece
11.5 kg (excluding cord)
and
confirmation
English
Bending
of
working
26
