How to Install

4.3.3 Terminal Locations

FASTENER TORQUE: M10 19 NM (14 FT-LB)
+DC/118
395.1 [15.56]
CH22
224.8 [8.85]
.0 [.00]
600MM CABINET
TROLLEY/
TRAVEL
U,V,W
1200MM CABINET
AFE
R,S,T
800MM CABINET
HOIST 1&2
UVW

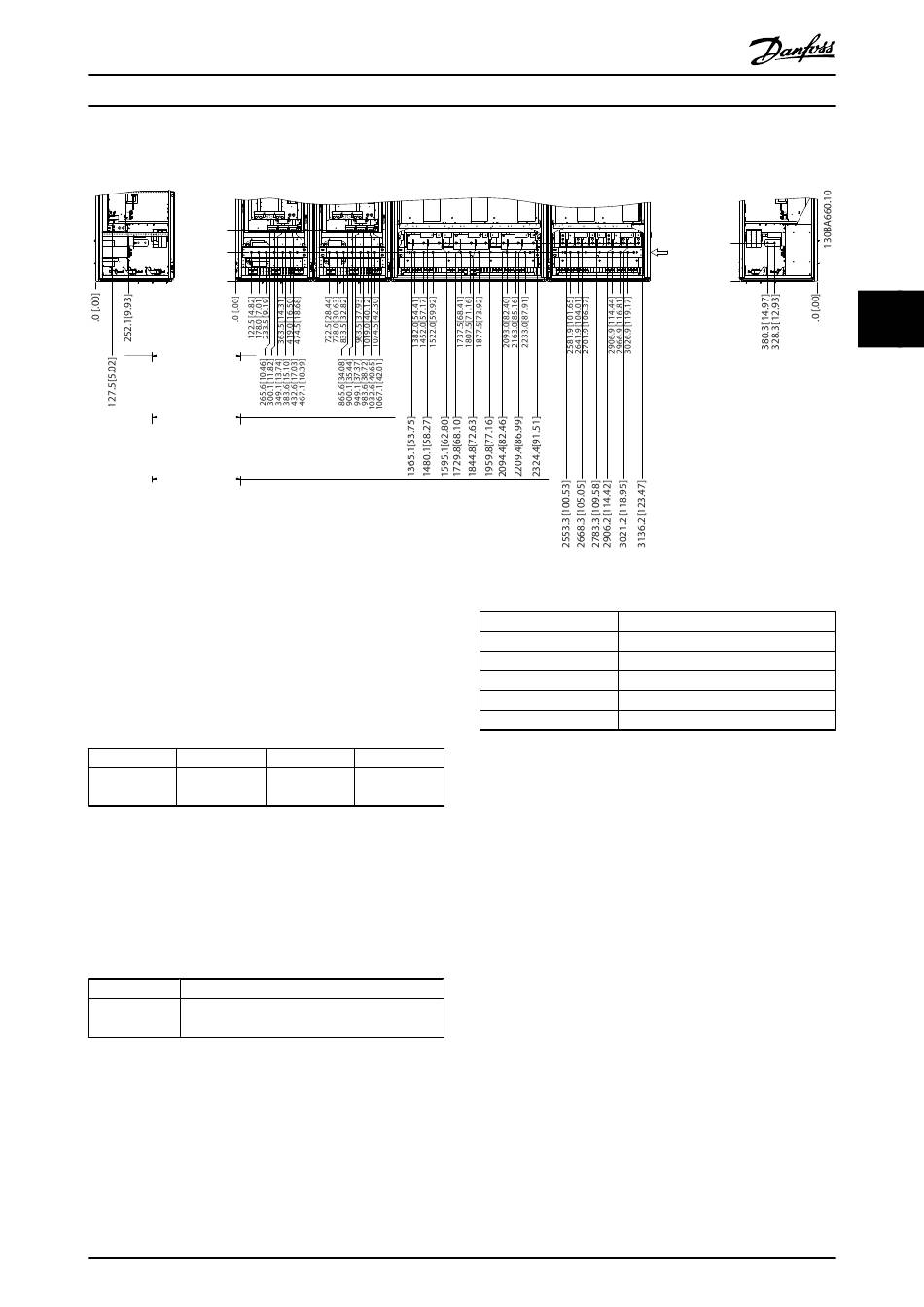

Illustration 4.8 Terminals for the Typical Crane System

4.3.4 Mains Torque

When tightening all electrical connections it is very
important to tighten with the correct torque. Too low or too
high torque results in a bad electrical connection. Use a
torque wrench.
Enclosure Terminal
D, E, F Mains,
DC bus
Table 4.2 Torque for Terminals

4.3.5 Mains Connection

Mains must be connected to terminals 91, 92 and 93. Earth/
ground is connected to the terminal to the right of terminal
93.
Terminal No. Function
91, 92, 93 Mains R/L1, S/L2, T/L3
94 Ground/Earth
®
VLT Active Front End AFE 302 Operating Instructions Liebherr
FASTENER TORQUE: M10 19 NM (14 FT-LB)
-DC/117 +DC/118 -DC/117
FASTENER TORQUE: M10 19 NM (14 FT-LB) FASTENER TORQUE: M10 19 NM (14 FT-LB)
U/T196 V/T2 97 W/T3 98 U/T196 V/T2 97 W/T3 98
FASTENER TORQUE: M10 19 Nm (14 FT-LB)
R/L1 91 S/L2 92 T/L3 93
Torque Bolt size
19Nm (168in- M10
lbs)
®
MG.33.X2.02 - VLT is a registered Danfoss trademark
FASTENER TORQUE: M10 19 Nm (14 FT-LB) FASTENER TORQUE: M10 19 Nm (14 FT-LB)
R/L1 91 S/L2 92 T/L3 93 R/L1 91 S/L2 92 T/L3 93
Power (3x525-690VAC)
Max. Cable Size (mm
P37k - P132 2x70 (2x2/0)
P160 - P315 2x150 (2x300 MCM)
P355 - P560 4x240 (4x500 MCM)
P630 - P800 8x150 (8x300 MCM)
P900 - P1M2 12x150 (12x300 MCM)
Table 4.3 Mains Cable Size
NOTE
Check the name plate to ensure that the mains voltage of
the AFE matches the power supply of the crane.
Ensure that the power supply can supply the necessary
current to the frequency converter.
Ensure that the fuses have the correct current and voltage
rating.
297.5 [11.71]
EARTH
GROUND BUS
.0 [.00]
(AFE/HOIST 1&2)
2
(AWG))
29
4 4
