3.3.4 Mains connection for B4, C1 and C3
NOTE
Frequency converter sizes differ but terminal numbers are
always the same. Incoming power is always 91, 92, 93
labeled L1, L2, L3.
95

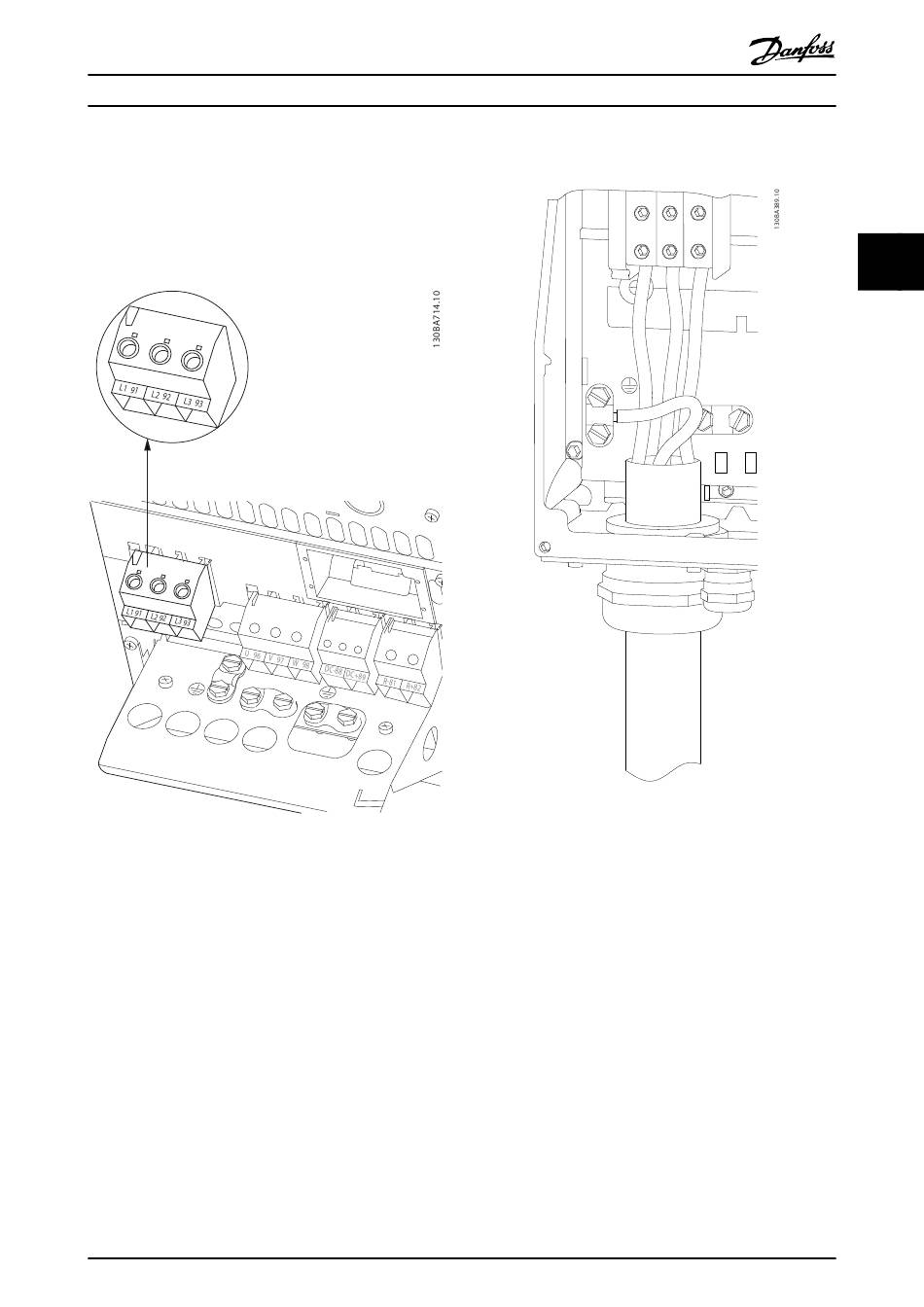

Illustration 3.9 How to Connect to Mains and Earthing for B4.
MG34M302 - VLT
®
Operating Instructions VLT
99
Illustration 3.10 How to Connect to Mains and Earthing for C1
and C2.
®
is a registered Danfoss trademark/Commercial Compressor
CDS302 and CDS303
91
92
L1
L2
95
3
93
L3
19
3
