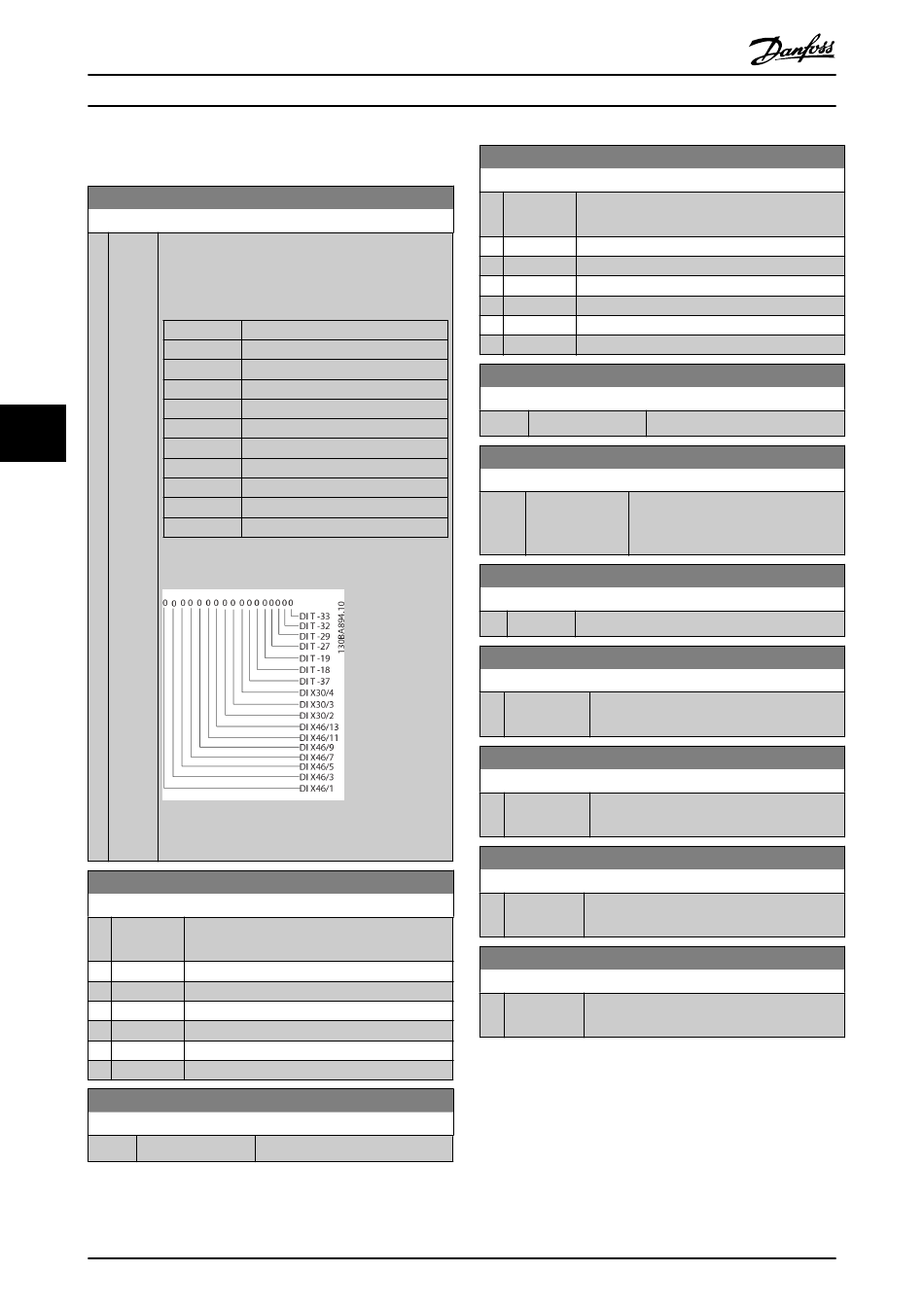

Parameter Descriptions
6.13.4 16-6* Inputs and Outputs
16-60 Digital Input
Range: Function:
0 [0 - View the signal states from the active digital inputs.
1023 ] Example: Input 18 corresponds to bit no. 5, '0' = no
*
signal, '1' = connected signal. Bit 6 works in the
opposite way, on = '0', off = '1' (safe stop input).
Bit 0
Bit 1
Bit 2
Bit 3
Bit 4
6 6
Bit 5
Bit 6
Bit 7
Bit 8
Bit 9
Bit 10-63
16-61 Terminal 53 Switch Setting
Option:
[0] Current
[1] Voltage
[2] Pt 1000 [°C]
[3] Pt 1000 [°F]
[4] Ni 1000 [°C]
[5] Ni 1000 [°F]
16-62 Analog Input 53
Range:
0.000 [-20.000 - 20.000 ]
*
104
Digital input term. 33
Digital input term. 32
Digital input term. 29
Digital input term. 27
Digital input term. 19
Digital input term. 18
Digital input term. 37
Digital input GP I/O term. X30/4
Digital input GP I/O term. X30/3
Digital input GP I/O term. X30/2
Reserved for future terminals
Table 6.15
Illustration 6.22
Function:
View the setting of input terminal 53. Current =
0; Voltage = 1.
Function:
View the actual value at input 53.
MG34M302 - VLT
®
Operating Instructions VLT CDS302 and CDS303
16-63 Terminal 54 Switch Setting
Option:
[0] Current
[1] Voltage
[2] Pt 1000 [°C]
[3] Pt 1000 [°F]
[4] Ni 1000 [°C]
[5] Ni 1000 [°F]
16-64 Analog Input 54
Range:
0.000
*
16-65 Analog Output 42 [mA]
Range:
0.000
*
16-66 Digital Output [bin]
Range:
0 [0 - 15 ]
*
16-67 Pulse Input #29 [Hz]
Range:
0 [0 - 130000 ] View the actual frequency rate on terminal
*
16-68 Freq. Input #33 [Hz]
Range:
0 [0 - 130000 ] View the actual value of the frequency
*
16-69 Pulse Output #27 [Hz]
Range:
0 [0 - 40000 ] View the actual value of pulses applied to
*
16-70 Pulse Output #29 [Hz]
Range:
0 [0 - 40000 ] View the actual value of pulses at terminal 29
*
®
is a registered Danfoss trademark/Commercial Compressor
Function:
View the setting of input terminal 54. Current =
0; Voltage = 1.
Function:
[-20.000 - 20.000 ] View the actual value at input 54.
Function:
[0.000 - View the actual value at output 42 in
30.000 ] mA. The value shown reflects the
selection in 6-50 Terminal 42 Output.
Function:
View the binary value of all digital outputs.
Function:
29.
Function:
applied at terminal 33 as an impulse input.
Function:
terminal 27 in digital output mode.
Function:
in digital output mode.
