3.1 Assembly Group Wheels

3.1.5 Camber

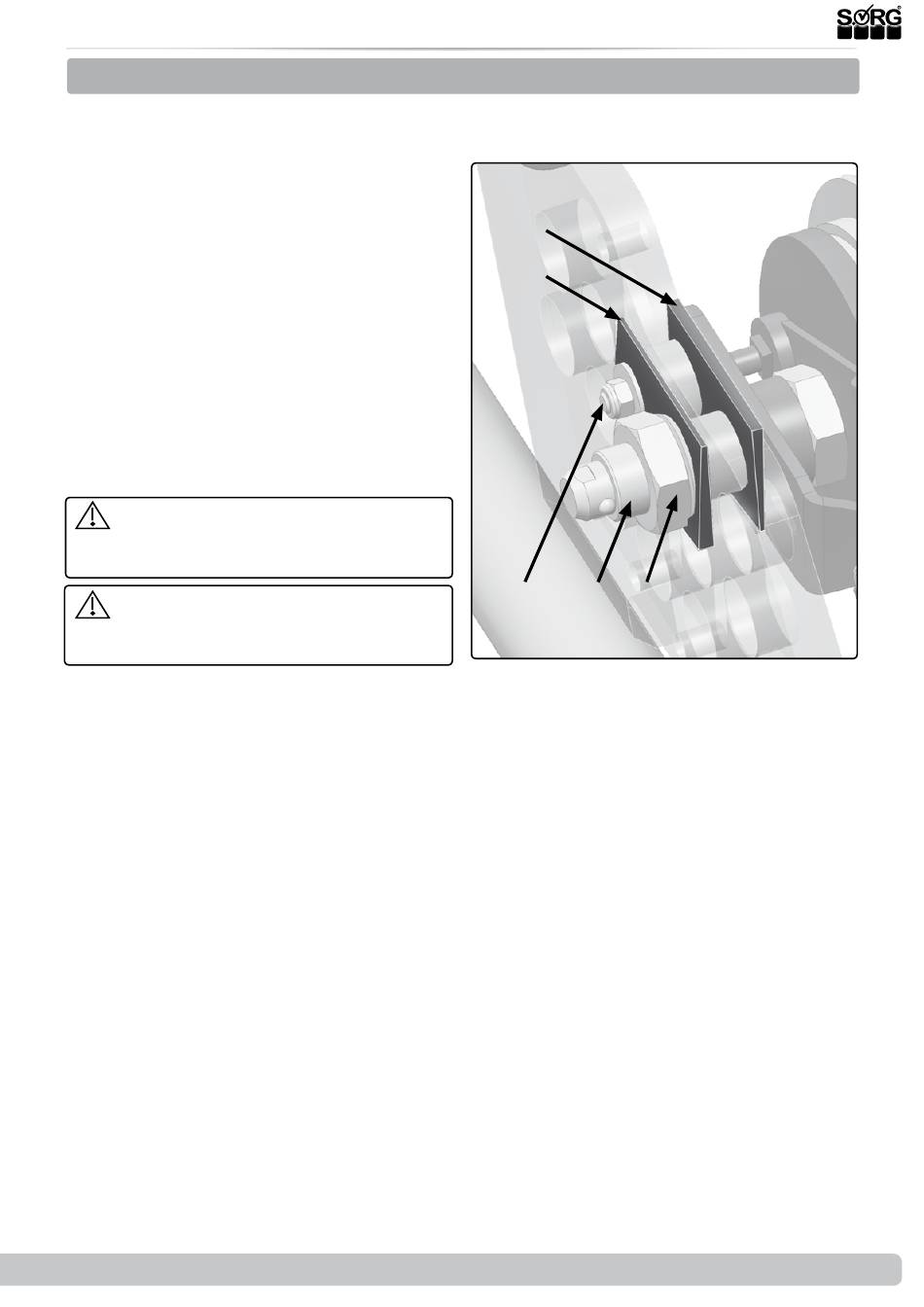

To change the camber with a wheel base extension, please proceed as described here.
Changing the camber subsequently:
• (2) remove the rear wheels,
• remove the hexagon nut (A) of the
quick-release axle fitting (B),
• remove the nut (C) from the drum brake
arm including the inner surface shell.
• Place both camber adaptors (D+E) in
front of the position wanted: (D) thick
end down; (E) thick end up-
• Fixate both with the fitting (B) and the
shell from the drum brake spacer in the
new position,
• replace the hexagon nut (A) and tighten
it,
• replace the nut (C) of the drum brake
arm and tighten it.
Be sure that the drum brake functions
properly and if necessary, establish its func-
tionality (see drum brake).
Correct the position of the knee lever
brake an be sure that it functions properly
(see knee lever brake).
2019-08-15
(2)
(E)
(D)
(C)
Service Record Loop
SORG
(B) (A)
11 of 44
