3.1 Assembly Group Wheels

3.1.5 Replacing/ displacing the caster adapters and casters

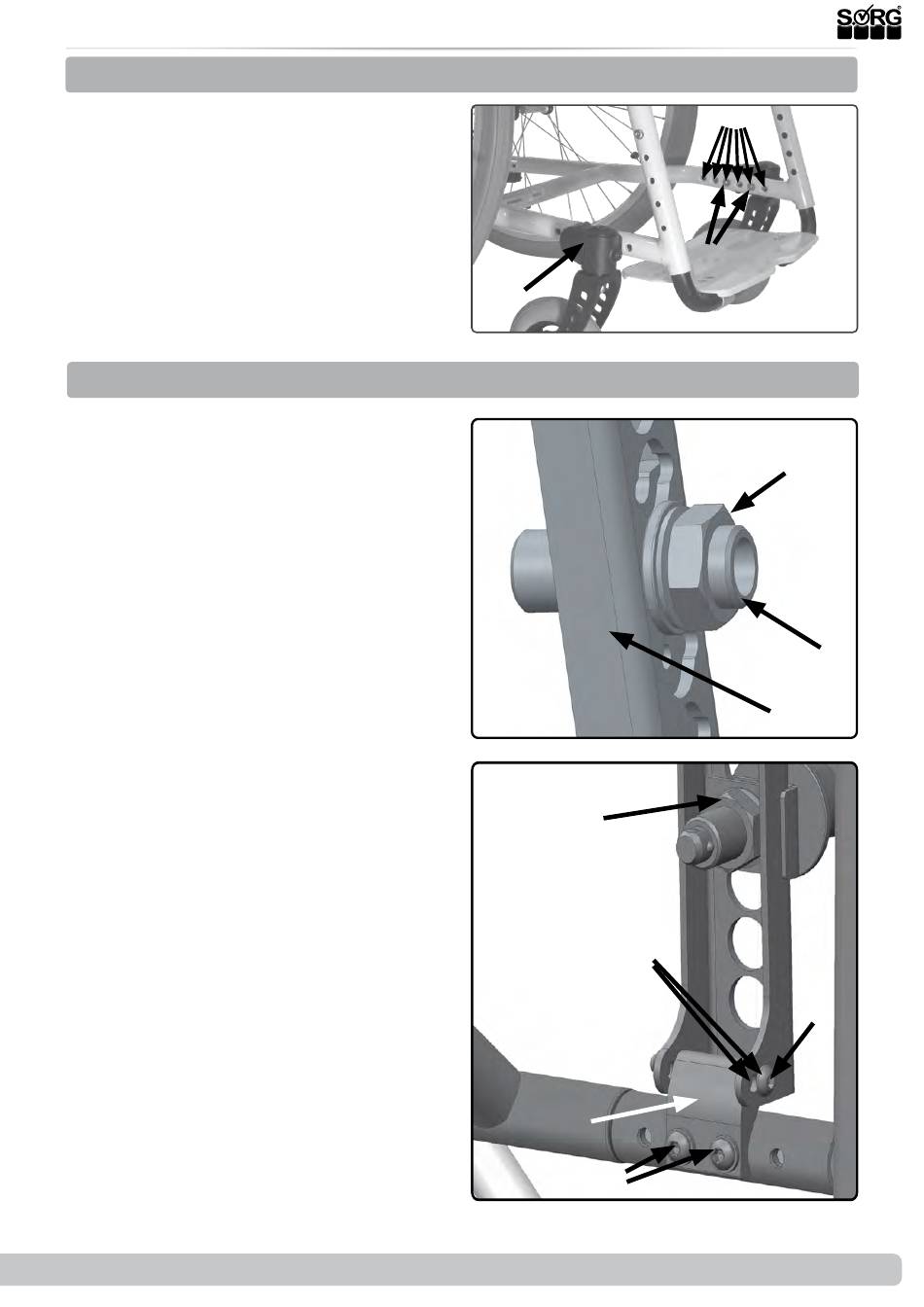

• (1) Remove the caps (A) on both sides,
• remove all screws (B) on both sides
• and remove also the distance pieces, if
necessary.
• Replace the caster adapters with new
ones and/or displace them in the alter-
native holes (C).
• Replace all screws (if necessary also the
distance

3.1.6 Camber

Through the camber you influence:
• the side tilt stability,
• the shoulder rear wheel position and
• the track width of the wheelchair.
(2) To avoid the so called "eraser effect" we
generally mount the fitting track balance ex-
works (A). With a change of the camber after-
wards, the track balance adapter (A) must be
replaced by one that fits (spare part).
With a camber of 8° a distance block to the
wheelbase extension is necessary (spare part).
Adjusting the camber
• (3) Remove the rear wheels,
• remove screws (A) and move them in
the alternative holes (B),
• retighten the screws.
For a camber of 8°:
• (3+1 next page) remove the screws
(A),
• remove the screws (C),
• move the perforated plate holder (D) by
turning it 180° on the outer part of the
frame tube,
• replace the screws (C) and tighten
them,
• replace the perforated plate with the
screws (A) and tighten them.
The setting may not be possible if you wish
to widen the seat, being that then you would
have to turn the quick-release axle fittings too
far out of the perforated plate.
Check/correct the distance of the rear wheel to
the side guard and skirt guard by attaching the
rear wheel.
2022-12-19
(1)
(A)
(2)
(3)
Service Record Vector & Vector BSA
(C)
(B)
(E)
(B)
(D)
(C)
(B)
(C)
(A)
(A)
11 of 40
