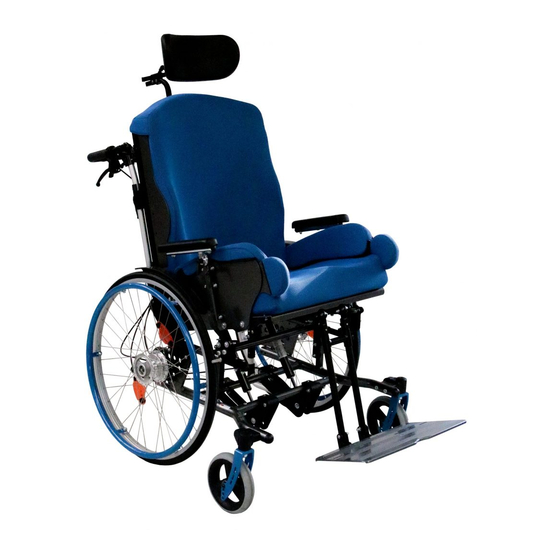

SORG Loop RS Service Record

Hide thumbs Also See for Loop RS:
Table of Contents

Advertisement

Quick Links

Download this manual

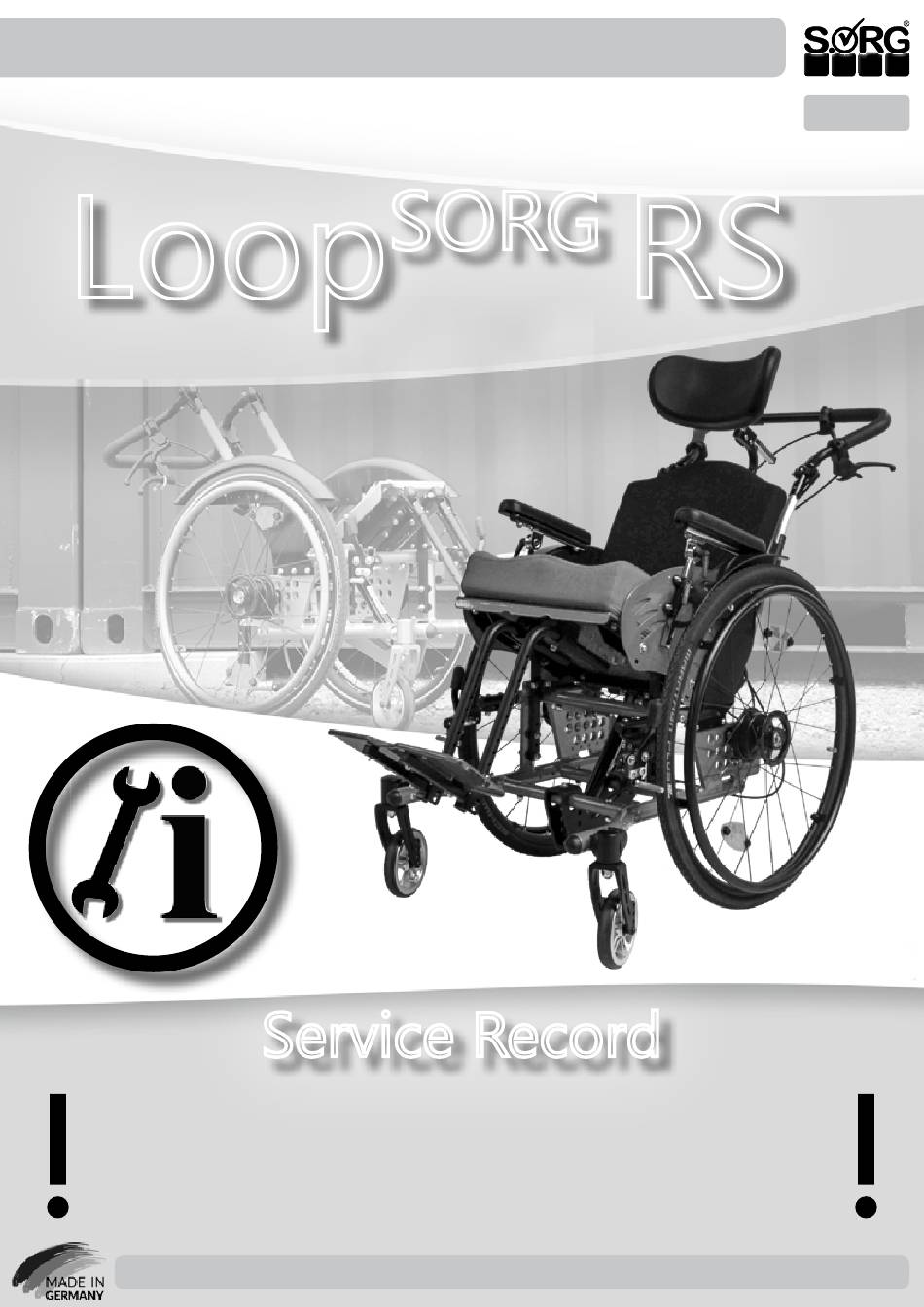

Service Record Loop
RS
SORG
ENG
Loop
RS
SORG
Service Record
In the following all individual adjustments of the wheelchair are
described. These adjustments require tools and specialised
knowledge. Please leave the adjustments to a qualified rehab
consultant.
2019-07-16
Service Record Loop
Besondere Menschen, besondere Lösungen.
Besondere Menschen, besondere Lösungen.
RS
1 of 40
SORG

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Loop RS and is the answer not in the manual?

Questions and answers

Related Manuals for SORG Loop RS

Summary of Contents for SORG Loop RS

  • Page 1 Service Record Loop SORG Loop SORG Service Record In the following all individual adjustments of the wheelchair are described. These adjustments require tools and specialised knowledge. Please leave the adjustments to a qualified rehab consultant. 2019-07-16 Service Record Loop Besondere Menschen, besondere Lösungen.
  • Page 2 All texts, pictures and graphics underlie co- pyright protection. All rights, including co- pying, publishing, editing and translating, remain reserved. © by SORG Rollstuhltech- nik GmbH+Co. KG Benzstraße 3-5, 68794 Oberhausen-Rhein hausen / Germany. Our terms and conditions can be found on our order forms and at www.sorgrollstuhl-...

  • Page 3: Table Of Contents

    3.6.1 Replace 3.7 Assembly Group Brakes 3.7.1 Trum brake 3.7.2 Cable brake 3.7.3 Mounting a knee lever brake 3.8 Assembly Group Frame equipment 3.8.1 Anit-tipper 3.8.2 Tipping lever 3.8.3 Outdoor Front End 2019-07-16 Service Record Loop 3 of 40 SORG...
  • Page 4 4 of 40 Service Record Loop 2019-07-16 SORG...

  • Page 5: Wheelchair Overview

    15 Eccentric tensioner for angle adjustment of the push handle 16 wheel cover 17 rear wheel 18 Triggering for adjustment of the back angle 19 Side guard 20 brake lever 21 caster 20 21 2019-07-16 Service Record Loop 5 of 40 SORG...

  • Page 6: General Information

    • Phillips screw driver • flat head screw driver • plastic mallet • side cutter • threadlocker (fluid) • bicycle inner tube repair kit • work bench/jaw vise with rubber pads 6 of 40 Service Record Loop 2019-07-16 SORG...

  • Page 7: Explanation Of Symbols

    Turn counter-clockwise view from the back steps to be done at the same time fasten parts steps to be done after each other remove parts steps to be done on both sides 2019-07-16 Service Record Loop 7 of 40 SORG...

  • Page 8: General Safety Instructions

    In combination of wheelchair and electric auxiliary drive, certain strains can occur which can lead to damage to the wheelchair. Slowly approach obstacles and carefully overcome them so that little force is applied to the caster, driving wheel and wheelchair as a whole. 8 of 40 Service Record Loop 2019-07-16 SORG...
  • Page 9 2019-07-16 Service Record Loop 9 of 40 SORG...

  • Page 10: Assembly Groups

    3.1.1 Position rear wheel After changing the position, check the tilt stability of the Loop RS with the patient at SORG full tilt and, if necessary, modify the position! (1+2) The position of the drive wheels is ad- +20/ justed depending on the desired seat height.

  • Page 11: Displacing The Wheels Without A Camber Adapter (20",22",24")

    (C) from the spacer. The Camber adapters must always be mounted opposite. At 0°: inner surface= thick end facing up. Correct the position of the knee lever and be sure that it functions properly. 2019-07-16 Service Record Loop 11 of 40 SORG...

  • Page 12: 12"-Wheels

    1° wedge disc lever brake and restore it if necessary. 1°** **if necessary assemble 2 disc sets (2x inner disc moun- ted inside, 1x outer disc + 1x inner disc mounted out- side) 12 of 40 Service Record Loop 2019-07-16 SORG...
  • Page 13 (tightening torque of nuts M18 fitting 35 Nm). Be sure to check the functionality of the knee lever brake and adjust if necessary. Please note the colored discs for the correct adjustment of the camber. 2019-07-16 Service Record Loop 13 of 40 SORG...
  • Page 14 1° For the steering and pushing aid, at least the 0.5 ° track disc must always be mounted (except for a camber of 0 ° in which no track disc is used). 14 of 40 Service Record Loop 2019-07-16 SORG...

  • Page 15: Caster

    • and tighten the screws (A) again. Depending on the size of the new steering wheel, the steering wheel fork may need to be replaced as well. 2019-07-16 Service Record Loop 15 of 40 SORG...

  • Page 16: Assembly Group Frame

    (see chapter "Brakes"). The steering wheels must be mounted in the new position as the frame bow is con- nected to the frame with the screws (H) for the steering wheel adapter. 16 of 40 Service Record Loop 2019-07-16 SORG...

  • Page 17: Frame Extension

    (for ERGO back: screw on the cen- ter of the spine symmetrically). The trusses must be offset at the same distance on both sides. 2019-07-16 Service Record Loop 17 of 40 SORG...

  • Page 18: Assembly Group Seat

    Loop- SORGRS must be retested and practiced with the help of an experienced, strong helper. If the Loop RS is equipped with two gas SORG pressure springs, proceed analogously. 18 of 40 Service Record Loop 2019-07-16...

  • Page 19: Vertical Displacement Of The Seat Plate

    After any change to the seat unit and / or tipping, the tipping behavior of the Loop- RS must be retested and practiced with SORG the help of an experienced, strong helper. If you do not move the seat assembly in parallel with the gas spring, the result is a different tilt path and a different seat angle.

  • Page 20: Double Gas Spring

    2. move the already available gas spring, 3. take off frame half, 4. attach new gas spring adapter, 5. put frame back together, 6. mount the top adapter under the seat plate, 20 of 40 Service Record Loop 2019-07-16 SORG...
  • Page 21 (C) to the upper receptacle (A). Step 8: Fit new gas spring down • (2) Screw the gas spring into the lower holes with the screw (A) into the prepa- red hole (B). 2019-07-16 Service Record Loop 21 of 40 SORG...
  • Page 22 • (3) fold the back of the • Loop RS forward and around SORG • In addition, push the push bar forward toward the legrest (see illustration) to get the maximum length for the Bow- den cable. •...
  • Page 23 Set your back up. After any change to the seat unit and / or tipping, the tipping behavior of the Loop- RS must be retested and practiced with SORG the help of an experienced, strong helper. (B) (C) 2019-07-16 Service Record Loop...

  • Page 24: Assembly Group Back

    Remove the 4 screws (1A) on both sides • and move the back tubes (1B) upwards. • Insert the 4 screws (1A) into the new holes (1C) • and retighten all screws (1A). 24 of 40 Service Record Loop 2019-07-16 SORG...

  • Page 25: Assembly Group Leg Support

    After every change on the leg support be sure to make sure that the casters can free- ly turn 360° by maximum tilting. If necessary, make corrections on the casters or on the leg support. 2019-07-16 Service Record Loop 25 of 40 SORG...

  • Page 26: Leg Supports: Standard Or Angle Adjustable

    • retighten the lock nut (A). Both adjusting screws must fit close to the tubes (C) when the footrest/s is/are in use. Avoid an uneven fitting position of the adjusting screws. 26 of 40 Service Record Loop 2019-07-16 SORG...

  • Page 27: Leg Supports Which Swing To The Side

    • (5) To do fine adjustments on the locking claw (A) • loosen the nuts (B) on the bottom, • move the holder (C) until the footrest closes. • Retighten the nuts. 2019-07-16 Service Record Loop 27 of 40 SORG...

  • Page 28: Multidirectional Leg Support

    To move the calf rest in its holder (C) loosen both screws (D) (the second one is not visible here), • move the calf rest to the desired positi- • and tighten the screw (D) again. 28 of 40 Service Record Loop 2019-07-16 SORG...

  • Page 29: Assembly Group Side Guard

    Remove the drive wheels on both sides, • loosen the screws (A) on the side guard, • remove the side guard (B), • insert the new side panel • and tighten the screws again. 2019-07-16 Service Record Loop 29 of 40 SORG...

  • Page 30: Assembly Group Brakes

    • retighten the lock nut (B). Possible impairments of the brake force can occur from: wrongfully adjusted traction of the Bowden cables, defected Bowden cable, dirty brake pads/brake shoes. 30 of 40 Service Record Loop 2019-07-16 SORG...

  • Page 31: Cable Brake

    Insert the screw (B) into one of the holes (C), • turn the screw (B) tightly and • Adjust the braking force by means of the screws (D) on the brake body as described above. 2019-07-16 Service Record Loop 31 of 40 SORG...

  • Page 32: Assembly Group Frame Equipment

    Guide the tipping lever (A) in the right or left frame pipe, • place the self-locking nuts (B) as well as the saddle washer and locking washer in the holes • and tighten the nuts (B). 32 of 40 Service Record Loop 2019-07-16 SORG...

  • Page 33: Outdoor Front End

    The screw pairs (A) and (B) must be moved parallel and symmetrical. There must be at least one hole free between the screws of each screw pair The tilting behavior changes crucially when using the outdoor front end and must be practiced! 2019-07-16 Service Record Loop 33 of 40 SORG...
  • Page 34 34 of 40 Service Record Loop 2019-07-16 SORG...

  • Page 35: Repairs And Maintenance

    Adjust seat tilt to 90° (if available) • If necessary, pack removable textile parts in foil or similar • Secure the wheelchair from rolling away and getting dirty • Store in a dry environment without aggressive environmental influences. 2019-07-16 Service Record Loop 35 of 40 SORG...

  • Page 36: Reinstatement

    (if available) Clean the wheelchair and oil all moving parts. If you notice any defects during maintenance, please contact your specialist retailer im- mediately and do not use the wheelchair anymore. 36 of 40 Service Record Loop 2019-07-16 SORG...
  • Page 37 Locking mechanisms (tripod springs of push handles, quick-release axles, eccentric clamps, etc.) checked for functionality, anti-tipper checked for firm fit and fuctionality. Oiling: moving parts and bearings oiled Final check: functional check of all mechanical adjusting devices carried out. 2019-07-16 Service Record Loop 37 of 40 SORG...

  • Page 38: Technical Specifications

    5 Technical specifications 5.1 Data and measurements Model: Loop SORG German Aid Indix Nr.: 18.50.03.2001 Type: 803 All measurements ± 5% Comment Indication Measurements seat width (SW) 20-mm-steps 300 to 480 mm +40 mm growable seat depth (SD) 20-mm-steps 300 to 480 mm ±...

  • Page 39: Meaning Of Labels

    5.2 Meaning of labels The meaning of the individual labes is explained in the texts at the respective place. If the type plate is damaged or gets lost, a new one can be ordered from SORG Rollstuhltechnik. Type plate: manufacturer logo...
  • Page 40 Service Record Loop SORG SORG Rollstuhltechnik GmbH + Co. KG Benzstraße 3-5 68794 Oberhausen-Rheinhausen Germany Fon +49 7254 9279-0 Fax +49 7254 9279-10 info@sorgrollstuhltechnik.de www.sorgrollstuhltechnik.de company stamp...
